In-plane thermal conductivity measurement
Experimentalist, Unknown
Date of measurement, 2/12/20
Apparatus, InPlane
Material, INPL12
Sample, 2
Length (mm), 8.1, 0.05
Width (mm), 50, 0.05
Thickness (mm), 3.75, 0.05
Heater Voltage (V), 5.6
Cooler Voltage (V), 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 23.8665, 23.7404, 23.6569, 23.5865, 23.51, 23.4156
Cold Fluxmeter Temperatures (C), 6.86984, 6.61276, 6.49662, 6.47718, 6.3792, 6.23825
Hot Fluxmeter Temperature Uncertainties (C), 0.00528668, 0.00557707, 0.00595422, 0.00545014, 0.00496524, 0.0057031
Cold Fluxmeter Temperature Uncertainties (C), 0.00478284, 0.00381404, 0.00365027, 0.00394963, 0.00363304, 0.00374611
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.124237, -0.210053, -0.259811, -0.346722, -0.427715
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.25927, -0.374741, -0.397633, -0.487779, -0.635155
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00592381, 0.00577678, 0.00454944, 0.00560052, 0.00604936
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00656447, 0.00355214, 0.00507138, 0.00582508, 0.00376818

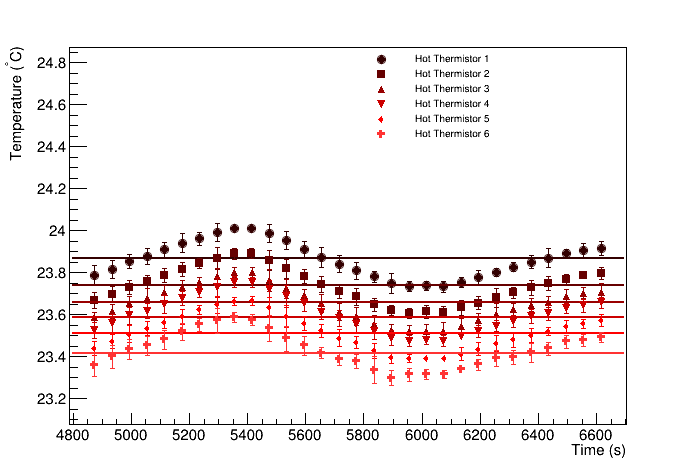

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 10/23/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 3689.99 +/- 147.287
Cold fluxmeter flux (W/m^2), 5347.27 +/- 211.85
Heat flux through sample (W/m^2), 4518.63 +/- 838.623
Heat flow through sample (W), 1.45992 +/- 0.270949
Temperature at hot end of sample (C), 23.3255 +/- 0.023886
Temperature at cold end of sample (C), 6.92895 +/- 0.0152543
deltaT (C), 16.3965 +/- 0.0283414
R (K/W), 11.2311, 2.0845
RA (Km^2/W), 0.00210584, 0.000391857

Hot flux meter fit	Cold flux meter fit

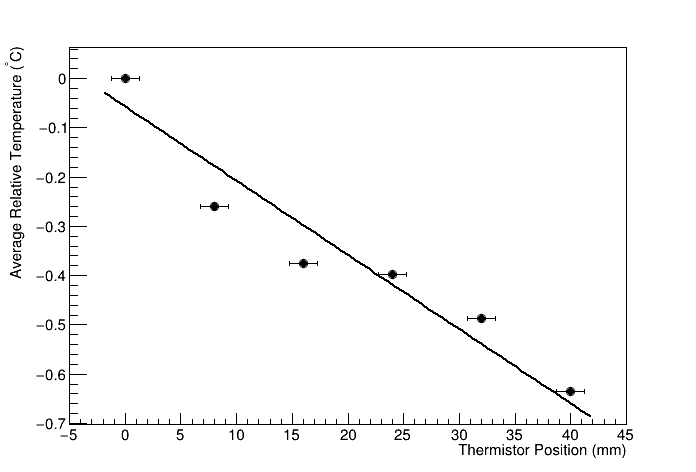

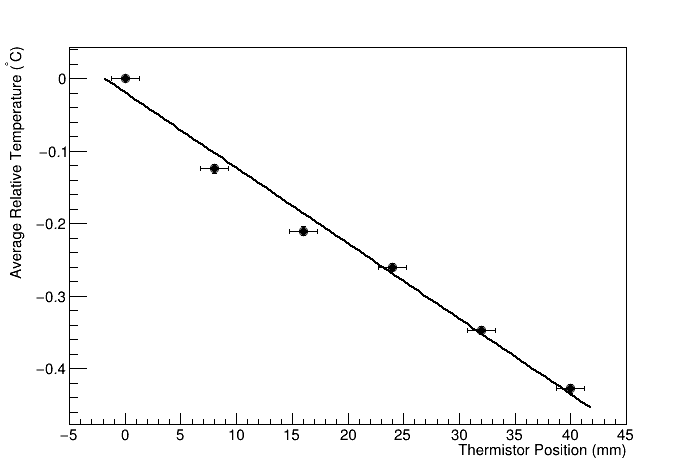

Hot flux meter difference fit	Cold flux meter difference fit
