In-plane thermal conductivity measurement
Experimentalist, Unknown
Date of measurement, 1/27/20
Apparatus, InPlane
Material, INPL11
Sample, 5
Length (mm), 55.2, 0.05
Width (mm), 50, 0.05
Thickness (mm), 3.56, 0.05
Heater Voltage (V), 10.3
Cooler Voltage (V), 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 22.4241, 22.0133, 21.6682, 21.2754, 20.8763, 20.4797
Cold Fluxmeter Temperatures (C), 13.5695, 13.1142, 12.7112, 12.3584, 11.9425, 11.5123
Hot Fluxmeter Temperature Uncertainties (C), 0.00557941, 0.00602114, 0.0069138, 0.00550561, 0.00525924, 0.00586513
Cold Fluxmeter Temperature Uncertainties (C), 0.00540984, 0.0050277, 0.00469258, 0.00460435, 0.00464699, 0.00429544
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.42165, -0.775529, -1.15964, -1.55119, -1.94823
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.460912, -0.864104, -1.22087, -1.63475, -2.0712
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00665577, 0.00657055, 0.00583475, 0.00632343, 0.00525364
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00814905, 0.00322333, 0.00663983, 0.00575825, 0.00443287

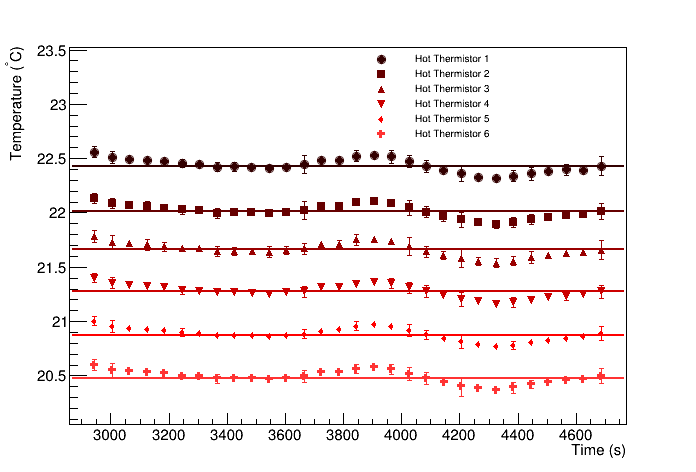

Heater Thermistors	Cooler Thermistors

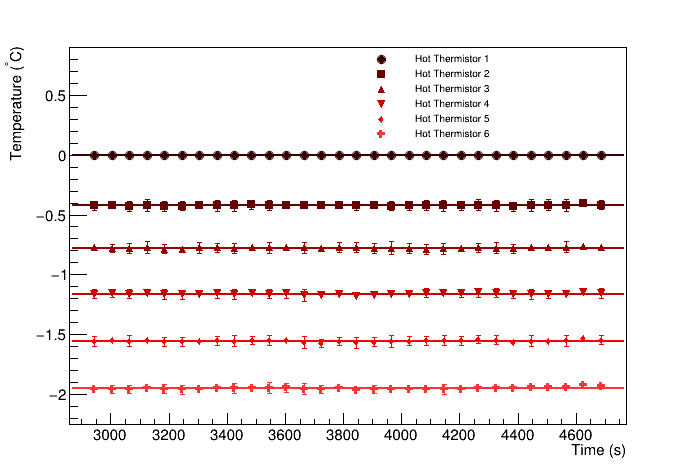

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 10/22/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 17140.7 +/- 652.431
Cold fluxmeter flux (W/m^2), 18069.4 +/- 687.672
Heat flux through sample (W/m^2), 17605.1 +/- 663.511
Heat flow through sample (W), 5.68799 +/- 0.214373
Temperature at hot end of sample (C), 20.103 +/- 0.0990421
Temperature at cold end of sample (C), 13.9515 +/- 0.0491591
deltaT (C), 6.15149 +/- 0.110571
R (K/W), 1.08149, 0.0451581
RA (Km^2/W), 0.000192505, 8.48286e-06

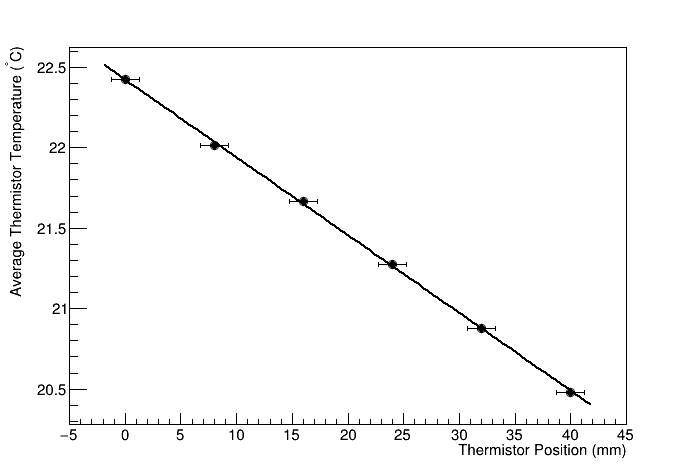

Hot flux meter fit	Cold flux meter fit

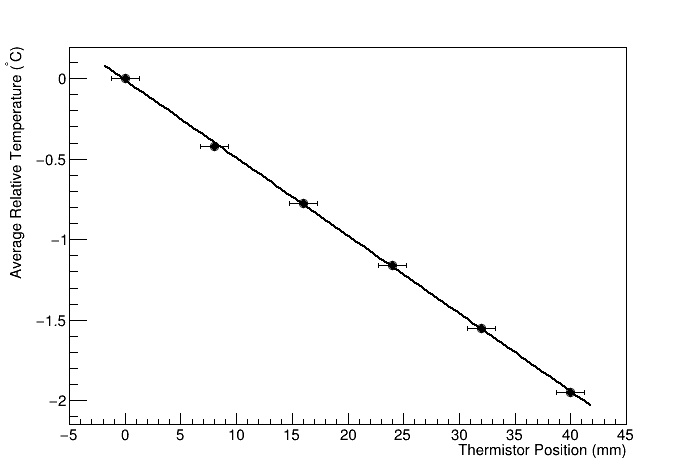

Hot flux meter difference fit	Cold flux meter difference fit
