In-plane thermal conductivity measurement
Experimentalist, Unknown
Date of measurement, 2/14/20
Apparatus, InPlane
Material, INPL11
Sample, 4
Length (mm), 45.2, 0.05
Width (mm), 50, 0.05
Thickness (mm), 3.56, 0.05
Heater Voltage (V), 10.3
Cooler Voltage (V), 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 22.8908, 22.4541, 22.0965, 21.64, 21.2226, 20.7843
Cold Fluxmeter Temperatures (C), 13.93, 13.4206, 12.9757, 12.607, 12.1481, 11.699
Hot Fluxmeter Temperature Uncertainties (C), 0.00573026, 0.00595884, 0.00679058, 0.00498199, 0.00459027, 0.00534761
Cold Fluxmeter Temperature Uncertainties (C), 0.00538044, 0.00432747, 0.00408366, 0.00394785, 0.00385609, 0.00381453
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.46444, -0.837965, -1.283, -1.70373, -2.13755
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.504249, -0.951486, -1.32028, -1.7774, -2.22914
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00562107, 0.00557429, 0.00564031, 0.00609742, 0.00530956
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00730683, 0.00355196, 0.00564237, 0.005949, 0.00414208

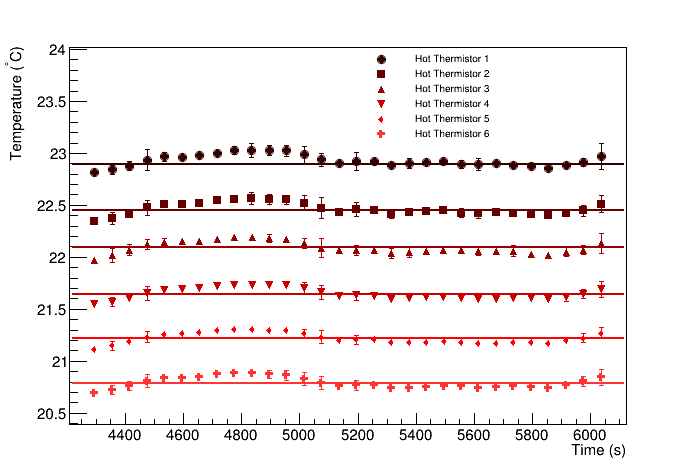

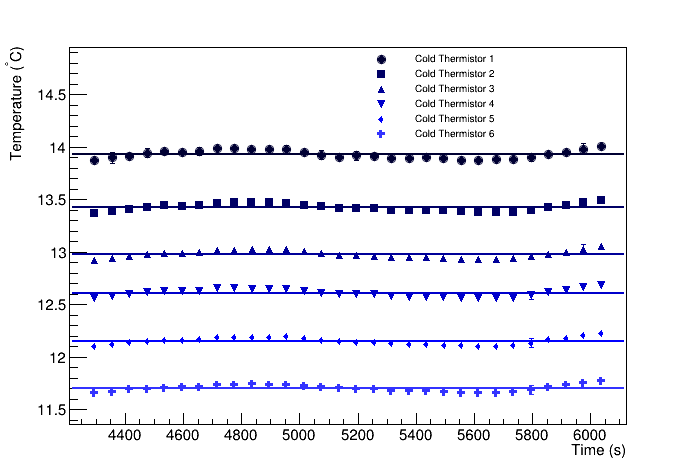

Heater Thermistors	Cooler Thermistors

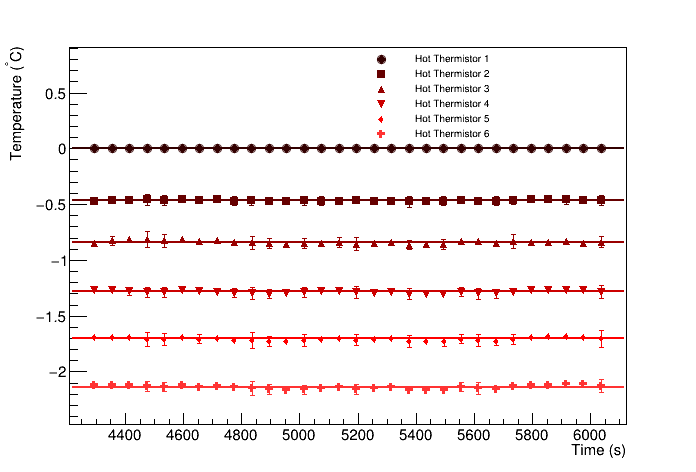

Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 10/22/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 18837.8 +/- 716.597
Cold fluxmeter flux (W/m^2), 19470.6 +/- 740.697
Heat flux through sample (W/m^2), 19154.2 +/- 604.676
Heat flow through sample (W), 6.18849 +/- 0.195364
Temperature at hot end of sample (C), 20.3786 +/- 0.107464
Temperature at cold end of sample (C), 14.3331 +/- 0.0532788
deltaT (C), 6.04549 +/- 0.119947
R (K/W), 0.976892, 0.0364244
RA (Km^2/W), 0.000173887, 6.93045e-06

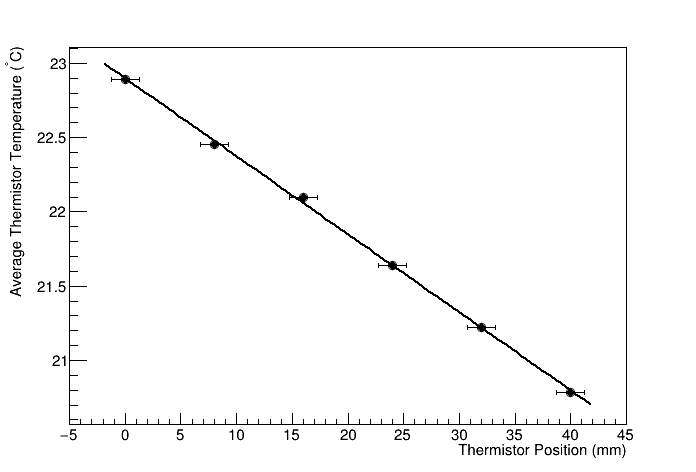

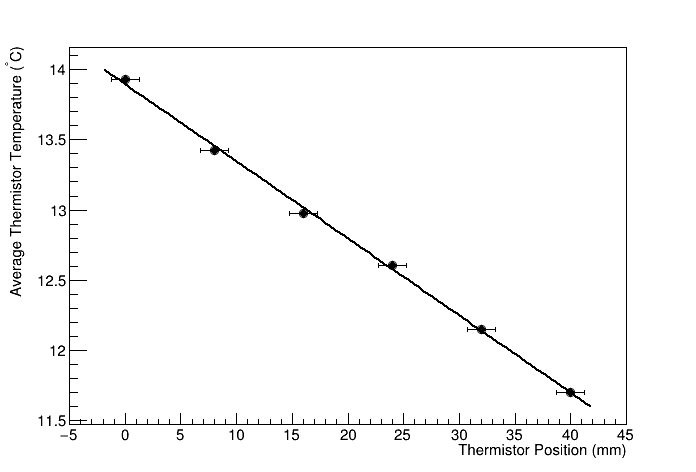

Hot flux meter fit	Cold flux meter fit

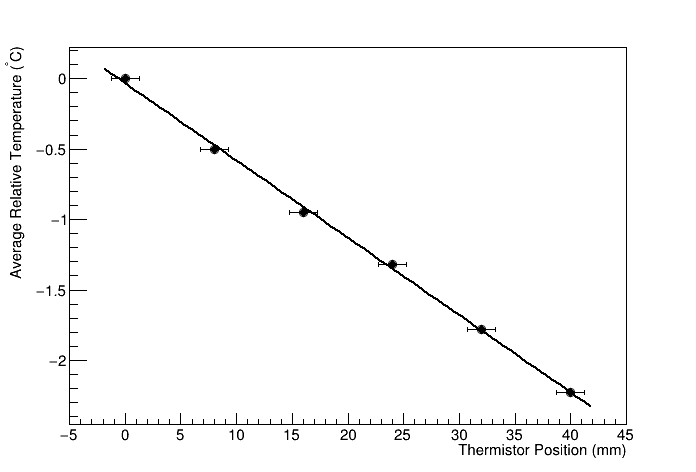

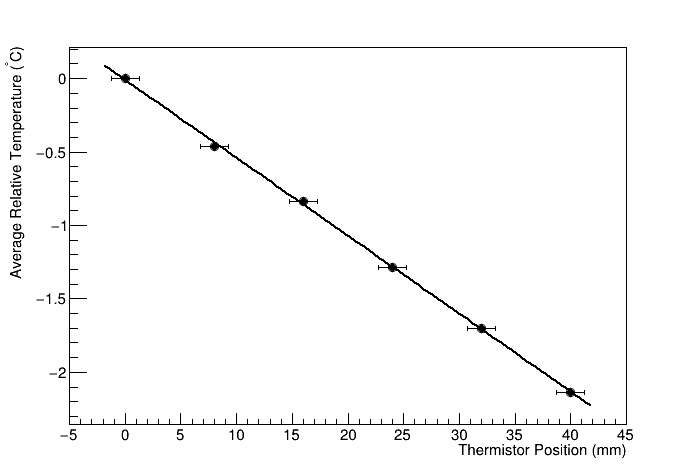

Hot flux meter difference fit	Cold flux meter difference fit
