In-plane thermal conductivity measurement
Experimentalist, Unknown
Date of measurement, 1/27/20
Apparatus, InPlane
Material, INPL11
Sample, 3
Length (mm), 35.3, 0.05
Width (mm), 50, 0.05
Thickness (mm), 3.56, 0.05
Heater Voltage (V), 10.3
Cooler Voltage (V), 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 21.5757, 21.1225, 20.7388, 20.3067, 19.8828, 19.4425
Cold Fluxmeter Temperatures (C), 13.329, 12.8291, 12.388, 11.9984, 11.5428, 11.083
Hot Fluxmeter Temperature Uncertainties (C), 0.00660825, 0.00635143, 0.00753252, 0.00573129, 0.00535621, 0.0059942
Cold Fluxmeter Temperature Uncertainties (C), 0.00504339, 0.00498088, 0.00434279, 0.0047842, 0.00444825, 0.00446693
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.460564, -0.841201, -1.27738, -1.70084, -2.13643
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.500113, -0.934609, -1.32585, -1.78182, -2.24474
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00691464, 0.00674642, 0.00666734, 0.00702089, 0.00615844
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00775062, 0.00321047, 0.00657356, 0.00548302, 0.00527604

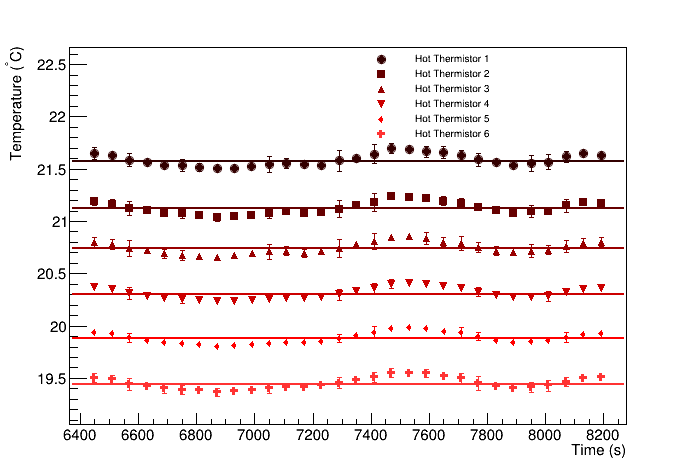

Heater Thermistors	Cooler Thermistors
Heater Thermistors relative to hottest thermistor	Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 10/22/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 18821.6 +/- 716.515
Cold fluxmeter flux (W/m^2), 19621.2 +/- 746.545
Heat flux through sample (W/m^2), 19221.4 +/- 653.855
Heat flow through sample (W), 6.21021 +/- 0.211253
Temperature at hot end of sample (C), 19.0293 +/- 0.108473
Temperature at cold end of sample (C), 13.7443 +/- 0.0537141
deltaT (C), 5.28495 +/- 0.121043
R (K/W), 0.85101, 0.0348989
RA (Km^2/W), 0.00015148, 6.56798e-06

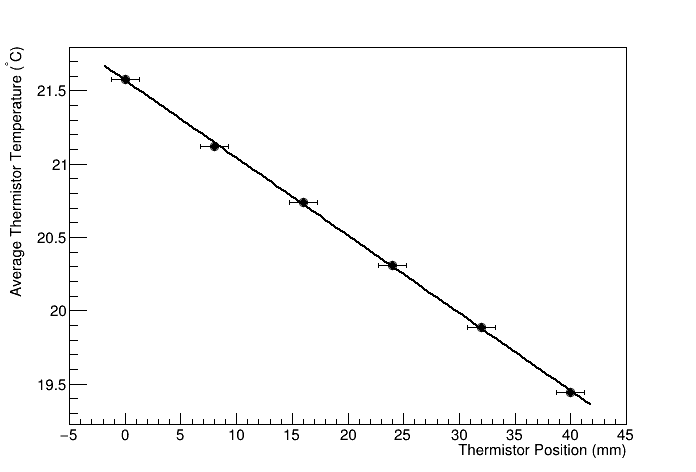

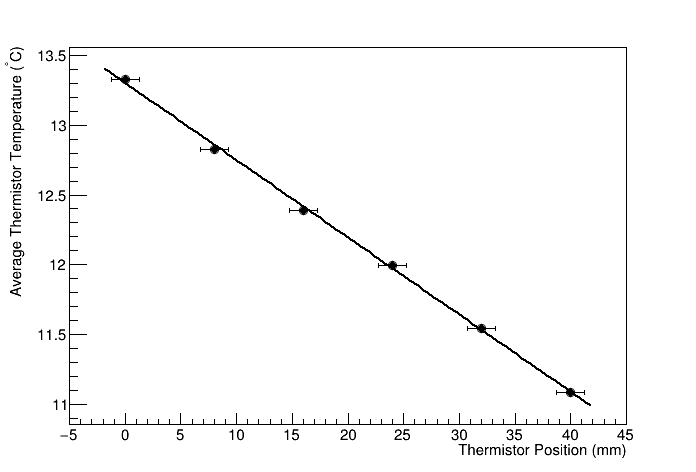

Hot flux meter fit	Cold flux meter fit

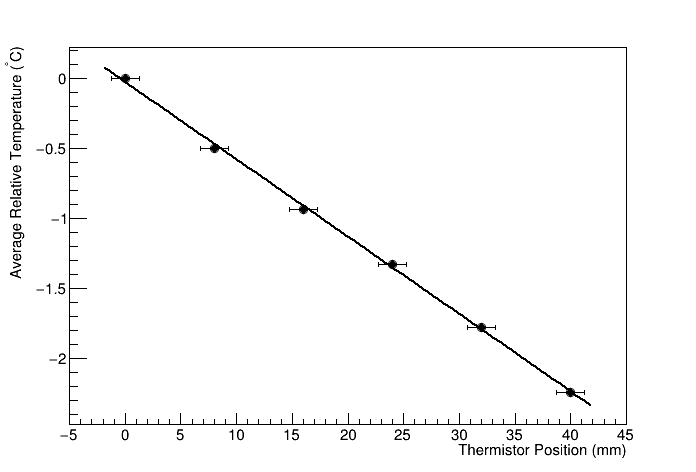

Hot flux meter difference fit	Cold flux meter difference fit
