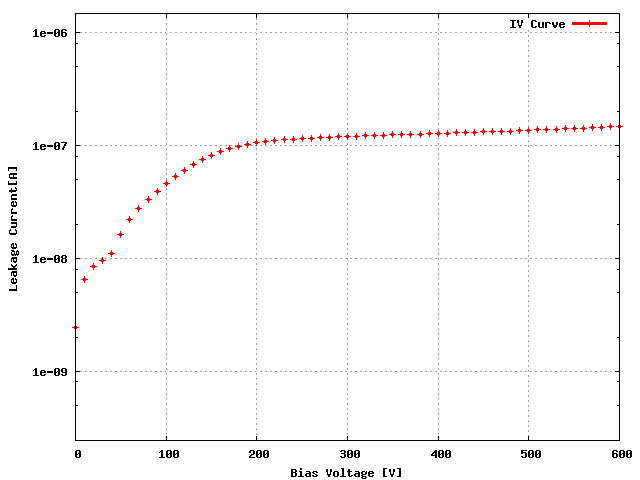

Sensor: S_2x5_171, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W30_X74K5RT | 22A |
| ROC1 | W30_X74K5RT | 21D |
| ROC2 | W30_X74K5RT | 21C |
| ROC3 | W30_X74K5RT | 21B |
| ROC4 | W30_X74K5RT | 21A |
| ROC5 | W30_X74K5RT | 17D |
| ROC6 | W30_X74K5RT | 18C |
| ROC7 | W30_X74K5RT | 18D |
| ROC8 | W30_X74K5RT | 03A |
| ROC9 | W30_X74K5RT | 03D |
| Ibias_DAC, Ibias_DAC Data | 144 | 140 | 130 | 136 | 138 | 138 | 140 | 132 | 142 | 130 |
| Vana, VanaData | 134 | 125 | 123 | 130 | 157 | 126 | 139 | 127 | 134 | 129 |
| CalDelData and plots | 72 | 91 | 80 | 98 | 86 | 100 | 67 | 77 | 78 | 91 |
| VthrCompData and plots | 76 | 71 | 86 | 70 | 90 | 80 | 86 | 68 | 81 | 65 | Depletion Voltage is -10 and suggested operational voltage is -50 BAD GINO BAD
