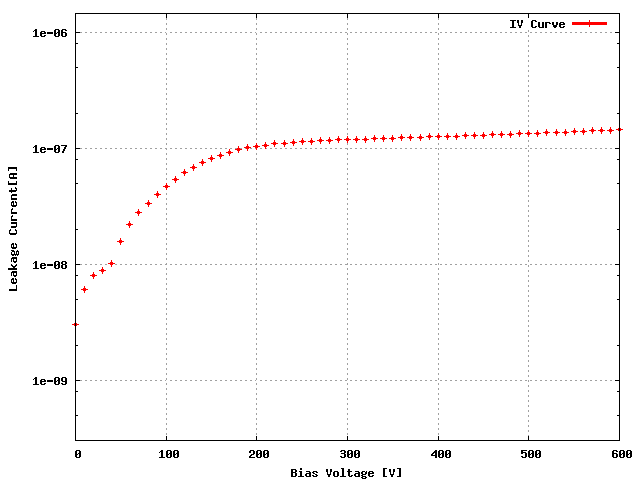

Sensor: S_2x5_171, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W30_X74K5RT	22A
ROC1	W30_X74K5RT	21D
ROC2	W30_X74K5RT	21C
ROC3	W30_X74K5RT	21B
ROC4	W30_X74K5RT	21A
ROC5	W30_X74K5RT	17D
ROC6	W30_X74K5RT	18C
ROC7	W30_X74K5RT	18D
ROC8	W30_X74K5RT	03A
ROC9	W30_X74K5RT	03D

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	144	140	128	134	136	136	140	132	142	130
Vana, VanaData	134	126	123	129	157	126	140	127	134	129
CalDelData and plots	72	91	80	98	86	99	67	77	78	91
VthrCompData and plots	76	72	86	69	90	80	87	68	81	65
TestDdata ,TestD Plots	0	0	0	0	0	0	0	0	0	1
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

ROC0 NOISE			MEAN = 5.415063 SIGMA = 0.500066
ROC1 NOISE			MEAN = 4.648352 SIGMA = 0.385108
ROC2 NOISE			MEAN = 4.539446 SIGMA = 0.390537
ROC3 NOISE			MEAN = 4.443889 SIGMA = 0.337439
ROC4 NOISE			MEAN = 5.614495 SIGMA = 0.434941
ROC5 NOISE			MEAN = 5.612837 SIGMA = 0.465356
ROC6 NOISE			MEAN = 5.965273 SIGMA = 0.455740
ROC7 NOISE			MEAN = 5.825329 SIGMA = 0.519521
ROC8 NOISE			MEAN = 6.464302 SIGMA = 0.552826
ROC9 NOISE			MEAN = 6.561192 SIGMA = 0.671380

Comment (if any): Good.

P_2x5_171_A.html,

End testing time: 4:36 PM
