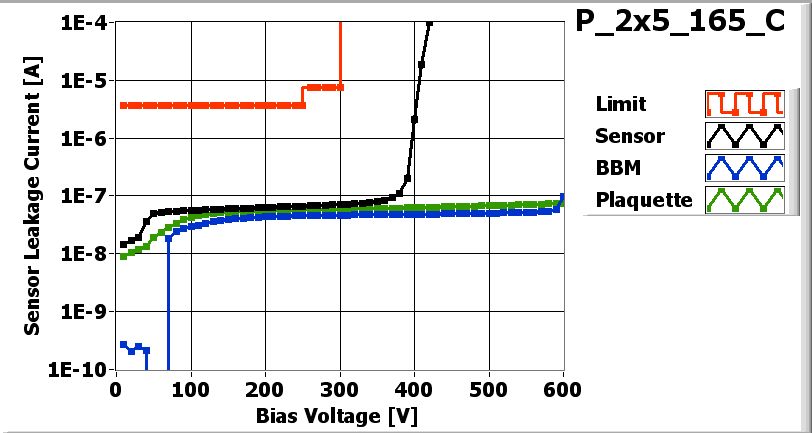

![[IMAGE] of](P_2x5_165_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 5/7/2007
| Part | ID |
|---|---|
| BBM | BBM_165-2x5 |
| VHDI | 2x5_354 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 55B |
| ROC1 | KFNG13T | 55D |
| ROC2 | KFNG13T | 55C |
| ROC3 | KFNG13T | 54B |
| ROC4 | KFNG13T | 54A |
| ROC5 | KFNG13T | 35C |
| ROC6 | KFNG13T | 45D |
| ROC7 | KFNG13T | 35D |
| ROC8 | KFNG13T | 25D |
| ROC9 | KFNG13T | 45C |
Inspected by Lockwood Gale on date 5/9/2007
| LR_dev | 0.071 |
| LL_dev | 0.078 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/9/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/9/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/9/2007 by Ortiz Jason
P_2x5_165_Con 5/10/2007 10:44 AM
P_2x5_165_Con 5/10/2007 10:44 AM
PLAQUETTE TESTED on 2007-05-10 by mia tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 150 | 150 | 148 | 158 | 170 | 158 | 144 | 162 | 164 | 154 | |
| Vana | 122 | 133 | 146 | 128 | 144 | 147 | 130 | 141 | 128 | 140 | |
| Cal_Del | 76 | 78 | 61 | 84 | 62 | 70 | 67 | 64 | 69 | 74 | |
| Vthrs_Comp | 88 | 72 | 92 | 79 | 90 | 88 | 77 | 85 | 87 | 71 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3 | 1 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

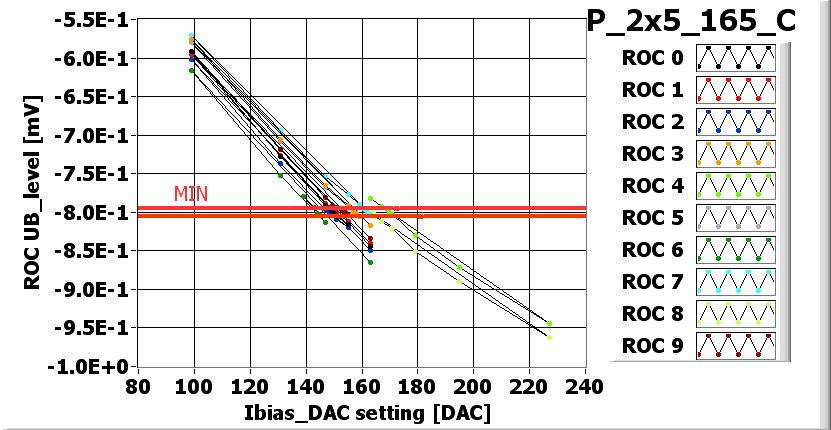

![[IMAGE] of](P_2x5_165_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

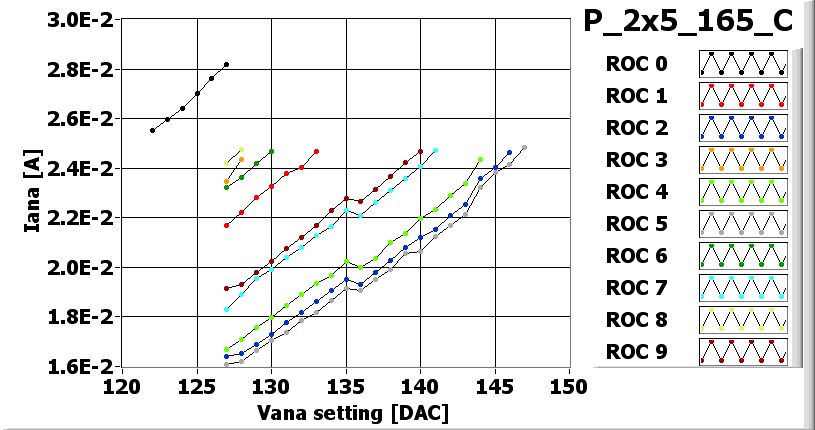

![[IMAGE] of](P_2x5_165_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_165_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_165_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_165_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_165_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 140 | 100 | 95 | 110 | 90 | 100 | 115 | 100 | 120 | 95 |
| Vsf | 140 | 135 | 145 | 140 | 145 | 150 | 140 | 140 | 140 | 135 |
| VoffsetOp | 80 | 75 | 85 | 75 | 105 | 90 | 75 | 105 | 75 | 75 |
| VIbias_PH | 95 | 105 | 95 | 100 | 105 | 100 | 95 | 100 | 100 | 100 |
Noise MAP
![[IMAGE] of](P_2x5_165_C-580-noise.jpg)

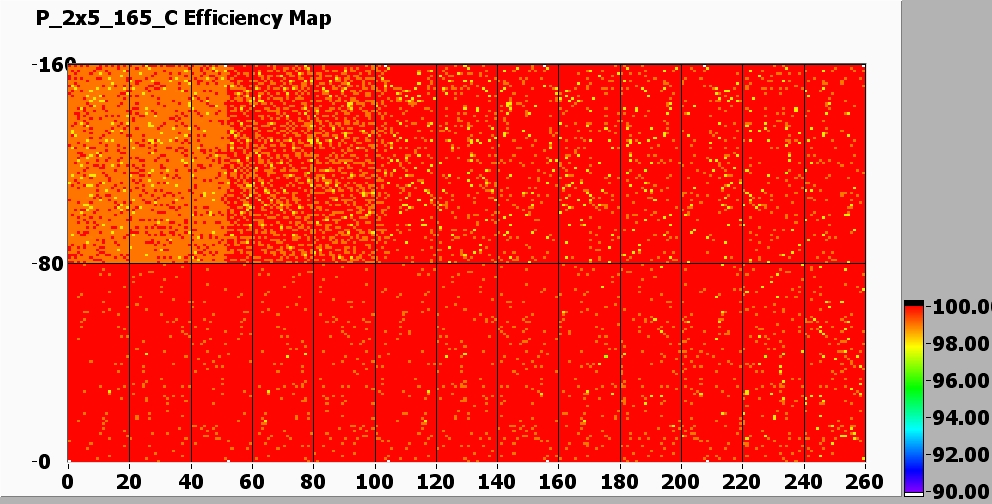

Efficiency MAP
![[IMAGE] of](P_2x5_165_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
