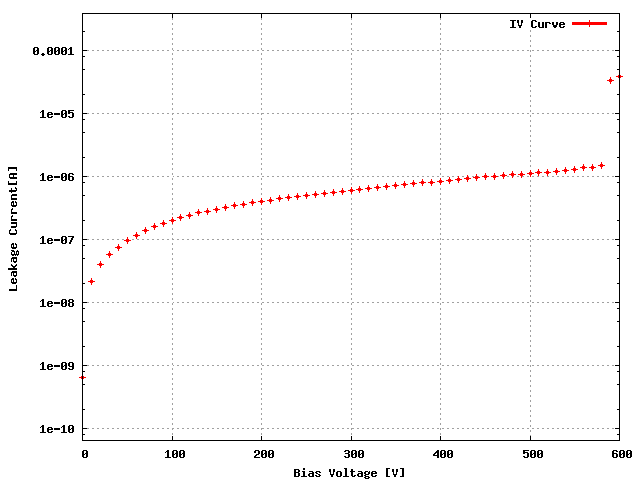

Sensor: S_2x5_160, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KBNG0QT	22D
ROC1	KBNG0QT	32D
ROC2	KBNG0QT	32A
ROC3	KBNG0QT	42A
ROC4	KBNG0QT	61D
ROC5	KBNG0QT	61C
ROC6	KBNG0QT	61B
ROC7	KBNG0QT	32B
ROC8	KBNG0QT	51D
ROC9	KBNG0QT	51A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	158	164	170	146	160	154	160	160	150	164
Vana, VanaData	139	144	145	140	136	143	140	125	142	138
CalDelData and plots	78	86	82	80	77	75	88	78	90	82
VthrCompData and plots	76	86	83	85	85	85	75	73	76	82
TestDdata ,TestD Plots	0	1	0	0	8	18	25	0	4	0
LightData ,Light Plots	0	1	0	0	12	69	63	0	4	14
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	BAD	BAD	GOOD	GOOD	GOOD

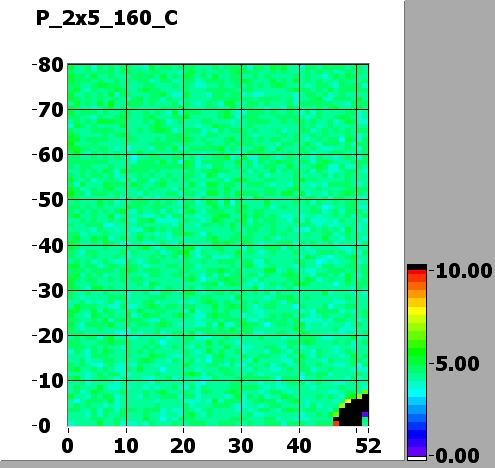

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

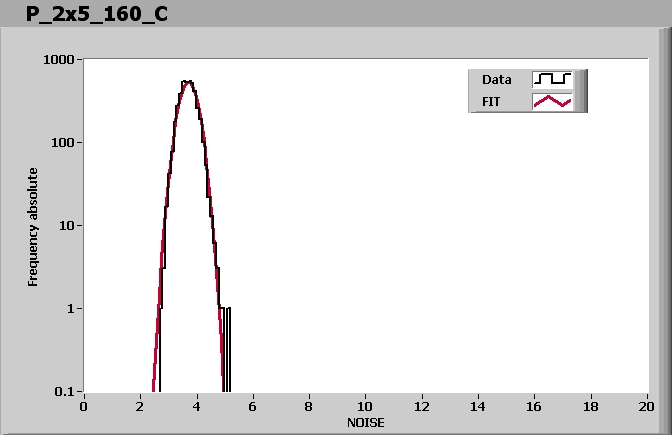

ROC0 NOISE			MEAN = 4.298064 SIGMA = 0.334550
ROC1 NOISE			MEAN = 3.816365 SIGMA = 0.307301
ROC2 NOISE			MEAN = 3.700754 SIGMA = 0.303535
ROC3 NOISE			MEAN = 4.392286 SIGMA = 0.363423

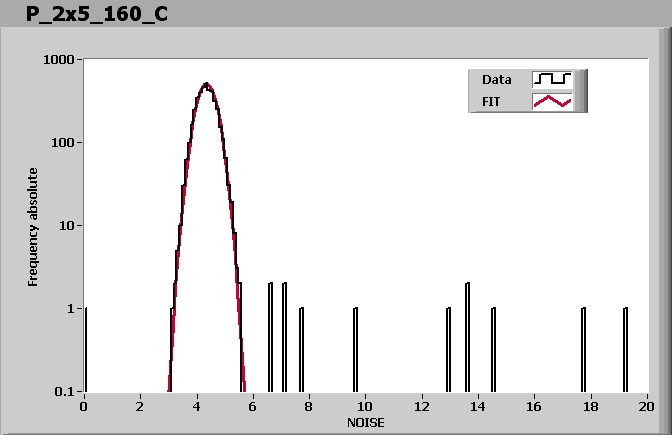

ROC4 NOISE			MEAN = 4.342717 SIGMA = 0.325510

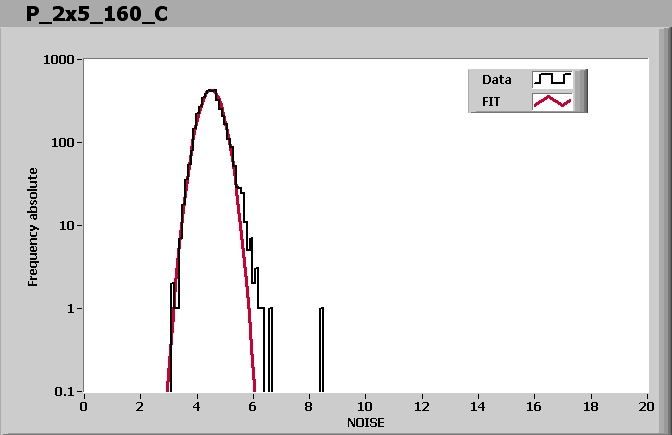

ROC5 NOISE			MEAN = 4.502496 SIGMA = 0.382308

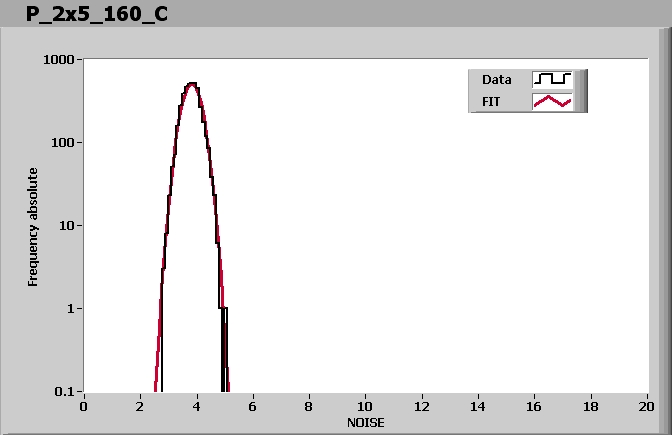

ROC6 NOISE			MEAN = 3.816148 SIGMA = 0.315358
ROC7 NOISE			MEAN = 4.245884 SIGMA = 0.371526

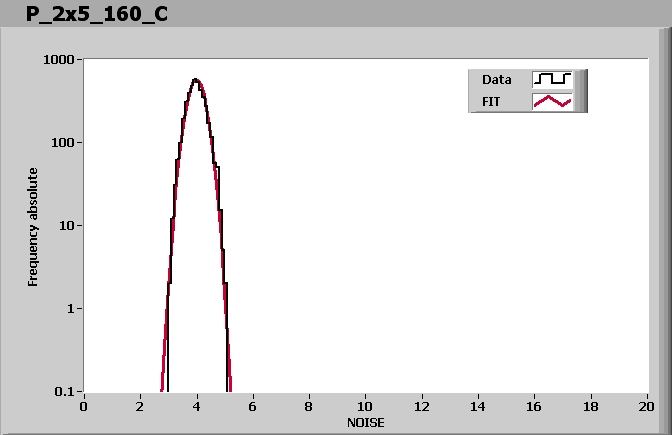

ROC8 NOISE			MEAN = 3.979547 SIGMA = 0.292729
ROC9 NOISE			MEAN = 4.053098 SIGMA = 0.315812

Comment (if any):

End testing time: 9:54 AM
