P_2x5_131

P_2x5_131_A

Parts committed by Bolla Gino on date 11/3/2006

Part	ID
BBM	BBM_131-2x5
VHDI	2x5_259

ROC ROC wafer Label

ROC0 W20_XP4K3AT 44B

ROC1 W20_XP4K3AT 44A

ROC2 W20_XP4K3AT 43B

ROC3 W20_XP4K3AT 43A

ROC4 W20_XP4K3AT 42C

ROC5 W20_XP4K3AT 63B

ROC6 W20_XP4K3AT 63D

ROC7 W20_XP4K3AT 64A

ROC8 W20_XP4K3AT 64B

ROC9 W20_XP4K3AT 64C

ROC	ROC wafer	Label
ROC0	W20_XP4K3AT	44B
ROC1	W20_XP4K3AT	44A
ROC2	W20_XP4K3AT	43B
ROC3	W20_XP4K3AT	43A
ROC4	W20_XP4K3AT	42C
ROC5	W20_XP4K3AT	63B
ROC6	W20_XP4K3AT	63D
ROC7	W20_XP4K3AT	64A
ROC8	W20_XP4K3AT	64B
ROC9	W20_XP4K3AT	64C

Inspected by Arndt Kirk on date 11/8/2006

LR_dev 0.062

LL_dev 0.074

FINAL COMMENT by Arndt Kirk No assembly problems. No wirebond problem.

PLAQUETTE made READY for testing on 11/8/2006 by Arndt Kirk

PLAQUETTE TESTED on 2006-11-09 by Gino Bolla

IV_XML-File

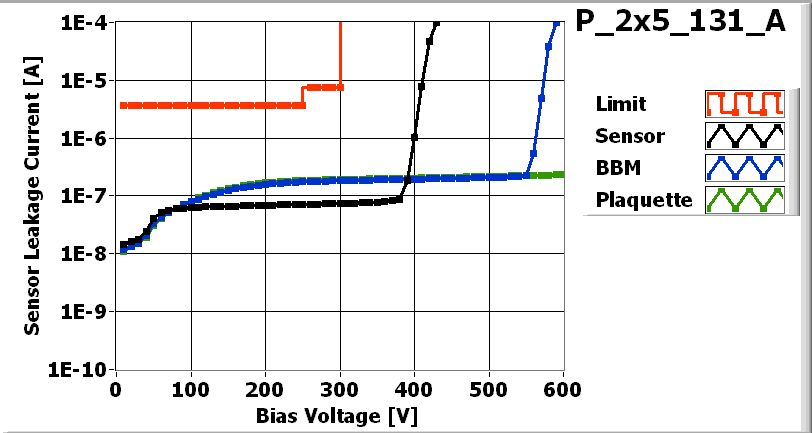

Maximum Voltage 600 V

LASER_XML-File

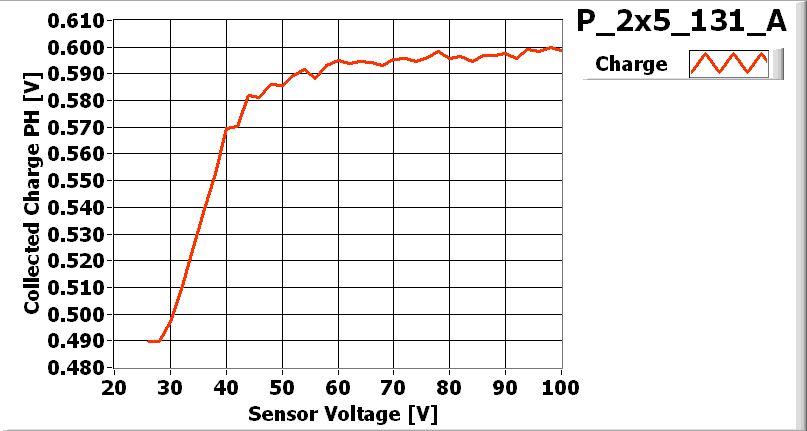

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9

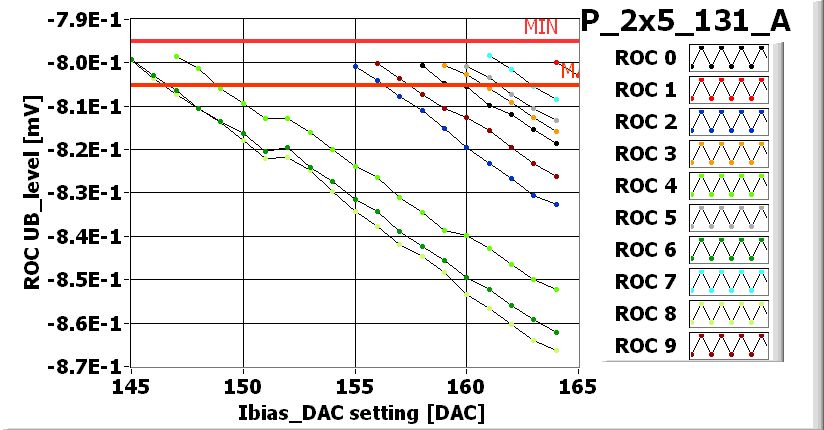

Ibias_DAC	158	165	155	159	147	160	145	161	145	156

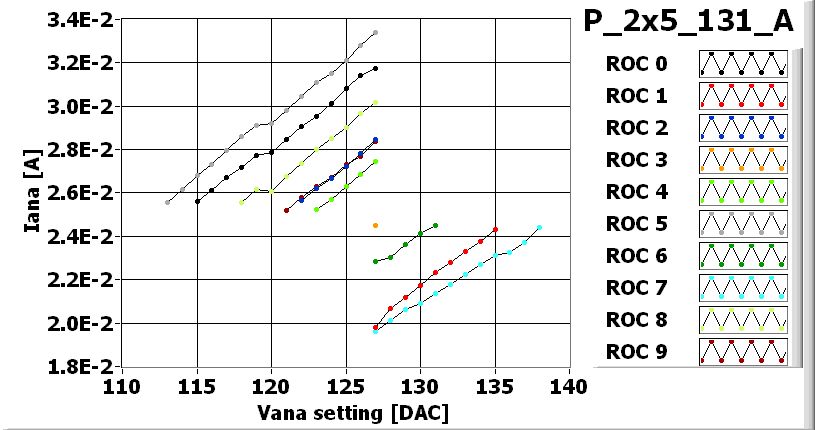

Vana	115	135	122	127	123	113	131	138	118	121
Cal_Del	99	91	89	88	98	89	90	88	103	79
Vthrs_Comp	70	71	67	72	76	73	79	83	64	76
Unbumped	0	0	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	1
Total BAD	0	0	0	0	0	0	0	0	0	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-11-13

Plaquette assigned to panel P3L_019
