P_2x5_129

P_2x5_129_A

Parts committed by Bolla Gino on date 12/21/2006

Part	ID
BBM	BBM_129-2x5
VHDI	2x5_286

ROC ROC wafer Label

ROC0 W32_XA4K5NT 21D

ROC1 W32_XA4K5NT 21B

ROC2 W32_XA4K5NT 20D

ROC3 W32_XA4K5NT 20A

ROC4 W32_XA4K5NT 39D

ROC5 W32_XA4K5NT 05C

ROC6 W32_XA4K5NT 05D

ROC7 W32_XA4K5NT 06A

ROC8 W32_XA4K5NT 06B

ROC9 W31_X44K5UT 73B

ROC	ROC wafer	Label
ROC0	W32_XA4K5NT	21D
ROC1	W32_XA4K5NT	21B
ROC2	W32_XA4K5NT	20D
ROC3	W32_XA4K5NT	20A
ROC4	W32_XA4K5NT	39D
ROC5	W32_XA4K5NT	05C
ROC6	W32_XA4K5NT	05D
ROC7	W32_XA4K5NT	06A
ROC8	W32_XA4K5NT	06B
ROC9	W31_X44K5UT	73B

Inspected by Kirk Arndt on date 2007-01-10

LR_dev 0.058

LL_dev 0.046

FINAL COMMENT by Kirk Arndt No assembly problems. no wirebonding problems.

PLAQUETTE made READY for testing on 2007-01-10 by Kirk Arndt

PLAQUETTE TESTED on 2007-01-11 by Joseph Clampitt

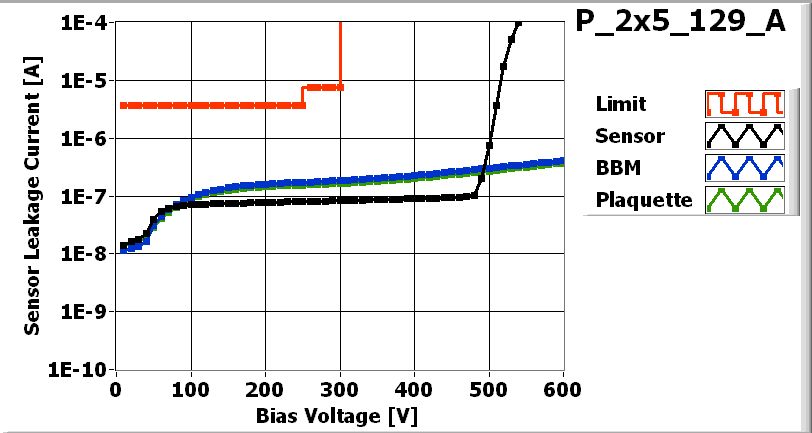

IV_XML-File

Maximum Voltage 600 V

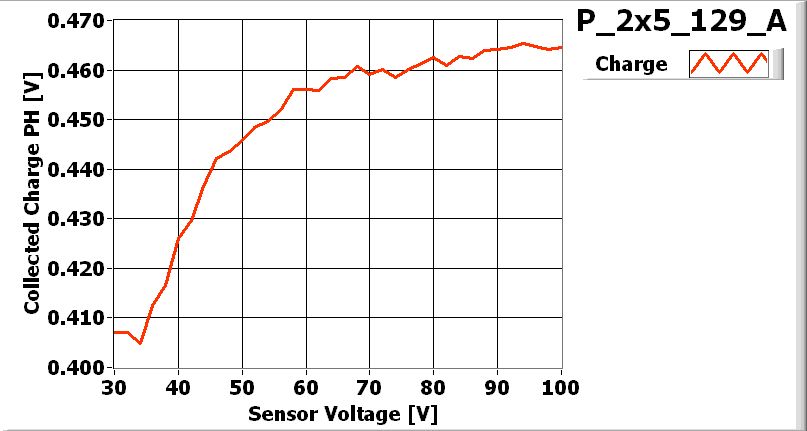

LASER_XML-File

Depletion Voltage 52 V

Operational Voltage 92 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	138	138	144	140	142	134	144	138	134	146
Vana	145	130	131	131	143	125	122	127	113	135
Cal_Del	78	76	85	60	75	84	80	83	96	85
Vthrs_Comp	80	81	70	83	78	67	78	86	68	83
Unbumped	0	0	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

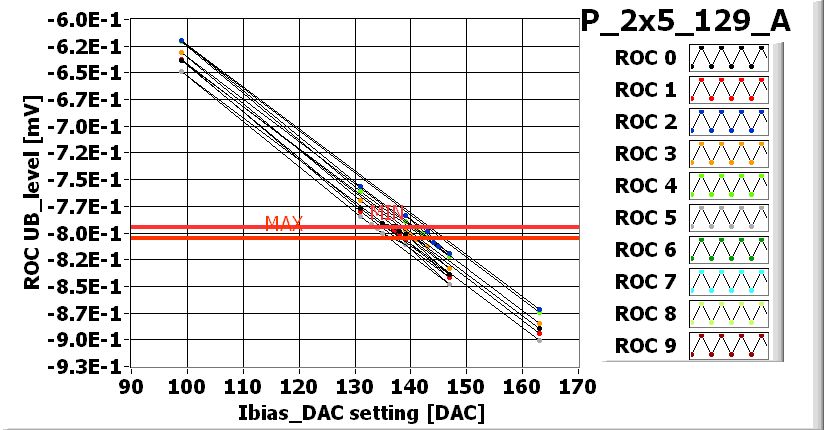

	I_BIAS_DAC_XML-File

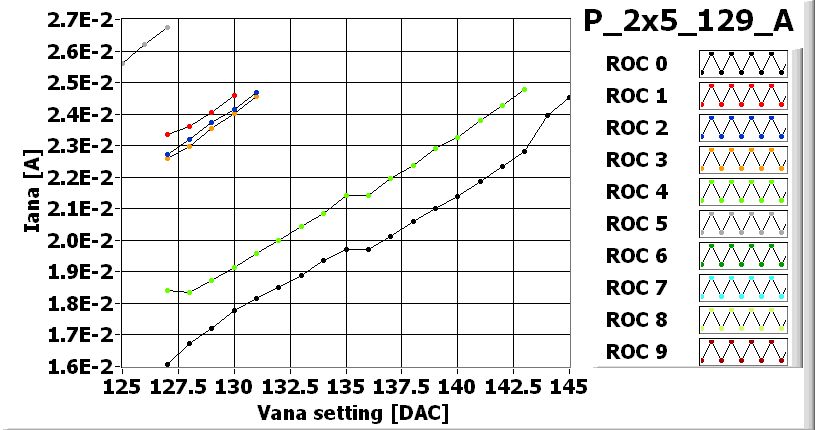

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-01-22

Plaquette assigned to panel P3L_015
