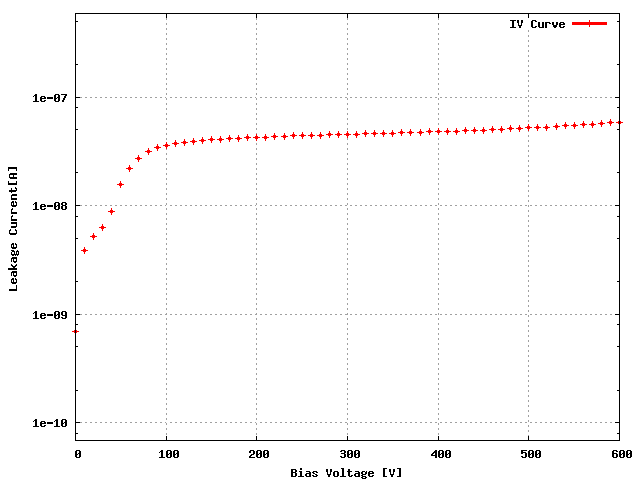

Sensor: S_2x5_110, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XW4KFXT	06D
ROC1	XW4KFXT	11C
ROC2	XW4KFXT	20A
ROC3	XW4KFXT	05A
ROC4	XW4KFXT	03A
ROC5	XW4KFXT	13B
ROC6	XW4KFXT	11D
ROC7	XW4KFXT	21C
ROC8	XW4KFXT	03C
ROC9	XW4KFXT	04B

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	138	130	122	132	128	140	130	124	126	128
Vana, VanaData	126	117	124	131	127	132	127	130	137	125
CalDelData and plots	79	88	67	86	103	89	84	87	93	89
VthrCompData and plots	72	64	70	75	75	63	60	72	69	68
TestDdata ,TestD Plots	0	0	0	0	0	1	1	0	0	1
LightData ,Light Plots	0	0	0	0	0	1	1	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

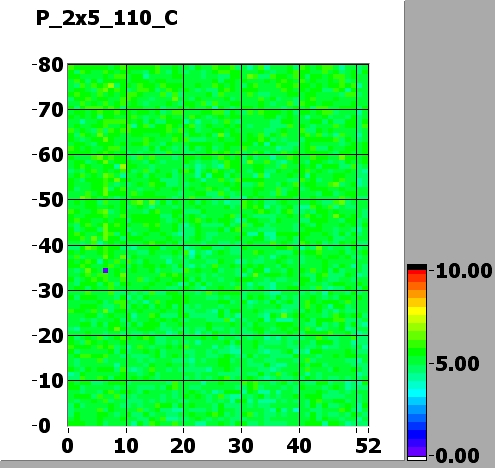

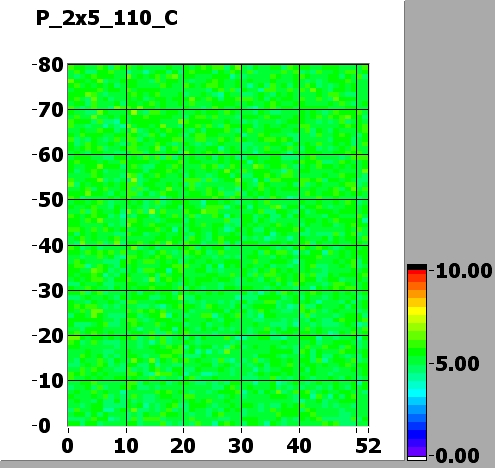

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

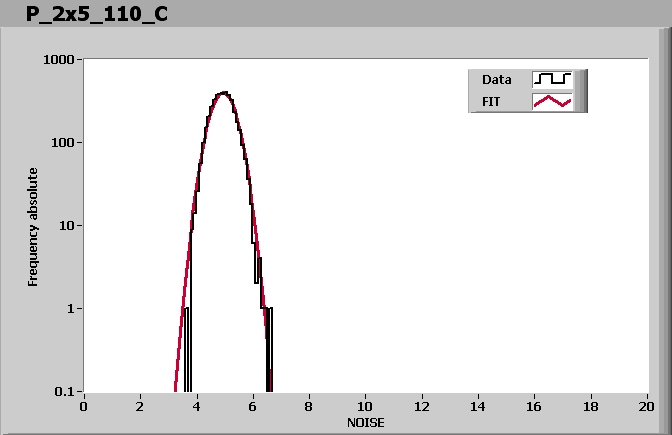

ROC0 NOISE			MEAN = 4.812500 SIGMA = 0.387127
ROC1 NOISE			MEAN = 4.935476 SIGMA = 0.381370
ROC2 NOISE			MEAN = 4.935139 SIGMA = 0.416663

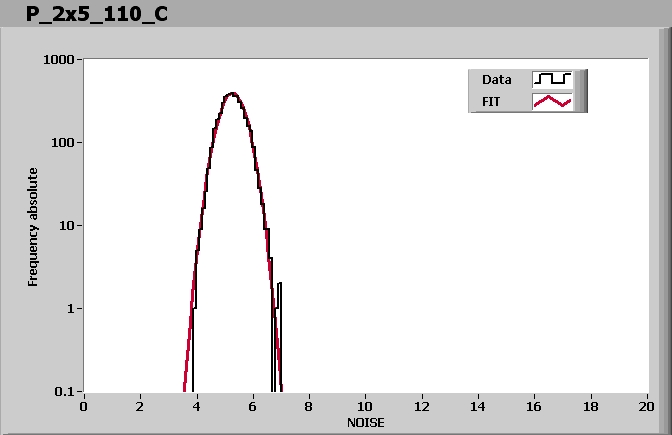

ROC3 NOISE			MEAN = 5.268961 SIGMA = 0.424593
ROC4 NOISE			MEAN = 4.799228 SIGMA = 0.379798

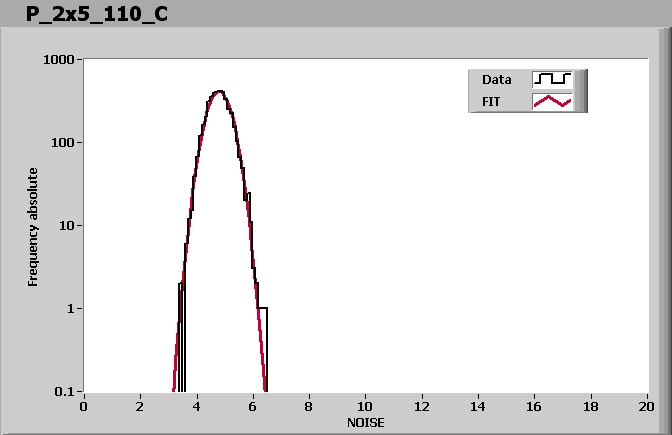

ROC5 NOISE			MEAN = 4.787552 SIGMA = 0.397115

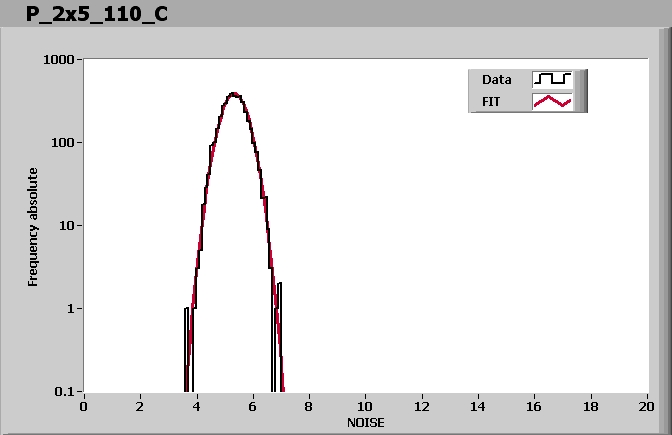

ROC6 NOISE			MEAN = 5.333672 SIGMA = 0.429363
ROC7 NOISE			MEAN = 5.042772 SIGMA = 0.407100

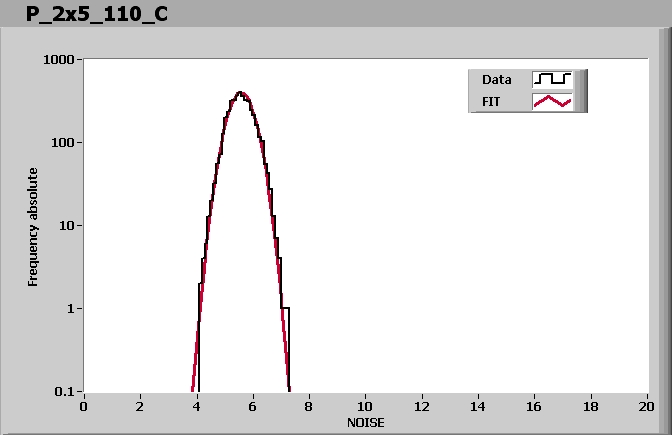

ROC8 NOISE			MEAN = 5.567442 SIGMA = 0.421129
ROC9 NOISE			MEAN = 5.166920 SIGMA = 0.414822

Comment (if any):

End testing time: 12:39 PM
