![[IMAGE] of](P_2x5_105_C_IV.jpg)

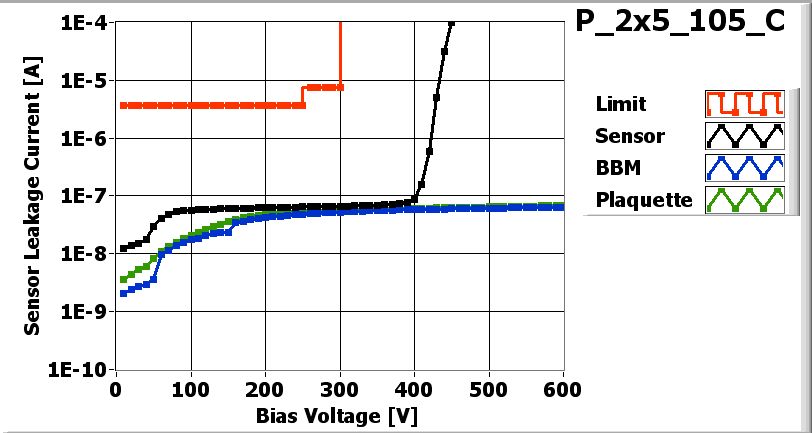

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_105_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 4/5/2007
| Part | ID |
|---|---|
| BBM | BBM_105-2x5 |
| VHDI | 2x5_412 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XW4KFXT | 29D |
| ROC1 | XW4KFXT | 76B |
| ROC2 | XW4KFXT | 29B |
| ROC3 | XW4KFXT | 68A |
| ROC4 | XW4KFXT | 75D |
| ROC5 | XW4KFXT | 73A |
| ROC6 | XW4KFXT | 39B |
| ROC7 | XW4KFXT | 39C |
| ROC8 | XW4KFXT | 39A |
| ROC9 | XW4KFXT | 76D |
Inspected by Lockwood Gale on date 4/10/2007
| LR_dev | 0.015 |
| LL_dev | 0.016 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Assembled at HALF-PRESSURE.No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/10/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/13/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/13/2007 by Ozhan Koybasi
PLAQUETTE TESTED on 2007-04-13 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 146 | 134 | 138 | 136 | 130 | 130 | 146 | 138 | 144 | 138 | |
| Vana | 140 | 135 | 144 | 139 | 134 | 133 | 135 | 160 | 151 | 115 | |
| Cal_Del | 83 | 93 | 76 | 87 | 80 | 74 | 75 | 74 | 74 | 91 | |
| Vthrs_Comp | 73 | 74 | 77 | 74 | 74 | 77 | 75 | 90 | 84 | 52 | |
| Unbumped | 3 | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 3 | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_105_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x5_105_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_105_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_105_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_105_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_105_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 135 | 95 | 110 | 115 | 135 | 110 | 95 | 95 | 170 |
| Vsf | 140 | 135 | 140 | 140 | 140 | 140 | 140 | 145 | 145 | 130 |
| VoffsetOp | 100 | 65 | 100 | 65 | 70 | 70 | 110 | 125 | 125 | 60 |
| VIbias_PH | 100 | 95 | 100 | 105 | 95 | 95 | 105 | 105 | 100 | 100 |
Noise MAP
![[IMAGE] of](P_2x5_105_C-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_105_C-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
