P_2x5_100

P_2x5_100_A

Parts committed by Bolla Gino on date CCYY-MM-DD

Part	ID
BBM	BBM_100-2x5
VHDI	2x5_252

ROC ROC wafer Label

ROC0 X54JP2T 56C

ROC1 X54JP2T 56B

ROC2 X54JP2T 55D

ROC3 X54JP2T 45D

ROC4 X54JP2T 54D

ROC5 X54JP2T 34A

ROC6 X54JP2T 34B

ROC7 X54JP2T 34C

ROC8 X54JP2T 34D

ROC9 X54JP2T 35C

ROC	ROC wafer	Label
ROC0	X54JP2T	56C
ROC1	X54JP2T	56B
ROC2	X54JP2T	55D
ROC3	X54JP2T	45D
ROC4	X54JP2T	54D
ROC5	X54JP2T	34A
ROC6	X54JP2T	34B
ROC7	X54JP2T	34C
ROC8	X54JP2T	34D
ROC9	X54JP2T	35C

Inspected by Arndt Kirk on date 2006-07-27

LR_dev 0.053

LL_dev 0.059

FINAL COMMENT by Arndt Kirk No problem assembly. No wirebonding problem

PLAQUETTE made READY for testing on 2006-07-27 by Arndt Kirk

PLAQUETTE TESTED on 2006-7-28 by Stacy Kouba

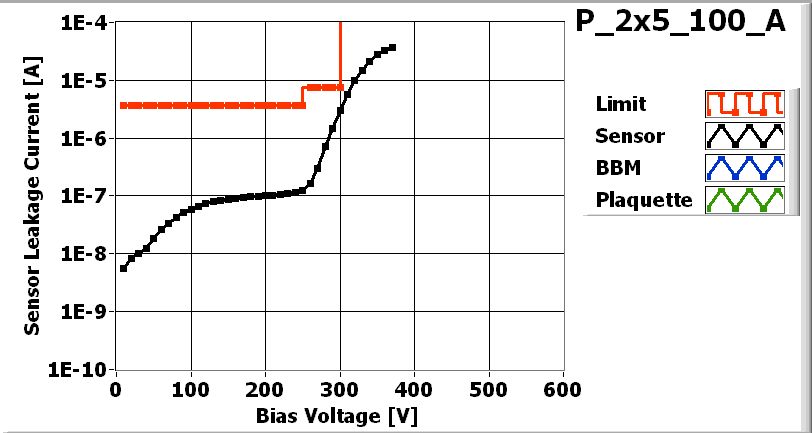

IV_XML-File

Maximum Voltage 370 V

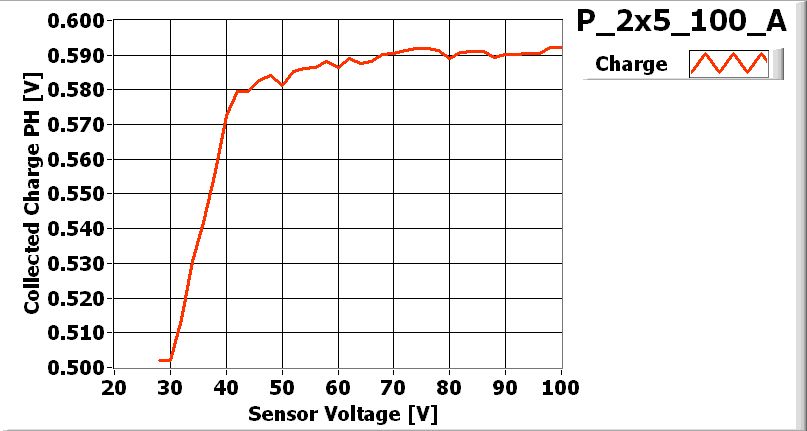

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	175	156	188	166	163	173	157	160	165	172
Vana	137	131	139	141	139	126	127	123	121	124
Cal_Del	75	86	79	79	86	76	75	78	85	69
Vthrs_Comp	81	74	81	81	72	70	75	81	68	71
Unbumped	0	0	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

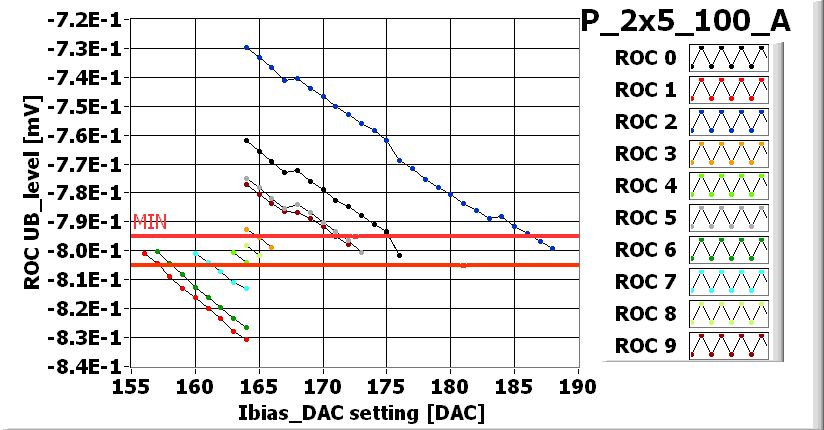

	I_BIAS_DAC_XML-File

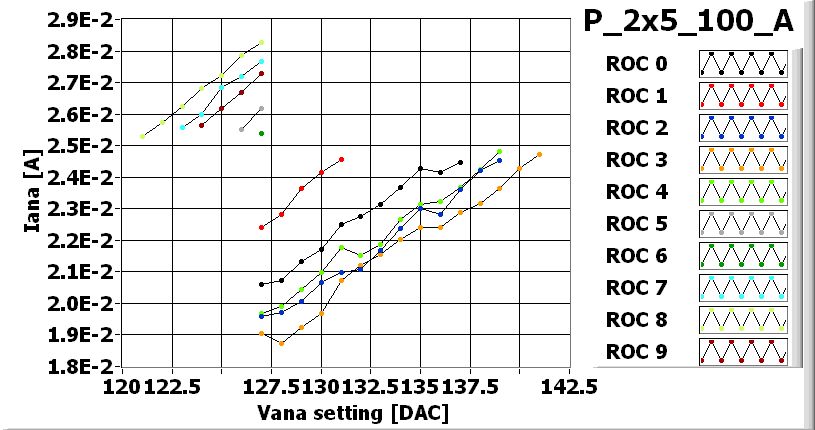

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-08-01
