P_2x5_096

P_2x5_096_C

Parts committed by Bolla Gino on date CCYY-MM-DD

Part	ID
BBM	BBM_096-2x5
VHDI	2x5_258

ROC ROC wafer Label

ROC0 XK4K3ET 62B

ROC1 XK4K3ET 62A

ROC2 XK4K3ET 68C

ROC3 XK4K3ET 67C

ROC4 XK4K3ET 66D

ROC5 XK4K3ET 63C

ROC6 XK4K3ET 64C

ROC7 XK4K3ET 65C

ROC8 XK4K3ET 65D

ROC9 XK4K3ET 66C

ROC	ROC wafer	Label
ROC0	XK4K3ET	62B
ROC1	XK4K3ET	62A
ROC2	XK4K3ET	68C
ROC3	XK4K3ET	67C
ROC4	XK4K3ET	66D
ROC5	XK4K3ET	63C
ROC6	XK4K3ET	64C
ROC7	XK4K3ET	65C
ROC8	XK4K3ET	65D
ROC9	XK4K3ET	66C

Inspected by Arndt Kirk on date 2006-08-21

LR_dev 0.075

LL_dev 0.069

FINAL COMMENT by Arndt Kirk No problem assembly. No wirebonding problem

PLAQUETTE made READY for testing on 2006-08-21 by Arndt Kirk

PLAQUETTE TESTED on 2006-08-22 by Isaac Childres

IV_XML-File

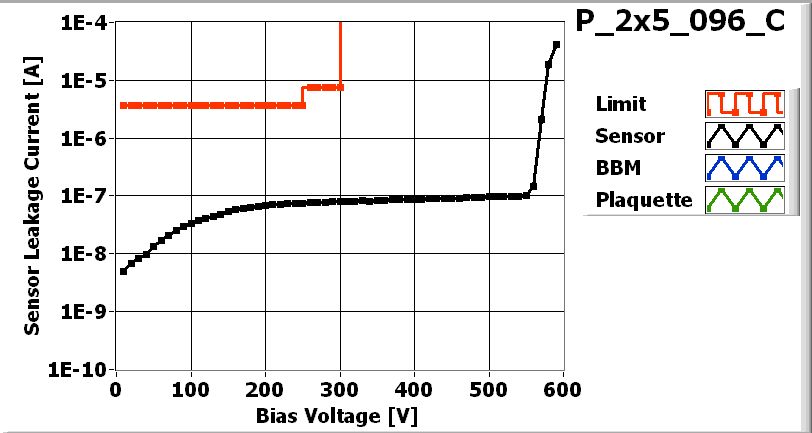

Maximum Voltage 590 V

LASER_XML-File

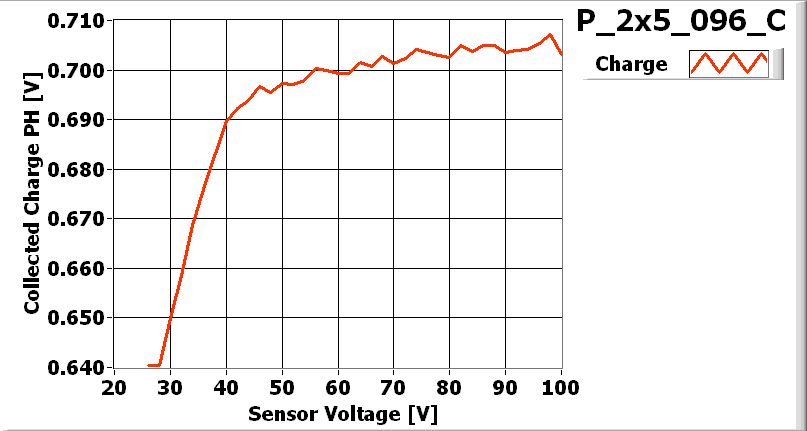

Depletion Voltage 44 V

Operational Voltage 84 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9

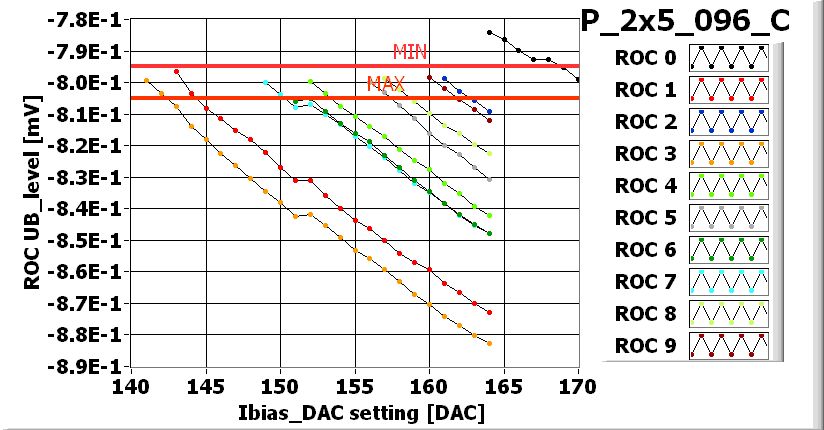

Ibias_DAC	170	143	161	141	152	156	151	149	157	160

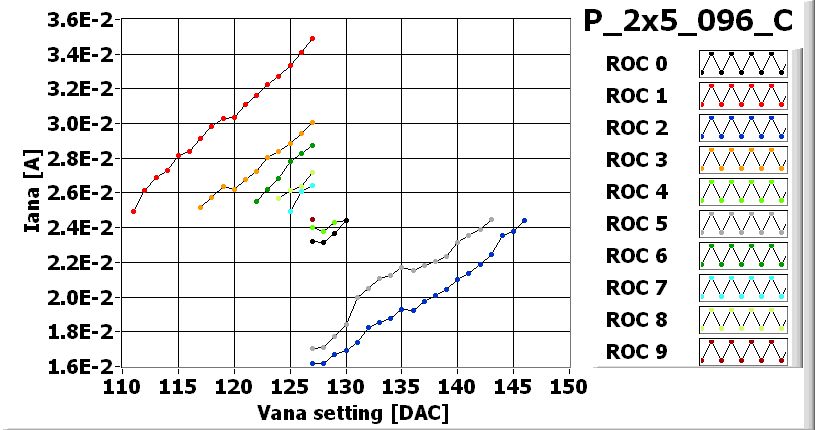

Vana	130	111	146	117	130	143	122	125	124	127
Cal_Del	89	81	74	102	102	96	89	81	88	90
Vthrs_Comp	86	78	89	78	79	91	83	82	67	75
Unbumped	6	1	0	0	0	0	1	0	1	0
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	6	1	0	0	0	0	1	0	1	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-08-25

Plaquette assigned to panel P3R_045
