P_2x5_083

P_2x5_083_A

Parts committed by Bolla Gino on date 11/1/2006

Part	ID
BBM	BBM_083-2x5
VHDI	2x5_254

ROC ROC wafer Label

ROC0 W18_XJ4K3FT 32C

ROC1 W18_XJ4K3FT 04B

ROC2 W18_XJ4K3FT 31C

ROC3 W18_XJ4K3FT 31B

ROC4 W18_XJ4K3FT 30D

ROC5 W18_XJ4K3FT 28B

ROC6 W18_XJ4K3FT 28C

ROC7 W18_XJ4K3FT 29A

ROC8 W18_XJ4K3FT 11A

ROC9 W18_XJ4K3FT 11B

ROC	ROC wafer	Label
ROC0	W18_XJ4K3FT	32C
ROC1	W18_XJ4K3FT	04B
ROC2	W18_XJ4K3FT	31C
ROC3	W18_XJ4K3FT	31B
ROC4	W18_XJ4K3FT	30D
ROC5	W18_XJ4K3FT	28B
ROC6	W18_XJ4K3FT	28C
ROC7	W18_XJ4K3FT	29A
ROC8	W18_XJ4K3FT	11A
ROC9	W18_XJ4K3FT	11B

Inspected by Arndt Kirk on date 11/3/2006

LR_dev 0.030

LL_dev 0.050

FINAL COMMENT by Arndt Kirk No assembly problem. Irregular shaped (narrow) bond pads on VHDI for ROC wirebonds = irregular bond feet on VHDI pads. No wirebond problem.

PLAQUETTE made READY for testing on 11/3/2006 by Arndt Kirk

PLAQUETTE TESTED on 2006-11-03 by Isaac Childres

IV_XML-File

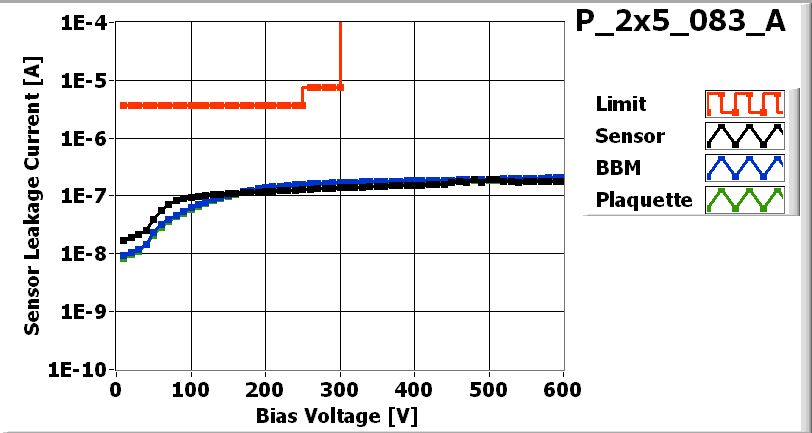

Maximum Voltage 600 V

LASER_XML-File

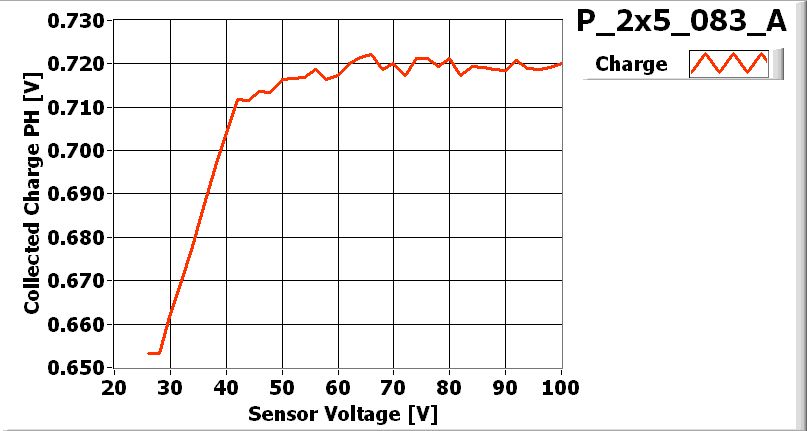

Depletion Voltage 44 V

Operational Voltage 84 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	142	157	154	161	152	165	144	153	133	157

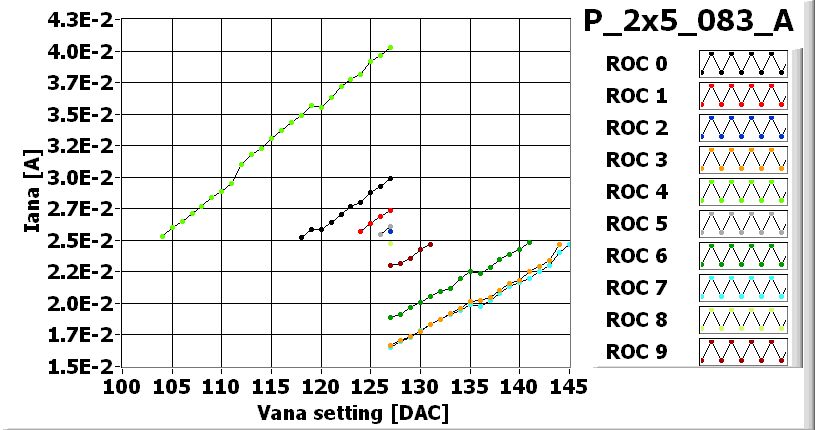

Vana	118	124	127	144	104	126	141	145	127	131
Cal_Del	72	88	86	85	84	71	96	68	96	88
Vthrs_Comp	71	79	78	84	79	93	70	86	71	85
Unbumped	0	0	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-11-03

Plaquette assigned to panel P3R_074
