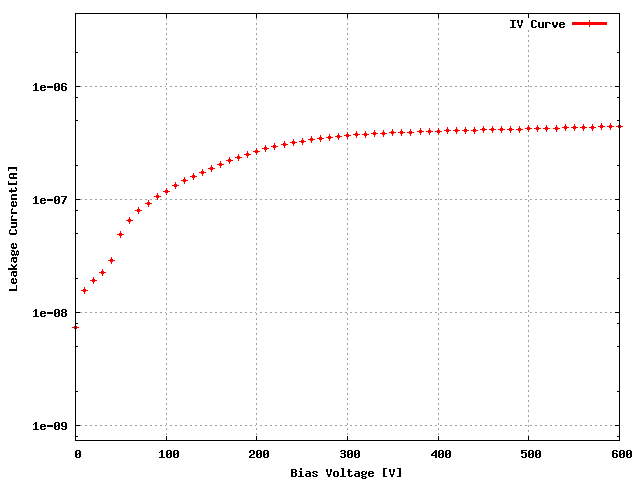

Sensor: S_2x5_082, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W32_XA4K5NT | 51D |
| ROC1 | W32_XA4K5NT | 51C |
| ROC2 | W32_XA4K5NT | 51B |
| ROC3 | W32_XA4K5NT | 68D |
| ROC4 | W32_XA4K5NT | 67C |
| ROC5 | W32_XA4K5NT | 30A |
| ROC6 | W32_XA4K5NT | 30B |
| ROC7 | W32_XA4K5NT | 30C |
| ROC8 | W32_XA4K5NT | 30D |
| ROC9 | W32_XA4K5NT | 31D |
| Ibias_DAC, Ibias_DAC Data | 134 | 134 | 120 | 150 | 134 | 134 | 132 | 138 | 134 | 142 |
| Vana, VanaData | 127 | 128 | 121 | 139 | 131 | 112 | 111 | 127 | 115 | 125 |
| CalDelData and plots | 92 | 87 | 87 | 85 | 93 | 68 | 95 | 83 | 87 | 88 |
| VthrCompData and plots | 75 | 70 | 74 | 77 | 78 | 72 | 71 | 58 | 64 | 73 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 26 | 0 | 22 | 15 | 0 |
| LightData ,Light Plots | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): GOOD, weird NOISE on a few ROCs
This Device have been tested 1Times prior to this one and here are the links to the previous tests:End testing time: 11:04 AM
