![[IMAGE] of](P_2x5_082_A_IV.jpg)

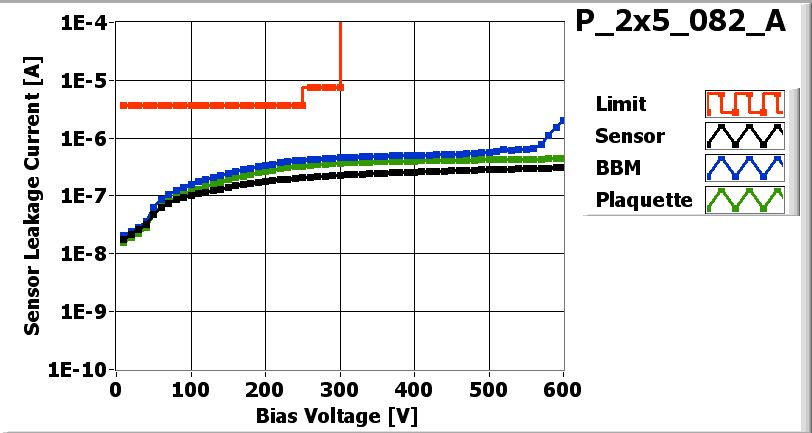

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_082_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 1/19/2007
| Part | ID |
|---|---|
| BBM | BBM_082-2x5 |
| VHDI | 2x5_294 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W32_XA4K5NT | 51D |
| ROC1 | W32_XA4K5NT | 51C |
| ROC2 | W32_XA4K5NT | 51B |
| ROC3 | W32_XA4K5NT | 68D |
| ROC4 | W32_XA4K5NT | 67C |
| ROC5 | W32_XA4K5NT | 30A |
| ROC6 | W32_XA4K5NT | 30B |
| ROC7 | W32_XA4K5NT | 30C |
| ROC8 | W32_XA4K5NT | 30D |
| ROC9 | W32_XA4K5NT | 31D |
Inspected by Arndt Kirk on date 1/29/2007
| LR_dev | 0.092 |
| LL_dev | 0.099 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. ROCs were stuck to membrane and difficult to remove BBM from membrane box. No ROC-VHDI wirebond problem. Several missed bonds on bouncing FOM - repaired. |
PLAQUETTE made READY for testing on 1/29/2007 by Arndt Kirk
P_2x5_082_Aon 1/31/2007 9:38 AM
P_2x5_082_Aon 1/31/2007 9:38 AM
P_2x5_082_A-1on 1/31/2007 10:39 AM
P_2x5_082_A-1on 1/31/2007 10:39 AM
PLAQUETTE TESTED on 2007-01-31 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 134 | 134 | 120 | 150 | 134 | 134 | 132 | 138 | 134 | 142 | |
| Vana | 127 | 128 | 121 | 139 | 131 | 112 | 111 | 127 | 115 | 125 | |
| Cal_Del | 92 | 87 | 87 | 85 | 93 | 68 | 95 | 83 | 87 | 88 | |
| Vthrs_Comp | 75 | 70 | 74 | 77 | 78 | 72 | 71 | 58 | 64 | 73 | |
| Unbumped | 0 | ku˷ 0PO:jSi-xZ<1 j2^+0ߕS_P flh*hp4T]`ύ dV=tljw |2jY3cs+]|kùZfNJW |
