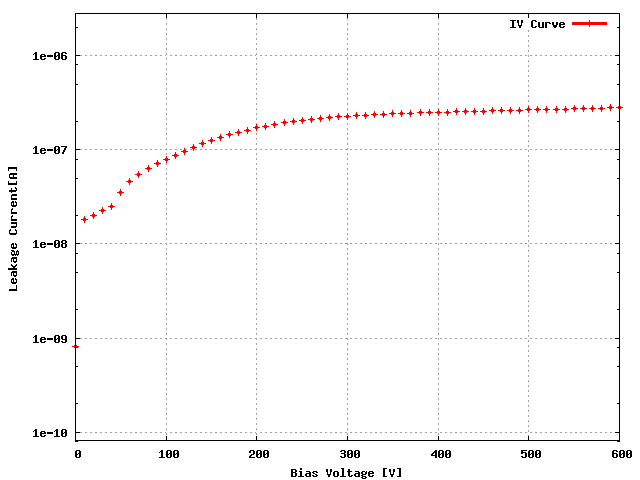

Sensor: S_2x5_081, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W32_XA4K5NT | 74B |
| ROC1 | W32_XA4K5NT | 74A |
| ROC2 | W32_XA4K5NT | 73D |
| ROC3 | W32_XA4K5NT | 73B |
| ROC4 | W32_XA4K5NT | 73A |
| ROC5 | W32_XA4K5NT | 42A |
| ROC6 | W32_XA4K5NT | 42B |
| ROC7 | W32_XA4K5NT | 42D |
| ROC8 | W32_XA4K5NT | 43A |
| ROC9 | W32_XA4K5NT | 43D |
| Ibias_DAC, Ibias_DAC Data | 137 | 144 | 145 | 148 | 135 | 144 | 140 | 128 | 136 | 140 |
| Vana, VanaData | 107 | 131 | 121 | 128 | 135 | 127 | 135 | 126 | 154 | 112 |
| CalDelData and plots | 84 | 74 | 75 | 85 | 85 | 66 | 73 | 89 | 72 | 83 |
| VthrCompData and plots | 71 | 77 | 89 | 74 | 74 | 86 | 80 | 58 | 88 | 81 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Perfect plaquette!
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 2:04 PM
