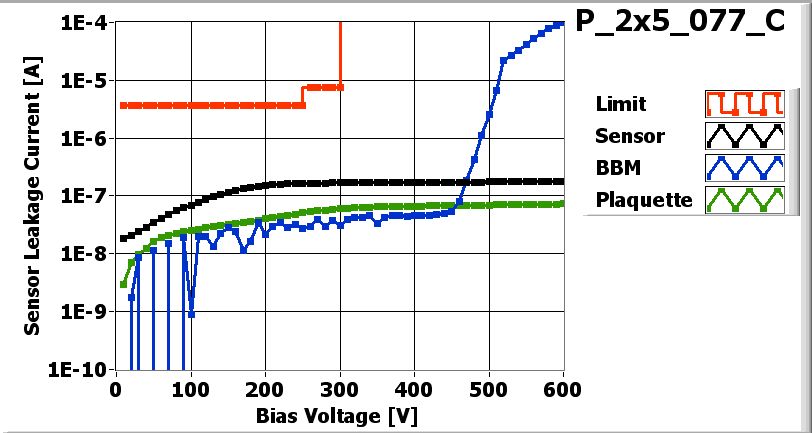

![[IMAGE] of](P_2x5_077_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

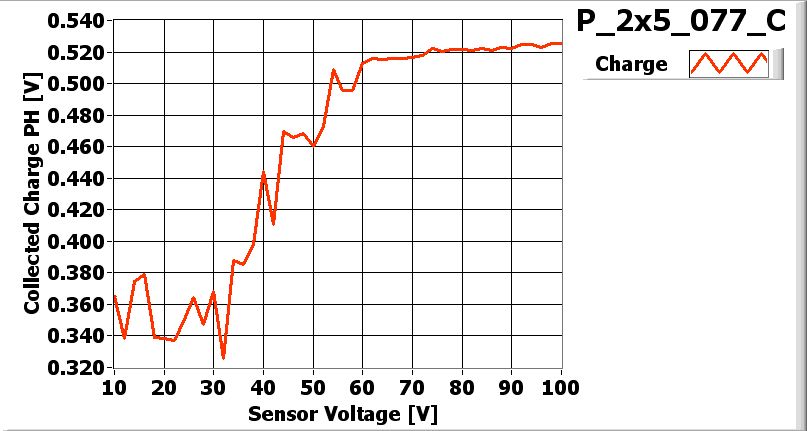

![[IMAGE] of](P_2x5_077_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Bolla Gino on date 4/10/2007
| Part | ID |
|---|---|
| BBM | BBM_077-2x5 |
| VHDI | 2x5_413 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XW4KFXT | 41B |
| ROC1 | XW4KFXT | 48B |
| ROC2 | XW4KFXT | 45D |
| ROC3 | XW4KFXT | 45C |
| ROC4 | XW4KFXT | 43D |
| ROC5 | XW4KFXT | 33D |
| ROC6 | XW4KFXT | 34C |
| ROC7 | XW4KFXT | 34D |
| ROC8 | XW4KFXT | 35D |
| ROC9 | XW4KFXT | 36D |
Inspected by Lockwood Gale on date 4/11/2007
| LR_dev | 0.065 |
| LL_dev | 0.061 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Assembled at HALF-PRESSURE."ROC5 chn 33,34 and ROC9 chn 34 required two attempts to bond, otherwise no wirebonding problems." |
PLAQUETTE made READY for ENCAPSULATION on 4/11/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/12/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/12/2007 by Ozhan Koybasi
PLAQUETTE TESTED on 2007-04-13 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 128 | 136 | 132 | 134 | 138 | 134 | 124 | 136 | 140 | 142 | |
| Vana | 144 | 140 | 135 | 130 | 130 | 134 | 135 | 133 | 127 | 140 | |
| Cal_Del | 89 | 77 | 81 | 93 | 82 | 81 | 102 | 84 | 102 | 92 | |
| Vthrs_Comp | 74 | 84 | 71 | 69 | 73 | 66 | 74 | 71 | 66 | 73 | |
| Unbumped | 0 | 1 | 0 | 0 | 0 | 0 | 2 | 1 | 1 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 1 | 31 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 1 | 31 | 2 | 1 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

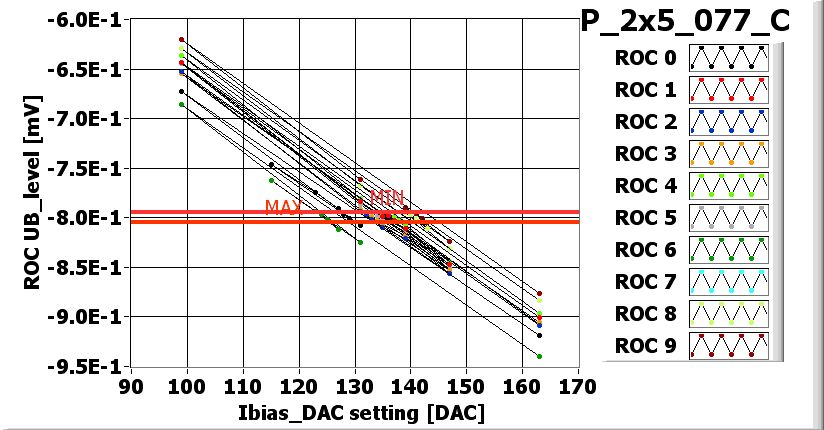

![[IMAGE] of](P_2x5_077_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

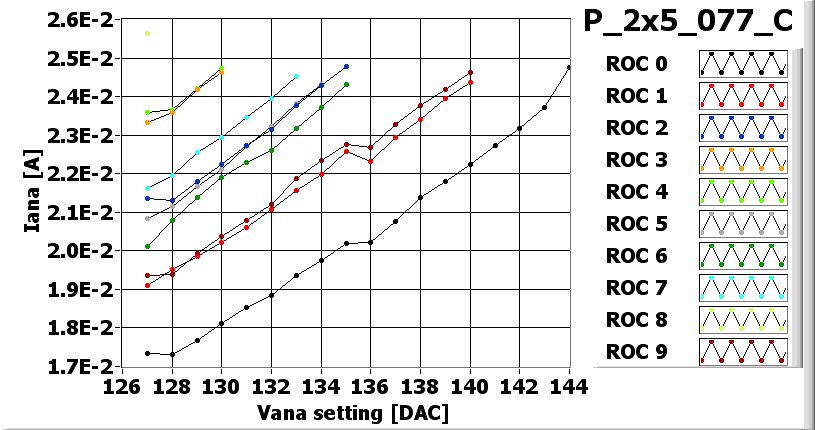

![[IMAGE] of](P_2x5_077_C_Vana.jpg) |
VANA_XML-File |

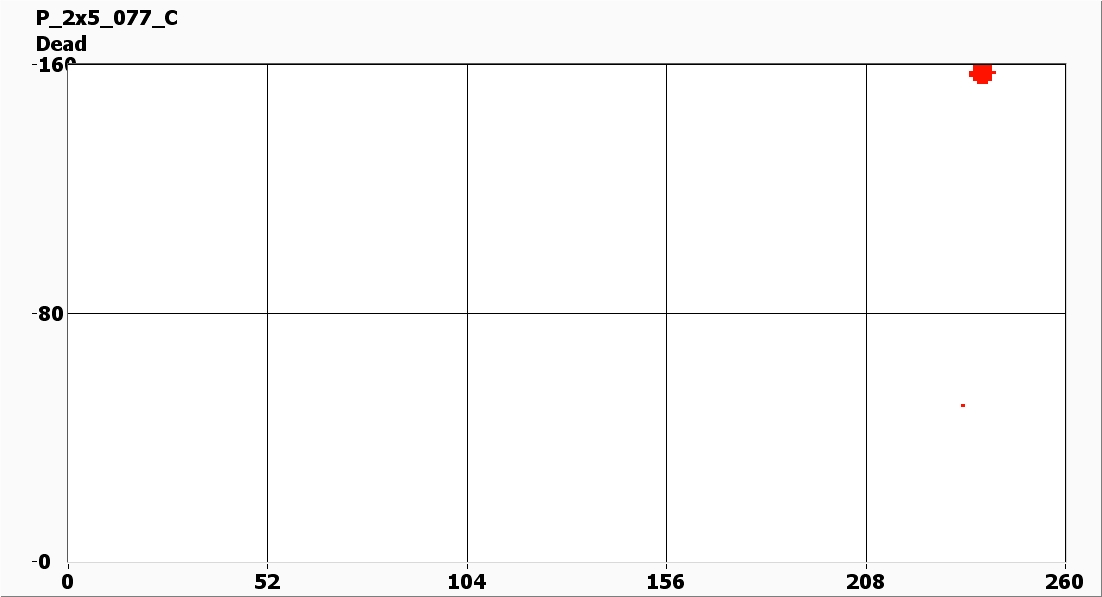

![[IMAGE] of](P_2x5_077_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_077_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_077_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_077_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 85 | 100 | 110 | 125 | 125 | 100 | 100 | 130 | 150 | 80 |
| Vsf | 140 | 140 | 140 | 145 | 145 | 140 | 140 | 140 | 140 | 140 |
| VoffsetOp | 95 | 80 | 75 | 75 | 65 | 65 | 90 | 75 | 60 | 95 |
| VIbias_PH | 100 | 100 | 100 | 100 | 95 | 100 | 100 | 105 | 105 | 100 |

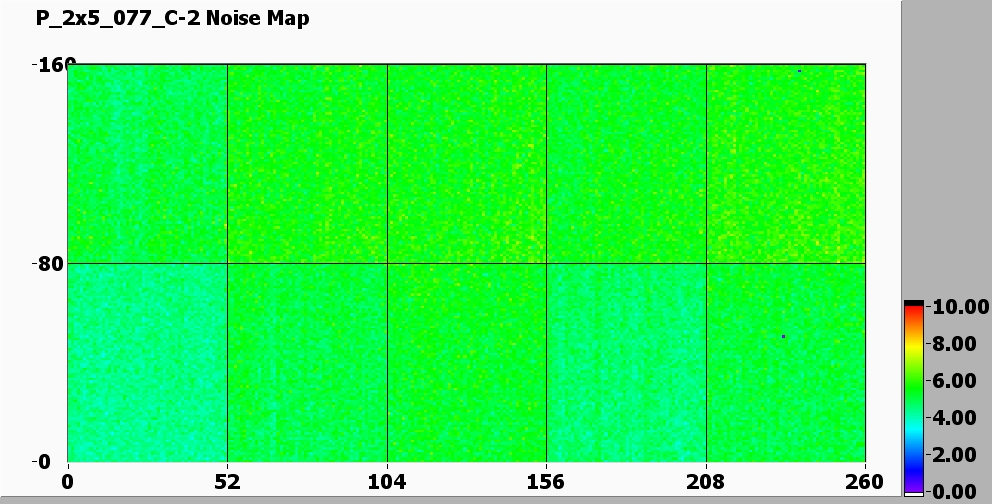

Noise MAP
![[IMAGE] of](P_2x5_077_C-2-580-noise.jpg)

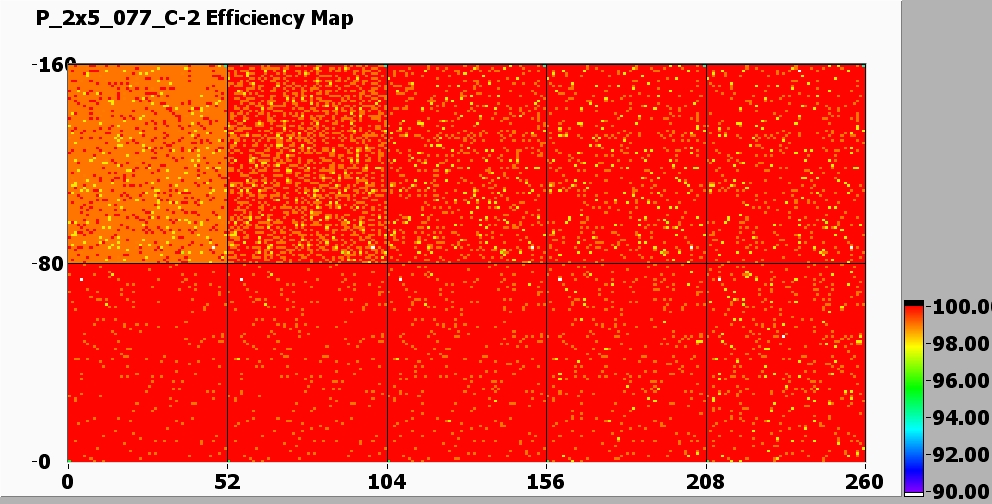

Efficiency MAP
![[IMAGE] of](P_2x5_077_C-2-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
