P_2x5_064

P_2x5_064_C

Parts committed by Bolla Gino on date 4/3/2007

Part	ID
BBM	BBM_064-2x5
VHDI	2x5_411

ROC ROC wafer Label

ROC0 XH4KFBT 37D

ROC1 XH4KFBT 31C

ROC2 XH4KFBT 28B

ROC3 XH4KFBT 39D

ROC4 XH4KFBT 31D

ROC5 XH4KFBT 34D

ROC6 XH4KFBT 27A

ROC7 XH4KFBT 29B

ROC8 XH4KFBT 30C

ROC9 XH4KFBT 35C

ROC	ROC wafer	Label
ROC0	XH4KFBT	37D
ROC1	XH4KFBT	31C
ROC2	XH4KFBT	28B
ROC3	XH4KFBT	39D
ROC4	XH4KFBT	31D
ROC5	XH4KFBT	34D
ROC6	XH4KFBT	27A
ROC7	XH4KFBT	29B
ROC8	XH4KFBT	30C
ROC9	XH4KFBT	35C

Inspected by Lockwood Gale on date 4/6/2007

LR_dev 0.022

LL_dev 0.027

FINAL COMMENT by Lockwood Gale No assembly problems. ROC 3, Ch 33,34 no wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 4/6/2007 by Lockwood Gale

PLAQUETTE encapsulated on 4/9/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 4/9/2007 by Ozhan Koybasi

P_2x5_064_Con 4/10/2007 6:20 AM

PLAQUETTE TESTED on 2007-04-10 by Gino Bolla

IV_XML-File

Maximum Voltage 600 V

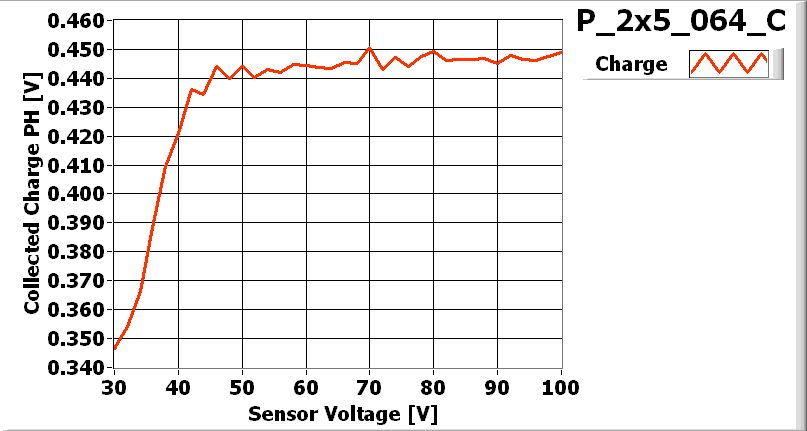

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	124	130	132	154	130	128	140	136	138	142
Vana	139	126	118	139	127	135	137	120	127	129
Cal_Del	73	98	94	70	71	76	64	80	72	80
Vthrs_Comp	75	66	72	79	79	74	86	80	81	72
Unbumped	0	1	0	0	0	1	1	4	2	3
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	1	0	0	0	1	1	4	2	3

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

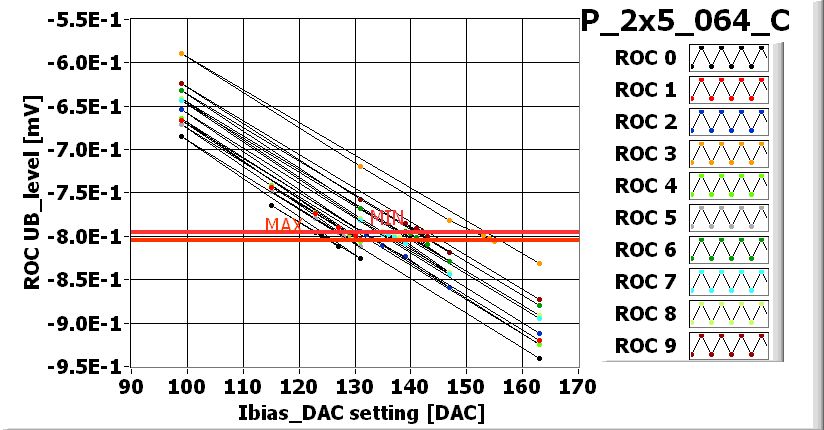

	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	105	135	165	100	125	130	125	170	130	125
Vsf	140	140	140	140	140	140	145	140	140	145
VoffsetOp	80	60	70	85	65	60	85	85	70	60
VIbias_PH	100	105	105	105	100	110	100	100	100	105

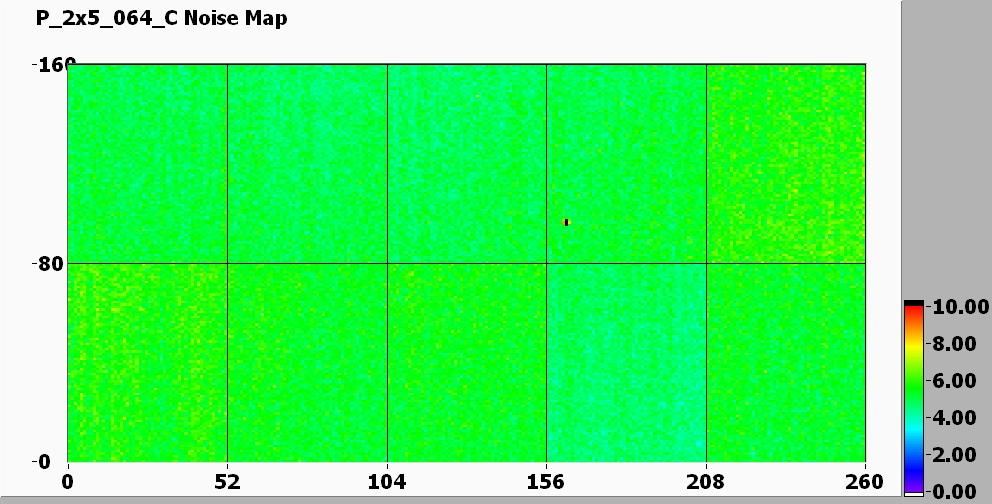

Noise MAP

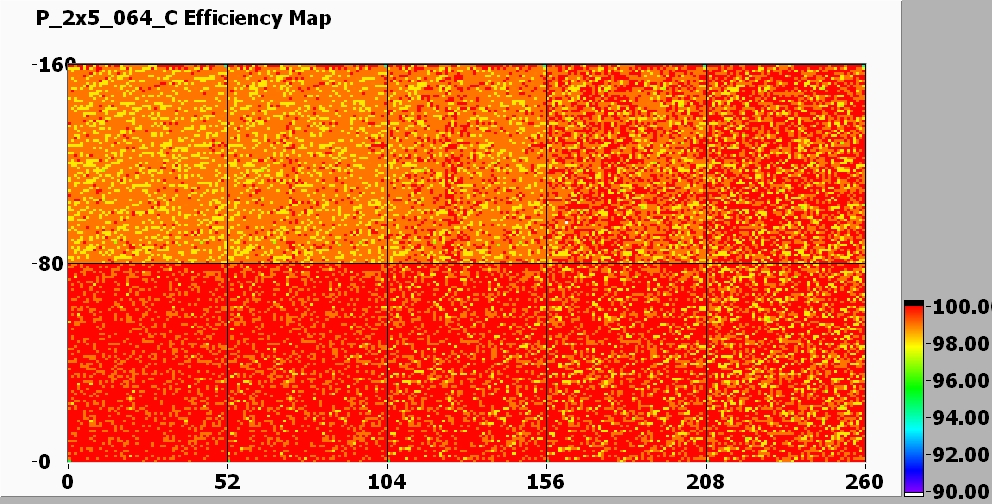

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-04-10

Plaquette assigned to panel P3R_016
