P_2x5_059

P_2x5_059_C

Parts committed by Bolla Gino on date CCYY-MM-DD

Part	ID
BBM	BBM_059-2x5
VHDI	2x5_281

ROC ROC wafer Label

ROC0 XF4K3JT 46A

ROC1 XF4K3JT 46B

ROC2 XF4K3JT 47A

ROC3 XF4K3JT 47B

ROC4 XF4K3JT 48A

ROC5 XF4K3JT 57D

ROC6 XF4K3JT 54C

ROC7 XF4K3JT 53D

ROC8 XF4K3JT 52D

ROC9 XF4K3JT 49A

ROC	ROC wafer	Label
ROC0	XF4K3JT	46A
ROC1	XF4K3JT	46B
ROC2	XF4K3JT	47A
ROC3	XF4K3JT	47B
ROC4	XF4K3JT	48A
ROC5	XF4K3JT	57D
ROC6	XF4K3JT	54C
ROC7	XF4K3JT	53D
ROC8	XF4K3JT	52D
ROC9	XF4K3JT	49A

Inspected by Arndt Kirk on date 9/6/2006

LR_dev 0.043

LL_dev 0.037

FINAL COMMENT by Arndt Kirk No assembly problems. No wirebond problem.

PLAQUETTE made READY for testing on 9/6/2006 by Arndt Kirk

PLAQUETTE TESTED on 2006-6-29 by Stacy Kouba

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

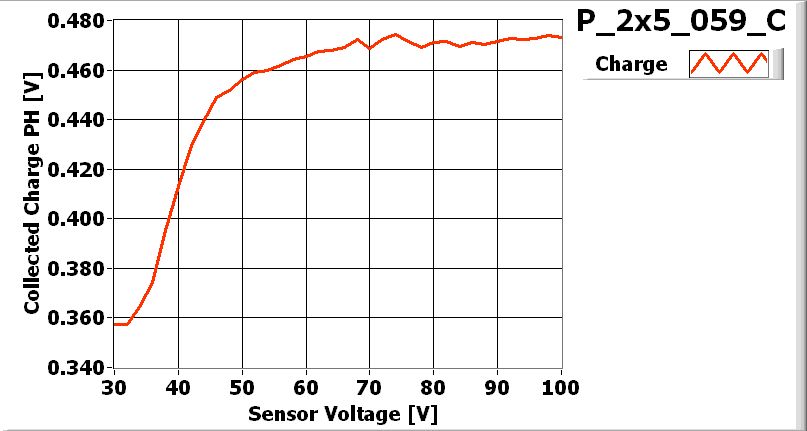

Depletion Voltage 50 V

Operational Voltage 90 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9

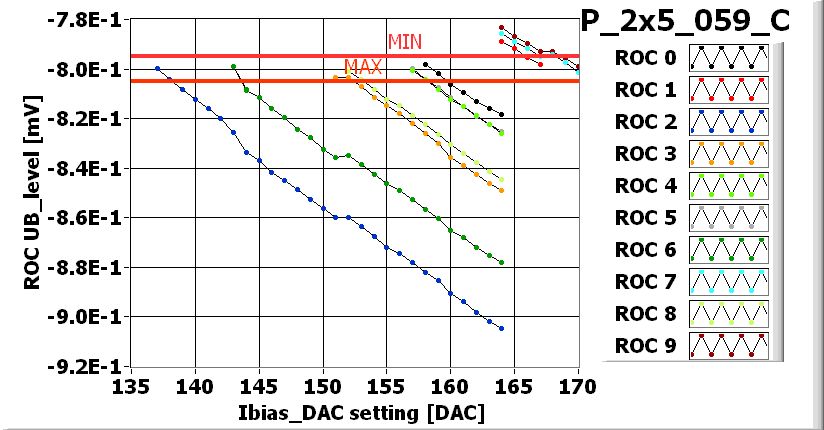

Ibias_DAC	158	167	137	151	157	157	144	170	152	170

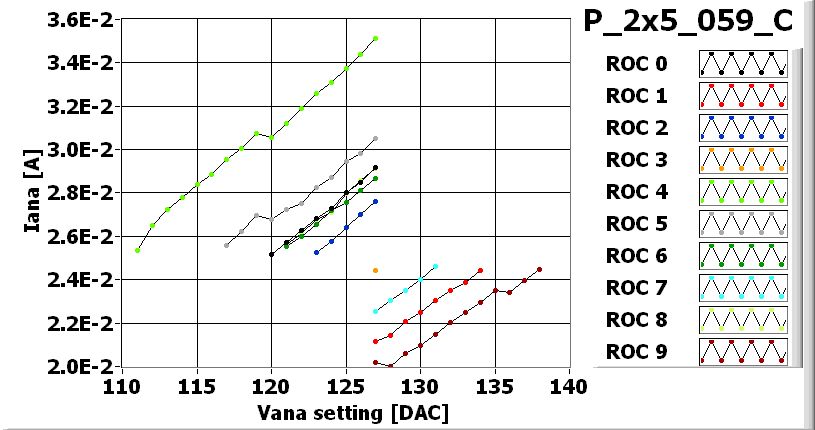

Vana	120	134	123	127	111	117	121	131	121	138
Cal_Del	83	71	85	82	100	104	90	75	74	90
Vthrs_Comp	69	75	69	69	67	62	71	79	74	74
Unbumped	1	0	0	1	16	0	0	1	0	1
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	1	0	0	1	16	0	0	1	0	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-09-11

Plaquette assigned to panel P3R_047
