Sensor: S_2x5_047, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XG4KFCT | 15B |
ROC1 | XG4KFCT | 16B |
ROC2 | XG4KFCT | 17A |
ROC3 | XG4KFCT | 17B |
ROC4 | XG4KFCT | 18A |
ROC5 | XG4KFCT | 13B |
ROC6 | XG4KFCT | 15A |
ROC7 | XG4KFCT | 14B |
ROC8 | XG4KFCT | 14A |
ROC9 | XG4KFCT | 13A |
Ibias_DAC, Ibias_DAC Data | 142 | 156 | 134 | 132 | 150 | 130 | 128 | 142 | 138 | 144 |
Vana, VanaData | 131 | 153 | 118 | 120 | 132 | 123 | 129 | 139 | 116 | 134 |
CalDelData and plots | 84 | 63 | 74 | 84 | 83 | 78 | 85 | 65 | 82 | 75 |
VthrCompData and plots | 76 | 90 | 84 | 63 | 88 | 77 | 73 | 72 | 75 | 86 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 0 | 1 | 1 | 0 | 0 | 1 | 1 | 2 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

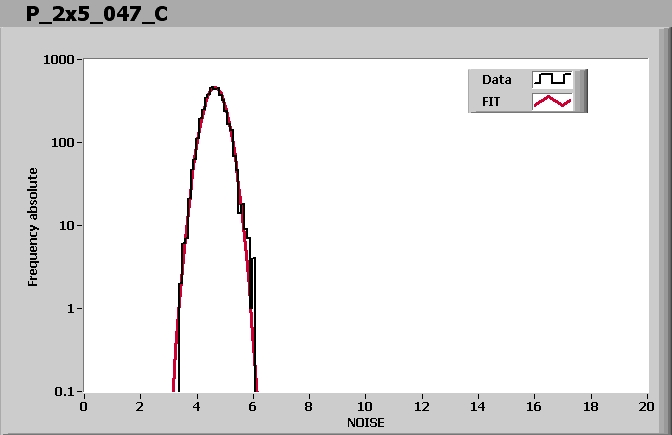

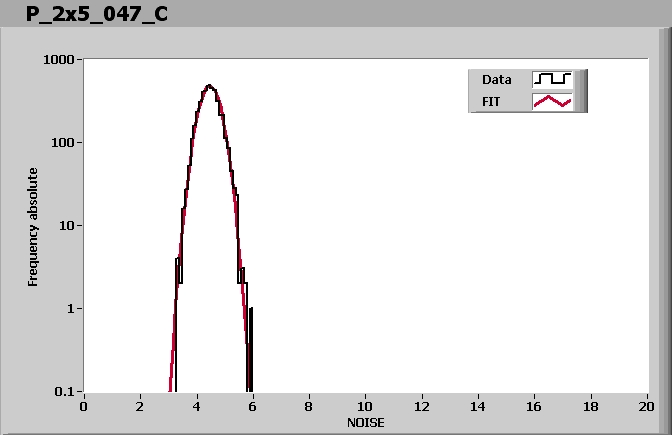

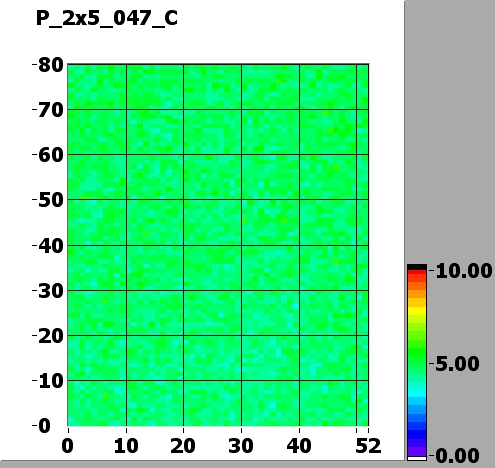

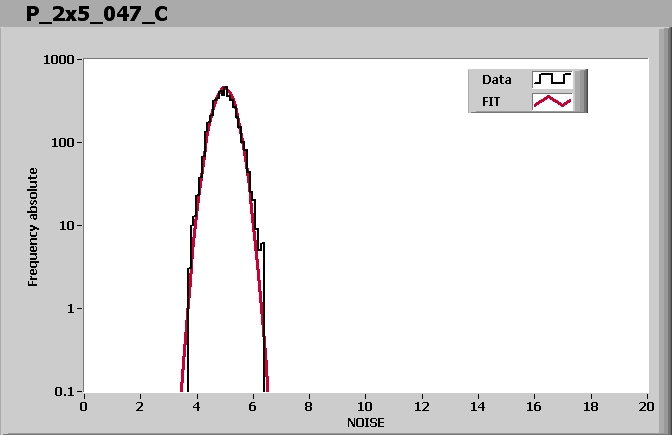

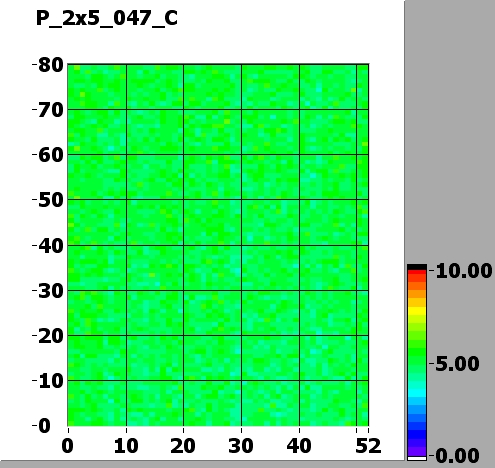

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 115 | 90 | 140 | 115 | 100 | 160 | 120 | 100 | 150 | 115 |
Vsf | 140 | 145 | 135 | 130 | 135 | 135 | 135 | 140 | 140 | 140 |
VoffsetOp | 85 | 120 | 90 | 65 | 105 | 60 | 65 | 80 | 55 | 90 |
VIbias_PH | 100 | 100 | 100 | 95 | 100 | 105 | 100 | 105 | 100 | 100 |
Comment (if any): Okay, IV curve spiked early.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:12 PM
