P_2x5_039

P_2x5_039_A

Parts committed by Bolla Gino on date 10/30/2006

Part	ID
BBM	BBM_039-2x5
VHDI	2x5_237

ROC ROC wafer Label

ROC0 W18_XJ4KT3FT 74D

ROC1 W18_XJ4KT3FT 74A

ROC2 W18_XJ4KT3FT 73C

ROC3 W18_XJ4KT3FT 73B

ROC4 W18_XJ4KT3FT 05D

ROC5 W18_XJ4KT3FT 56C

ROC6 W18_XJ4KT3FT 56D

ROC7 W18_XJ4KT3FT 57A

ROC8 W18_XJ4KT3FT 57B

ROC9 W18_XJ4KT3FT 57C

ROC	ROC wafer	Label
ROC0	W18_XJ4KT3FT	74D
ROC1	W18_XJ4KT3FT	74A
ROC2	W18_XJ4KT3FT	73C
ROC3	W18_XJ4KT3FT	73B
ROC4	W18_XJ4KT3FT	05D
ROC5	W18_XJ4KT3FT	56C
ROC6	W18_XJ4KT3FT	56D
ROC7	W18_XJ4KT3FT	57A
ROC8	W18_XJ4KT3FT	57B
ROC9	W18_XJ4KT3FT	57C

Inspected by Arndt Kirk on date 11/2/2006

LR_dev 0.079

LL_dev 0.074

FINAL COMMENT by Arndt Kirk No assembly problems. No wirebond problem.

PLAQUETTE made READY for testing on 11/2/2006 by Arndt Kirk

PLAQUETTE TESTED on 2006-11-02 by Cameron McKinney

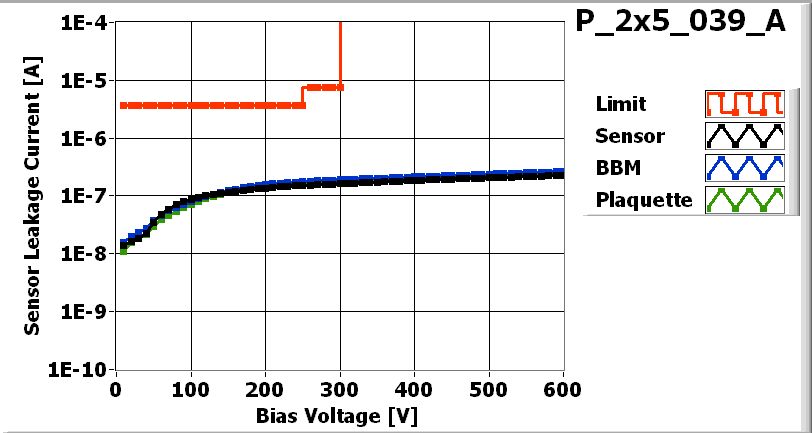

IV_XML-File

Maximum Voltage 600 V

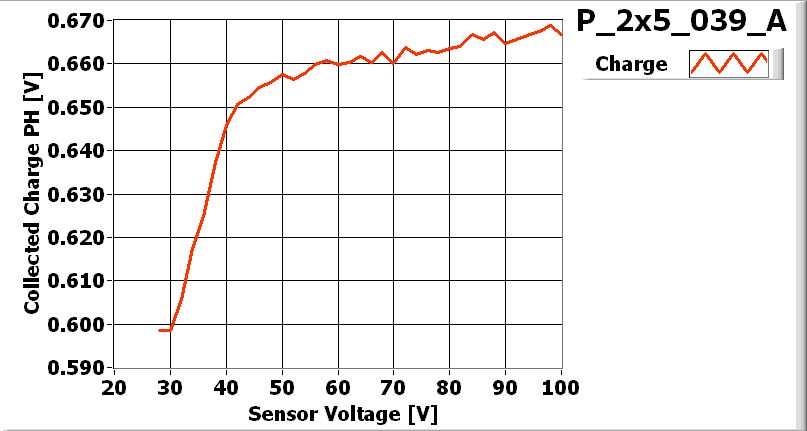

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	153	159	179	163	136	158	173	153	159	159
Vana	126	127	139	129	111	141	141	130	128	125
Cal_Del	79	68	77	74	99	85	75	92	93	89
Vthrs_Comp	80	78	76	78	62	81	80	81	71	76
Unbumped	0	0	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	1	1
Total BAD	0	0	0	0	0	0	0	0	1	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

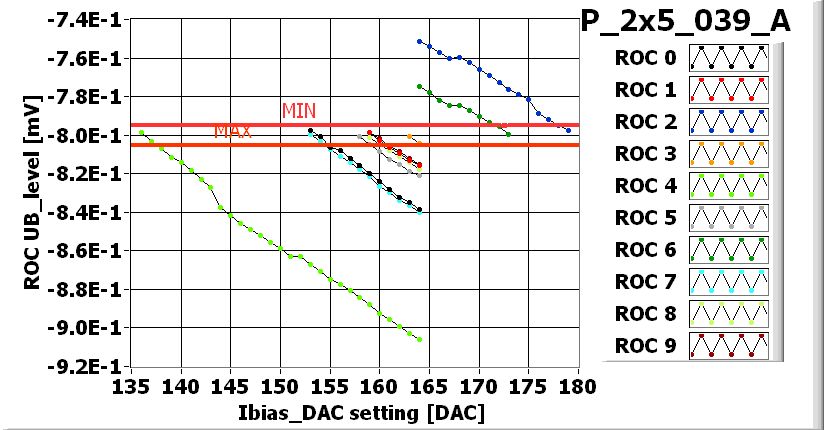

	I_BIAS_DAC_XML-File

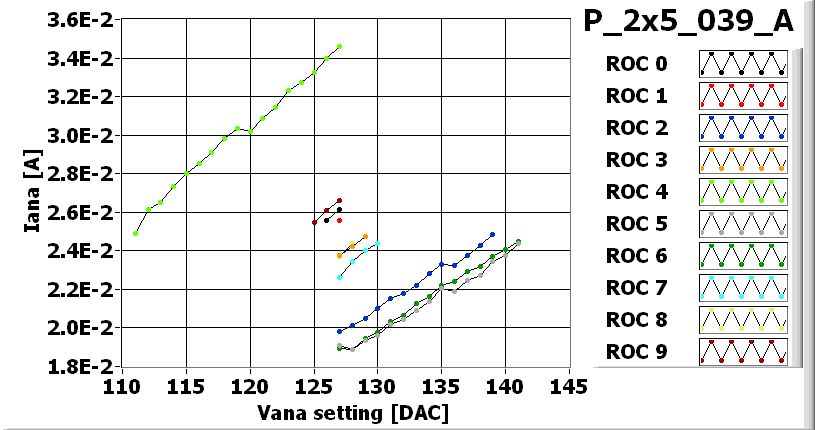

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-11-03

Plaquette assigned to panel P3L_010
