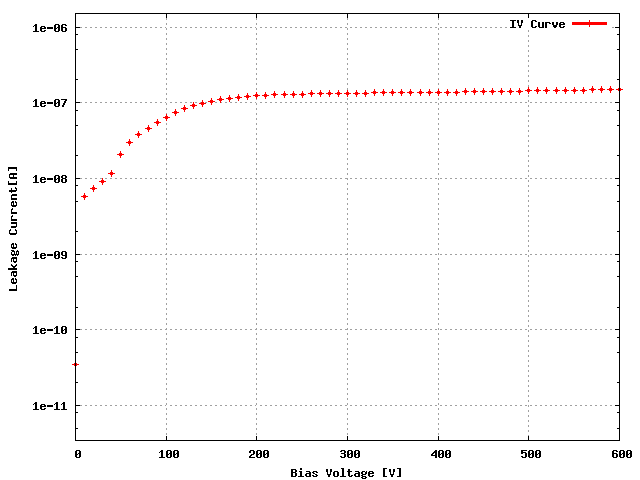

Sensor: S_2x5_035, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W55_D3LQE4T | 52D |
| ROC1 | W55_D3LQE4T | 52C |
| ROC2 | W55_D3LQE4T | 52B |
| ROC3 | W55_D3LQE4T | 52A |
| ROC4 | W55_D3LQE4T | 33A |
| ROC5 | W55_D3LQE4T | 33B |
| ROC6 | W55_D3LQE4T | 33C |
| ROC7 | W55_D3LQE4T | 33D |
| ROC8 | W55_D3LQE4T | 34A |
| ROC9 | W55_D3LQE4T | 34D |
| Ibias_DAC, Ibias_DAC Data | 158 | 172 | 158 | 156 | 150 | 148 | 160 | 148 | 156 | 158 |
| Vana, VanaData | 139 | 154 | 142 | 143 | 140 | 144 | 145 | 145 | 153 | 157 |
| CalDelData and plots | 93 | 80 | 91 | 90 | 75 | 85 | 80 | 93 | 74 | 73 |
| VthrCompData and plots | 86 | 89 | 89 | 90 | 92 | 84 | 92 | 83 | 91 | 93 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 2 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 4 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_2x5_035_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_035_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 115 | 85 | 100 | 105 | 90 | 90 | 105 | 90 | 95 | 95 |
| Vsf | 145 | 150 | 140 | 145 | 140 | 145 | 145 | 150 | 155 | 155 |
| VoffsetOp | 105 | 115 | 105 | 100 | 105 | 95 | 110 | 105 | 115 | 1}UkOqeLIw"C(+, 472o&GQʀ،rBg};Y$am]Jƹ
