P_2x5_029

P_2x5_029_C

Parts committed by Bolla Gino on date CCYY-MM-DD

Part	ID
BBM	BBM_029-2x5
VHDI	2x5_246

ROC ROC wafer Label

ROC0 XI4K3GT 73D

ROC1 XI4K3GT 75D

ROC2 XI4K3GT 73B

ROC3 XI4K3GT 76D

ROC4 XI4K3GT 73A

ROC5 XI4K3GT 74A

ROC6 XI4K3GT 76B

ROC7 XI4K3GT 76A

ROC8 XI4K3GT 75B

ROC9 XI4K3GT 65A

ROC	ROC wafer	Label
ROC0	XI4K3GT	73D
ROC1	XI4K3GT	75D
ROC2	XI4K3GT	73B
ROC3	XI4K3GT	76D
ROC4	XI4K3GT	73A
ROC5	XI4K3GT	74A
ROC6	XI4K3GT	76B
ROC7	XI4K3GT	76A
ROC8	XI4K3GT	75B
ROC9	XI4K3GT	65A

Inspected by Arndt Kirk on date 2006-08-10

LR_dev 0.046

LL_dev 0.045

FINAL COMMENT by Arndt Kirk No problem assembly. No wirebonding problem

PLAQUETTE made READY for testing on 2006-08-10 by Arndt Kirk

PLAQUETTE TESTED on 2006-08-10 by Petra Merkel

IV_XML-File

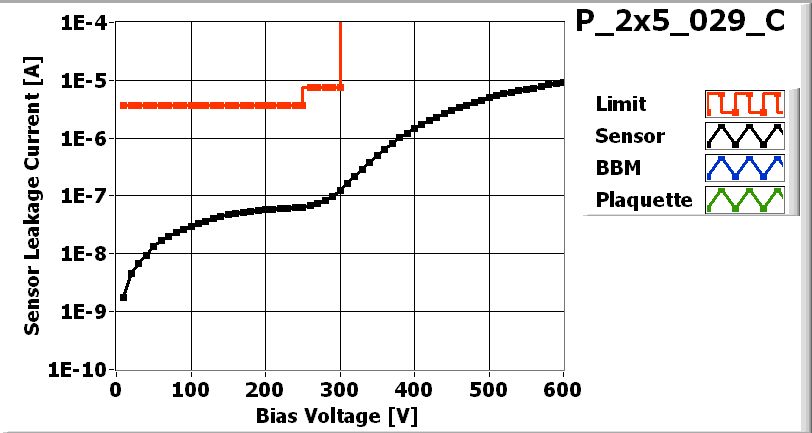

Maximum Voltage 600 V

LASER_XML-File

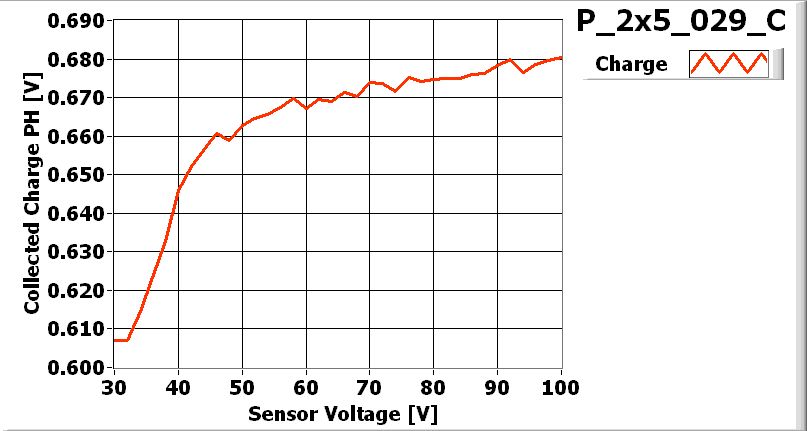

Depletion Voltage 48 V

Operational Voltage 88 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	175	170	167	179	165	179	165	177	170	162
Vana	135	144	135	145	145	149	133	127	127	125
Cal_Del	78	73	73	62	72	73	80	89	70	100
Vthrs_Comp	75	75	78	91	84	82	76	82	80	61
Unbumped	0	1	5	0	0	7	0	1	0	0
Dead	0	0	0	0	0	0	1	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	1	5	0	0	7	1	1	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File

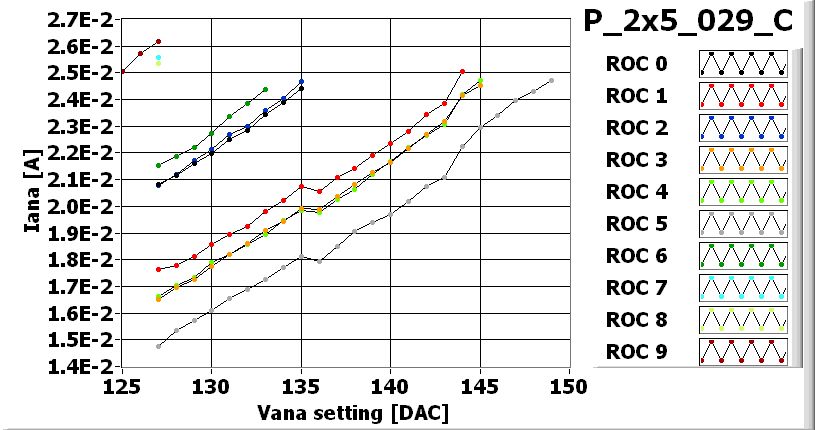

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-08-14
