Sensor: S_2x5_014, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XE4K3KT	05B
ROC1	XE4K3KT	14A
ROC2	XE4K3KT	13B
ROC3	XE4K3KT	13A
ROC4	XE4K3KT	11B
ROC5	XE4K3KT	18A
ROC6	XE4K3KT	18B
ROC7	XE4K3KT	15D
ROC8	XE4K3KT	17D
ROC9	XE4K3KT	12A

Depletion Voltage is -86 and suggested operational voltage is -126

Ibias_DAC, Ibias_DAC Data	132	134	146	130	136	150	126	138	126	128
Vana, VanaData	125	135	138	117	140	158	121	141	137	130
CalDelData and plots	96	73	87	80	104	73	91	72	96	93
VthrCompData and plots	63	84	74	74	74	88	77	80	72	65
TestDdata ,TestD Plots	0	0	64	19	0	0	0	0	0	0
LightData ,Light Plots	0	0	64	28	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	BAD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	BAD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

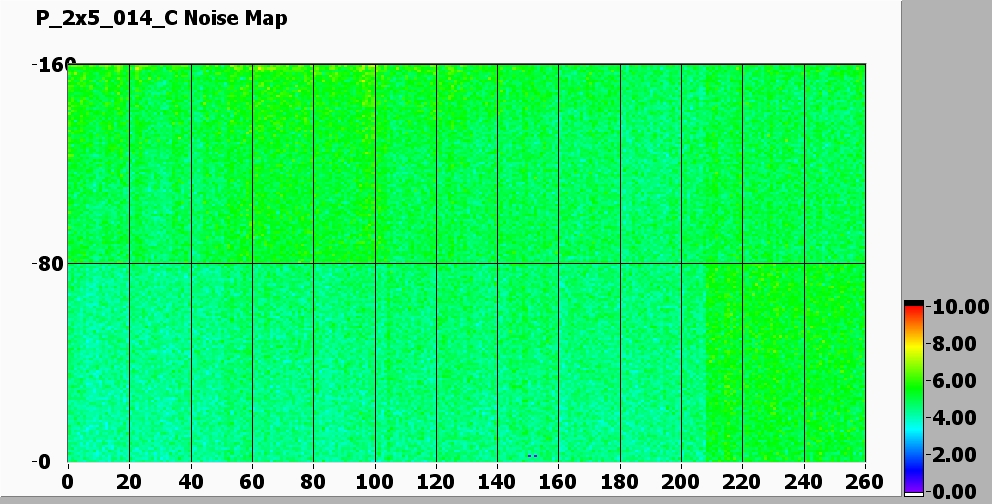

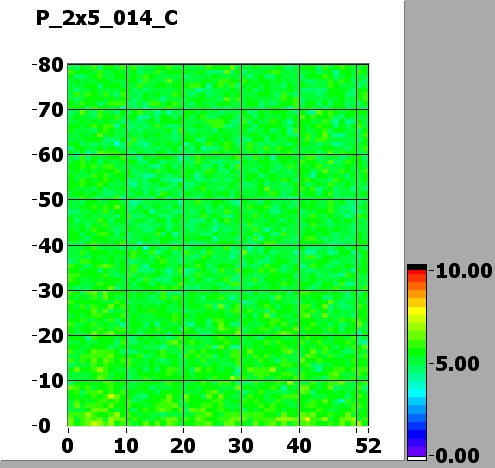

Noise MAP

Efficiency MAP

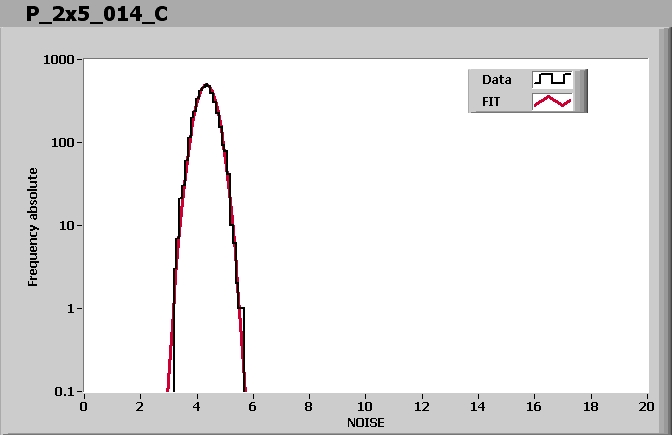

ROC0 NOISE			MEAN = 4.334386 SIGMA = 0.333190

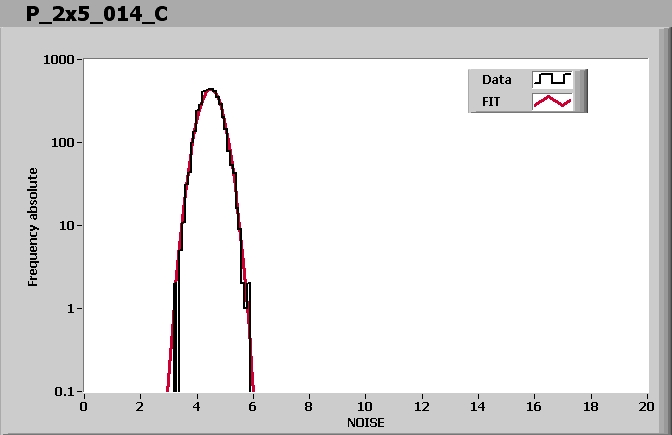

ROC1 NOISE			MEAN = 4.485096 SIGMA = 0.373947

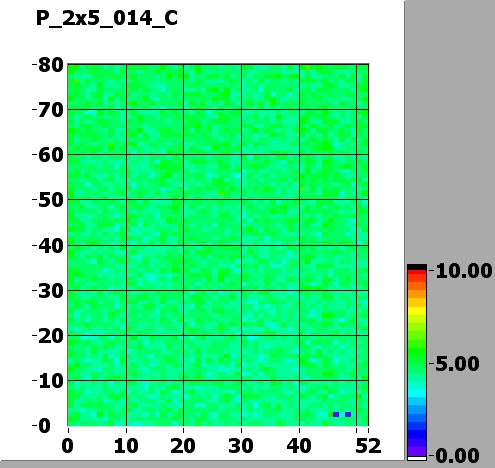

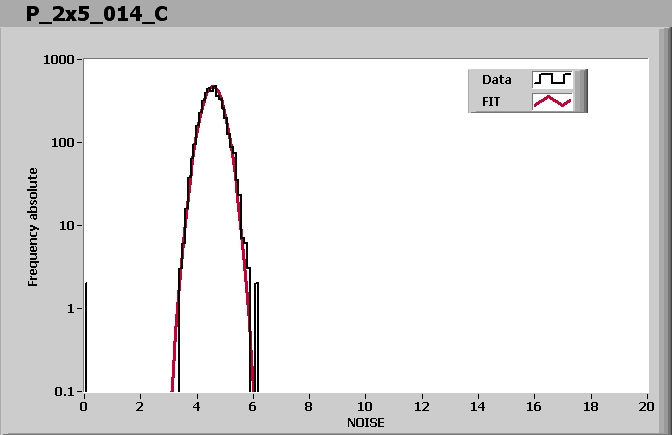

ROC2 NOISE			MEAN = 4.564214 SIGMA = 0.356118
ROC3 NOISE			MEAN = 4.495628 SIGMA = 0.351660

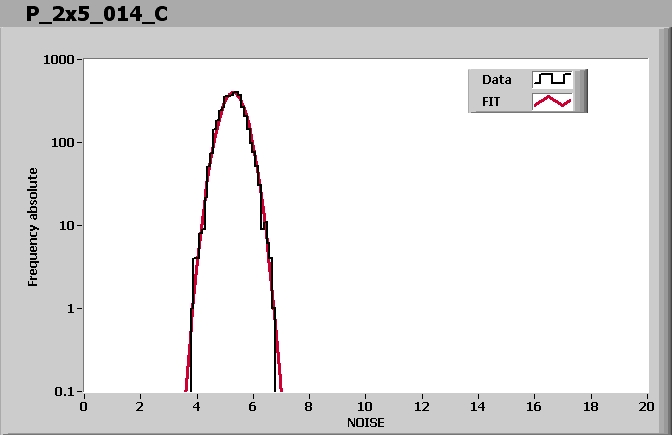

ROC4 NOISE			MEAN = 5.290109 SIGMA = 0.415982

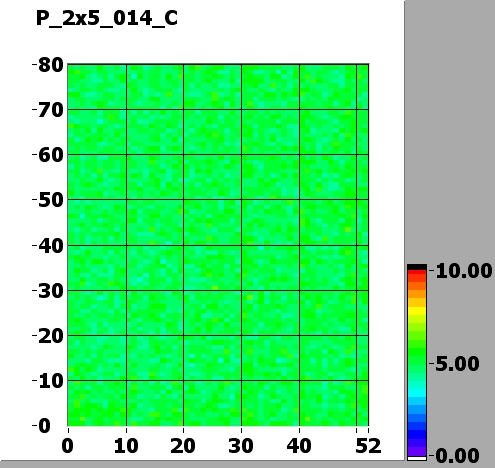

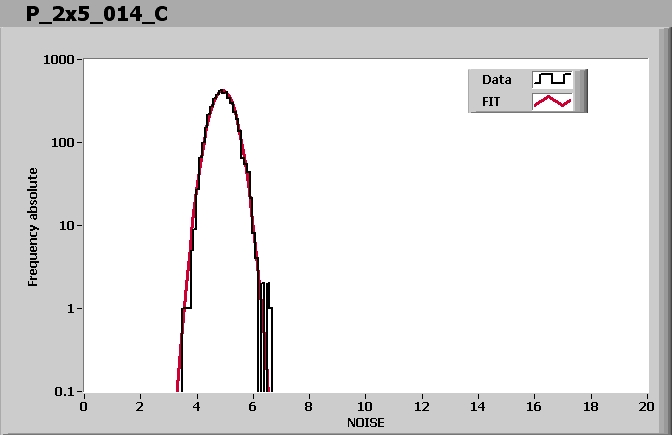

ROC5 NOISE			MEAN = 4.918848 SIGMA = 0.395393

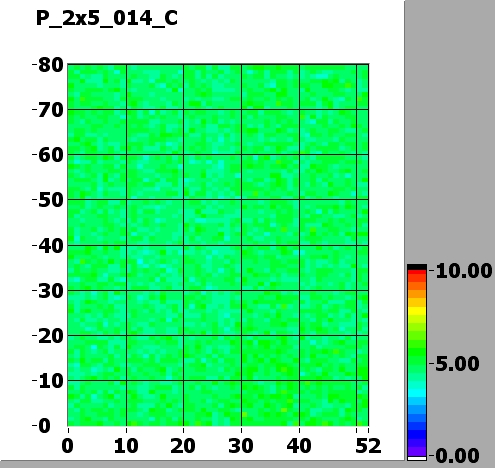

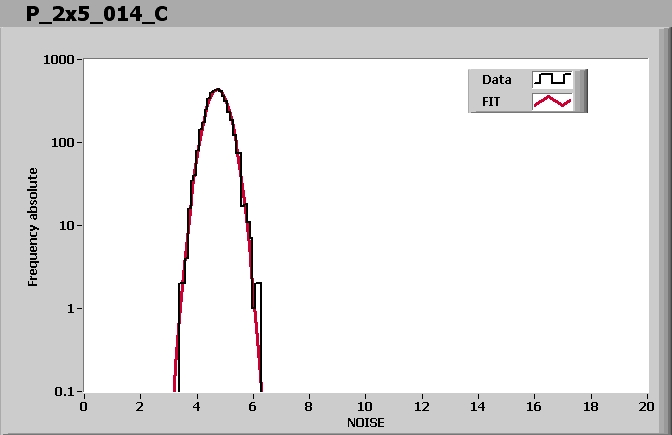

ROC6 NOISE			MEAN = 4.736716 SIGMA = 0.379561
ROC7 NOISE			MEAN = 4.956053 SIGMA = 0.413437
ROC8 NOISE			MEAN = 5.309800 SIGMA = 0.425393

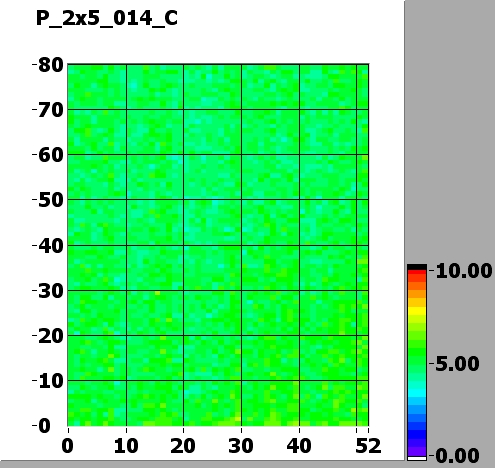

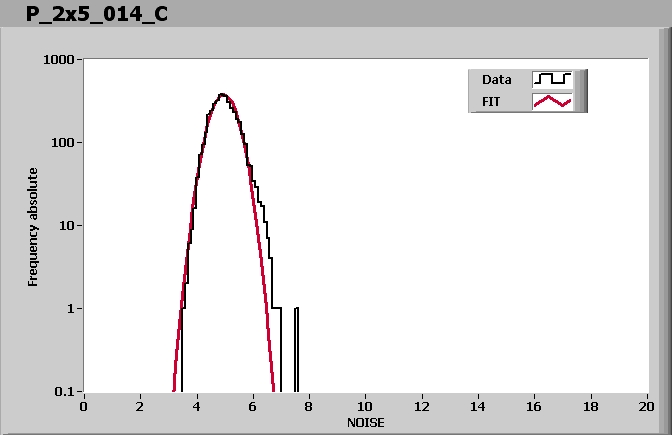

ROC9 NOISE			MEAN = 4.948684 SIGMA = 0.437558

Comment (if any): MANY BAD channels and questionable Laser scan.

End testing time: 9:54 AM
