P_2x5_006

P_2x5_006_A

Parts committed by Bolla Gino on date CCYY-MM-DD

Part	ID
BBM	BBM_006-2x5
VHDI	2x5_215

ROC ROC wafer Label

ROC0 X14JP6T 52C

ROC1 X14JP6T 52A

ROC2 X14JP6T 51D

ROC3 X14JP6T 51C

ROC4 X14JP6T 51B

ROC5 X14JP6T 35B

ROC6 X14JP6T 35C

ROC7 X14JP6T 36A

ROC8 X14JP6T 36B

ROC9 X14JP6T 36C

ROC	ROC wafer	Label
ROC0	X14JP6T	52C
ROC1	X14JP6T	52A
ROC2	X14JP6T	51D
ROC3	X14JP6T	51C
ROC4	X14JP6T	51B
ROC5	X14JP6T	35B
ROC6	X14JP6T	35C
ROC7	X14JP6T	36A
ROC8	X14JP6T	36B
ROC9	X14JP6T	36C

Inspected by Arndt Kirk on date 2006-06-15

LR_dev 0.063

LL_dev 0.074

FINAL COMMENT by Arndt Kirk No problem assembly. No wirebonding problem

PLAQUETTE made READY for testing on 2006-06-15 by Arndt Kirk

PLAQUETTE TESTED on 2006-7-05 by Bolla Gino

IV_XML-File

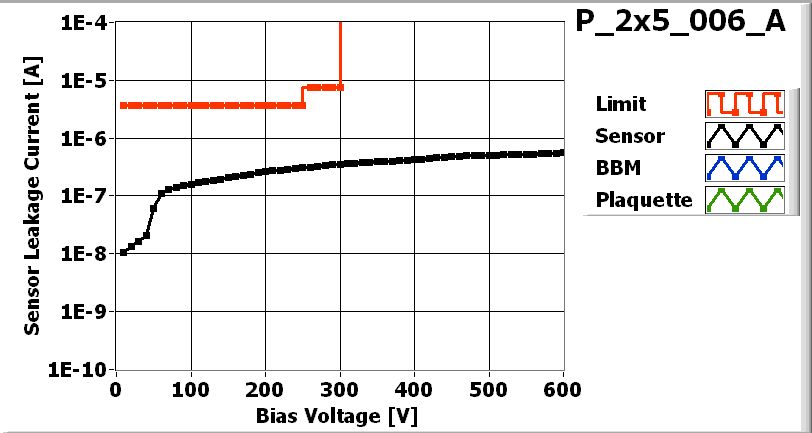

Maximum Voltage 600 V

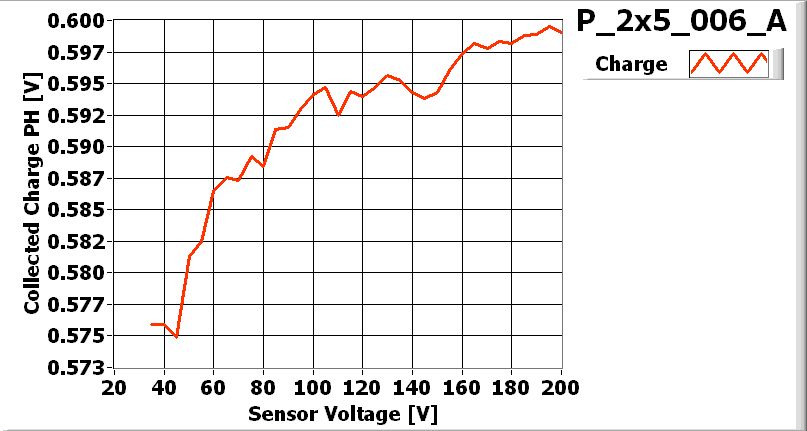

LASER_XML-File

Depletion Voltage 70 V

Operational Voltage 110 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9
Ibias_DAC	173	156	168	148	184	170	163	172	152	160
Vana	139	137	128	113	130	139	132	125	109	114
Cal_Del	84	92	83	91	90	94	91	74	96	89
Vthrs_Comp	91	88	83	74	83	77	81	85	73	77
Unbumped	0	0	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	1
Total BAD	0	0	0	0	0	0	0	0	0	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File

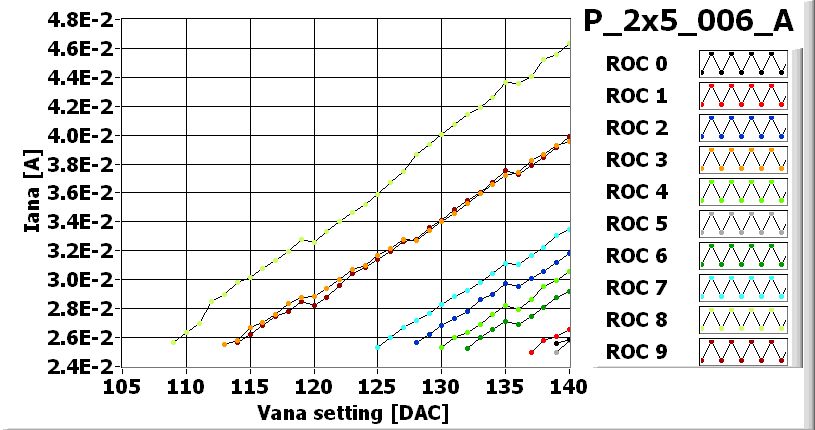

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-07-10
