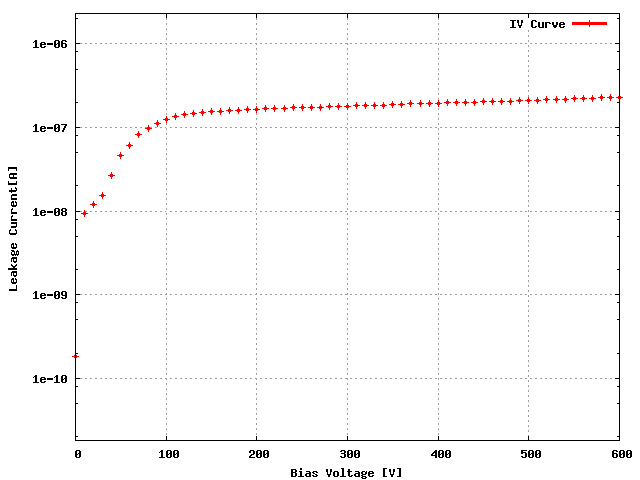

Sensor: S_2x4T_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W46_D3LQC5T | 62C |
ROC1 | W46_D3LQC5T | 62B |
ROC2 | W46_D3LQC5T | 62A |
ROC3 | W46_D3LQC5T | 61D |
ROC4 | W45_D3LQFCT | 11A |
ROC5 | W45_D3LQFCT | 12B |
ROC6 | W45_D3LQFCT | 12C |
ROC7 | W45_D3LQFCT | 13A |
Ibias_DAC, Ibias_DAC Data | 164 | 156 | 144 | 158 | 142 | 146 | 144 | 154 |
Vana, VanaData | 155 | 134 | 134 | 146 | 153 | 155 | 151 | 148 |
CalDelData and plots | 82 | 103 | 78 | 83 | 94 | 92 | 101 | 78 |
VthrCompData and plots | 93 | 78 | 89 | 90 | 86 | 89 | 86 | 86 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 0 | 0 | 0 | 6 | 1 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

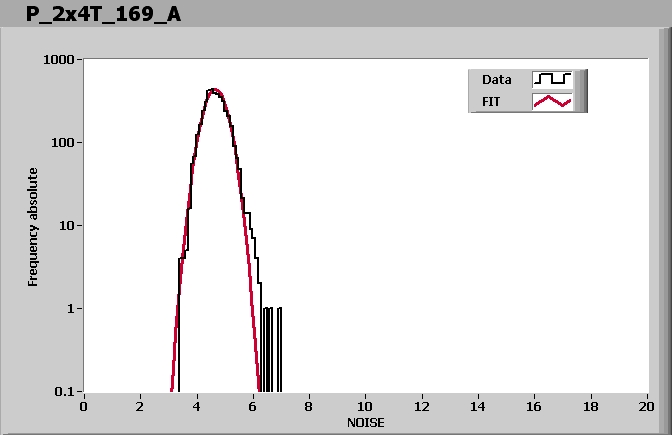

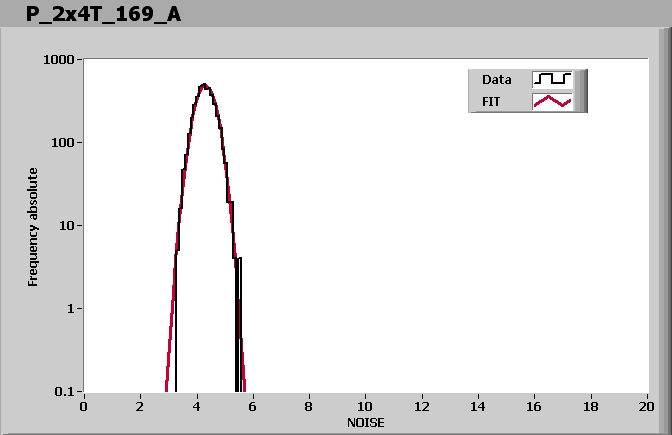

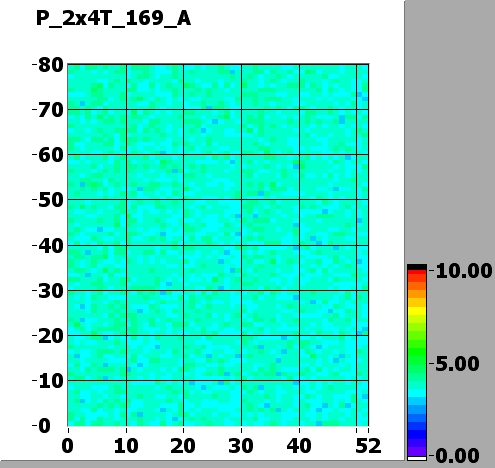

Noise MAP at VMAX
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 100 | 100 | 140 | 95 | 105 | 95 | 100 | 95 |
Vsf | 155 | 140 | 140 | 145 | 150 | 150 | 155 | 145 |
VoffsetOp | 135 | 110 | 85 | 105 | 90 | 100 | 105 | 95 |
VIbias_PH | 100 | 100 | 105 | 105 | 100 | 105 | 105 | 100 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:17 AM
