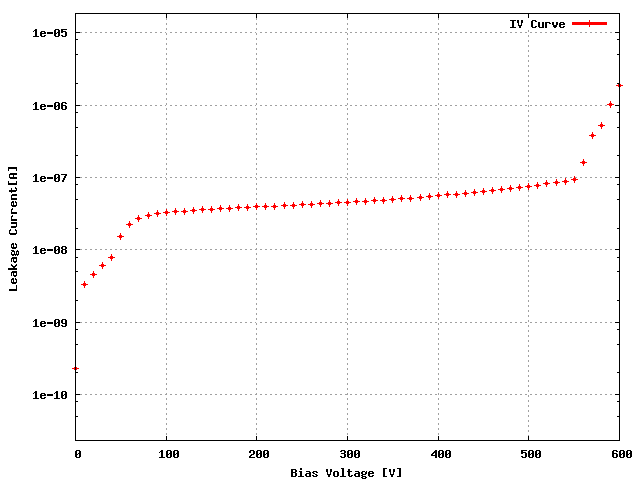

Sensor: S_2x4T_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KNNG0DT	17D
ROC1	KNNG0DT	68A
ROC2	KNNG0DT	68D
ROC3	KNNG0DT	37C
ROC4	KNNG0DT	27A
ROC5	KNNG0DT	37D
ROC6	KNNG0DT	48A
ROC7	KNNG0DT	58C

Depletion Voltage is -52 and suggested operational voltage is -92

Ibias_DAC, Ibias_DAC Data	132	134	134	154	152	136	124	148
Vana, VanaData	121	140	137	141	139	135	130	142
CalDelData and plots	77	91	70	81	76	83	84	76
VthrCompData and plots	67	79	81	77	84	73	73	81
TestDdata ,TestD Plots	0	0	0	0	1	3	0	0
LightData ,Light Plots	0	1	0	0	1	1	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

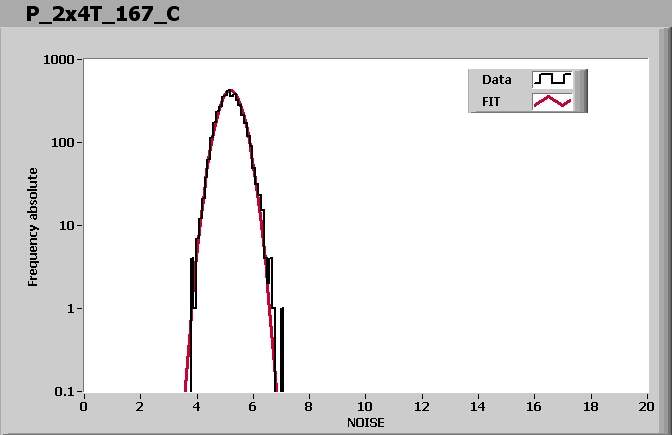

ROC0 NOISE			MEAN = 5.195675 SIGMA = 0.397948
ROC1 NOISE			MEAN = 5.047187 SIGMA = 0.404881
ROC2 NOISE			MEAN = 5.015114 SIGMA = 0.412313

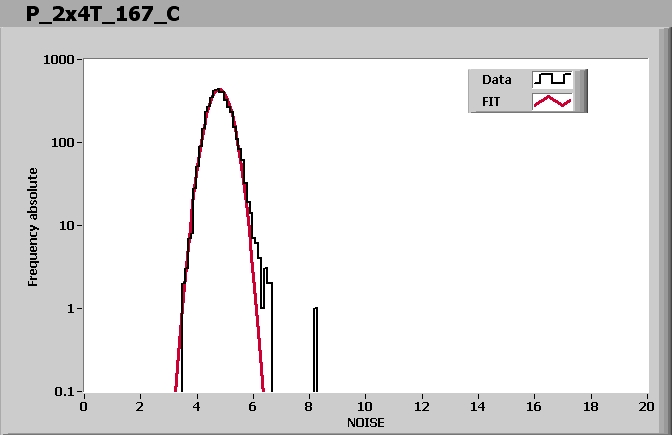

ROC3 NOISE			MEAN = 4.798430 SIGMA = 0.377070

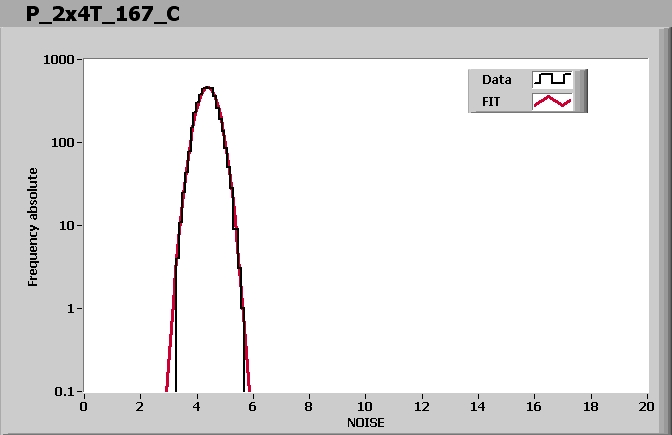

ROC4 NOISE			MEAN = 4.384089 SIGMA = 0.356023
ROC5 NOISE			MEAN = 4.949324 SIGMA = 0.399675

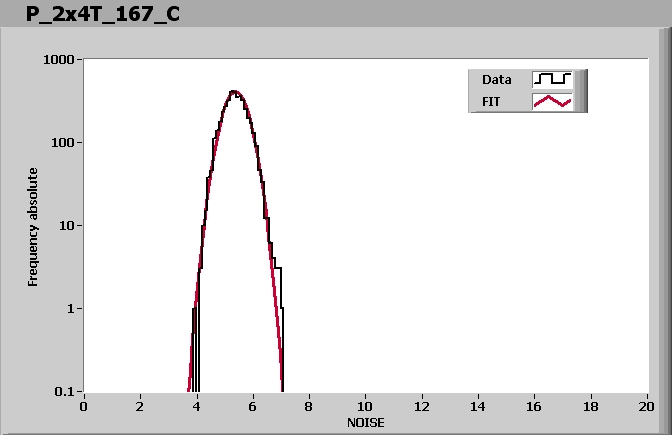

ROC6 NOISE			MEAN = 5.376190 SIGMA = 0.412711
ROC7 NOISE			MEAN = 4.573432 SIGMA = 0.368687

Comment (if any): good

End testing time: 11:04 AM
