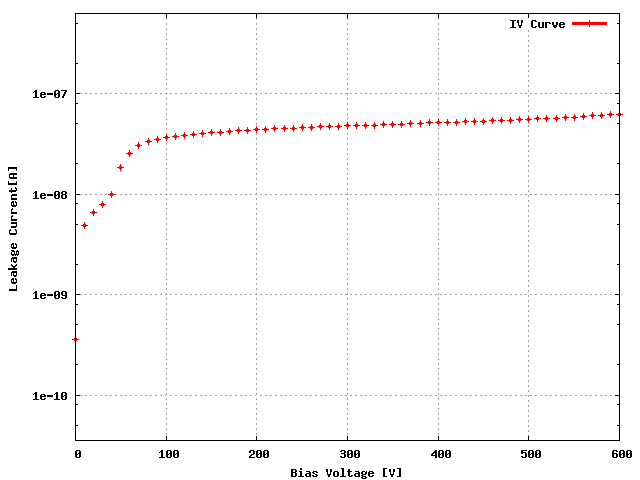

Sensor: S_2x4T_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KBNG0QT	13A
ROC1	KBNG0QT	03B
ROC2	KBNG0QT	53D
ROC3	KBNG0QT	13D
ROC4	KBNG0QT	45A
ROC5	KBNG0QT	43C
ROC6	KBNG0QT	13B
ROC7	KBNG0QT	35D

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	164	152	144	164	158	160	154	160
Vana, VanaData	138	112	141	135	150	130	132	150
CalDelData and plots	63	74	78	76	67	78	77	72
VthrCompData and plots	92	69	74	84	87	75	77	84
TestDdata ,TestD Plots	0	1	0	0	0	1	0	0
LightData ,Light Plots	28	0	0	7	0	0	0	2
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

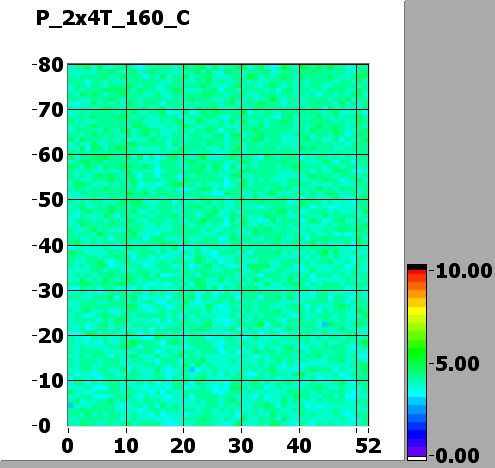

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.017646 SIGMA = 0.312264
ROC1 NOISE			MEAN = 4.146075 SIGMA = 0.327398
ROC2 NOISE			MEAN = 4.319301 SIGMA = 0.346855
ROC3 NOISE			MEAN = 3.861238 SIGMA = 0.302076

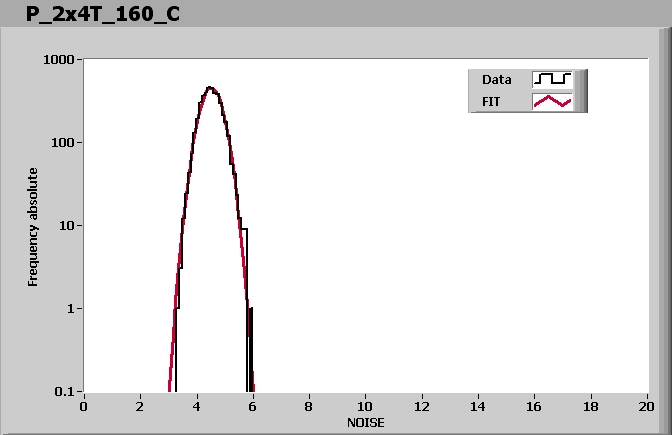

ROC4 NOISE			MEAN = 4.511537 SIGMA = 0.367006

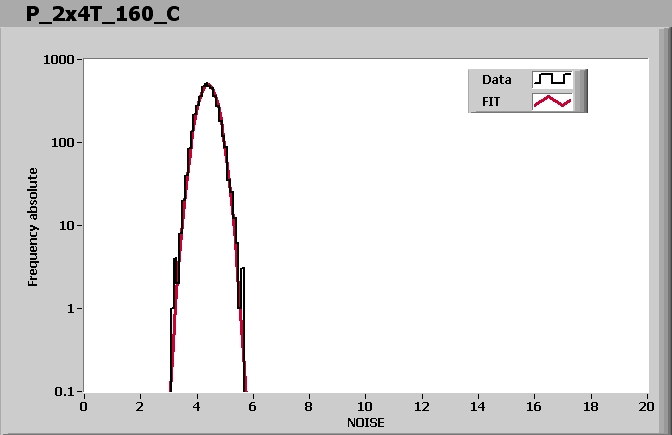

ROC5 NOISE			MEAN = 4.388426 SIGMA = 0.325619

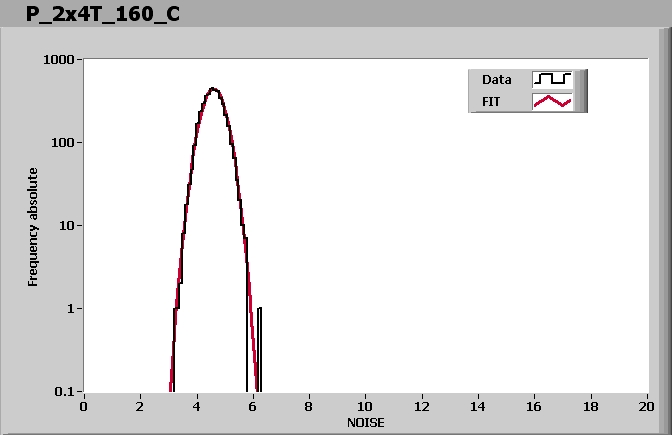

ROC6 NOISE			MEAN = 4.592369 SIGMA = 0.378368

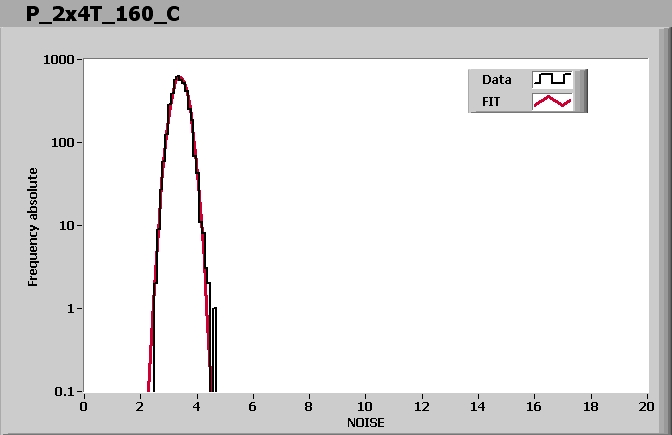

ROC7 NOISE			MEAN = 3.396553 SIGMA = 0.266623

Comment (if any):

End testing time: 3:16 PM
