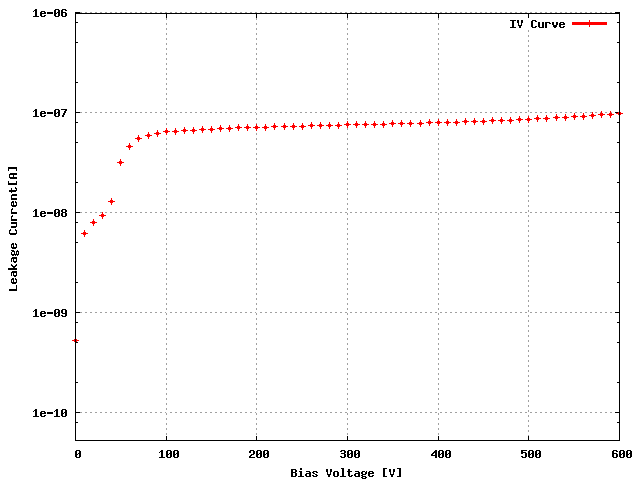

Sensor: S_2x4T_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W29_X64K5ST | 53A |
ROC1 | W29_X64K5ST | 52D |
ROC2 | W29_X64K5ST | 52B |
ROC3 | W31_X44K5UT | 06B |
ROC4 | W29_X64K5ST | 35C |
ROC5 | W29_X64K5ST | 35D |
ROC6 | W29_X64K5ST | 36A |
ROC7 | W29_X64K5ST | 36B |
Ibias_DAC, Ibias_DAC Data | 144 | 142 | 144 | 132 | 140 | 130 | 130 | 132 |
Vana, VanaData | 127 | 135 | 141 | 131 | 147 | 131 | 127 | 127 |
CalDelData and plots | 78 | 59 | 70 | 73 | 72 | 72 | 87 | 88 |
VthrCompData and plots | 82 | 92 | 85 | 80 | 82 | 79 | 77 | 68 | Depletion Voltage is -44 and suggested operational voltage is -84
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 120 | 115 | 95 | 125 | 95 | 120 | 125 | 105 |
Vsf | 140 | 140 | 140 | 140 | 145 | 140 | 140 | 140 |
VoffsetOp | 80 | 85 | 115 | 100 | 85 | 75 | 80 | 80 |
VIbias_PH | 100 | 95 | 95 | 105 | 100 | 105 | 100 | 100 |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:20 PM
