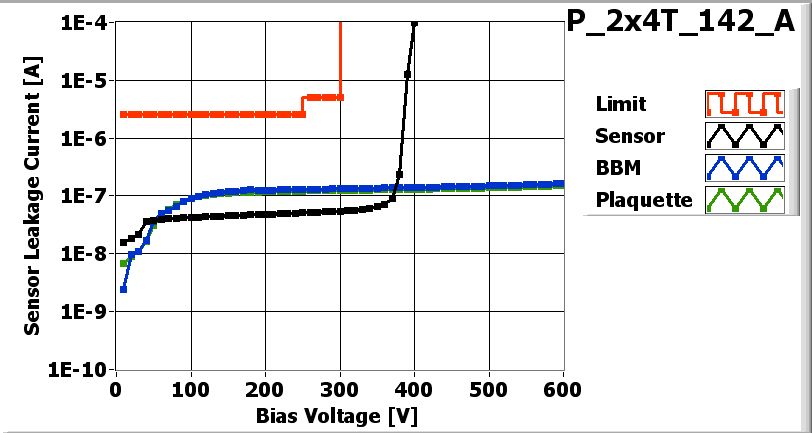

![[IMAGE] of](P_2x4T_142_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

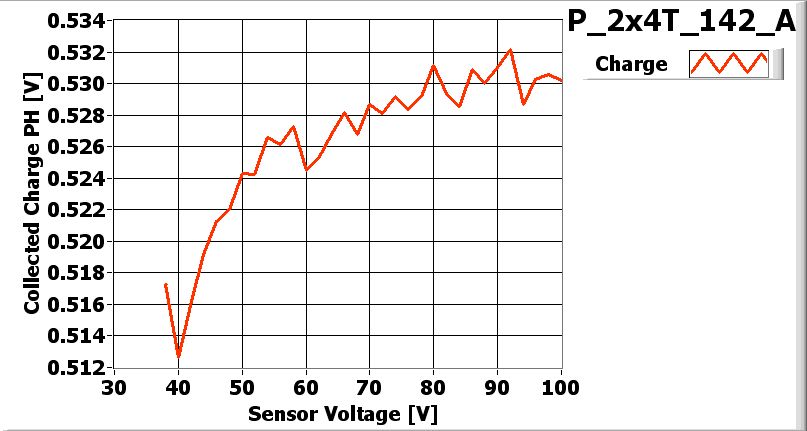

![[IMAGE] of](P_2x4T_142_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 56 V |
| Operational Voltage 96 V |
Parts committed by Arndt Kirk on date 3/1/2007
| Part | ID |
|---|---|
| BBM | BBM_142-2x4T |
| VHDI | 2x4_392 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 37C |
| ROC1 | W34_XA4K3PT | 37B |
| ROC2 | W34_XA4K3PT | 37A |
| ROC3 | W34_XA4K3PT | 36D |
| ROC4 | W34_XA4K3PT | 14C |
| ROC5 | W34_XA4K3PT | 14D |
| ROC6 | W34_XA4K3PT | 15A |
| ROC7 | W34_XA4K3PT | 15B |
Inspected by Lockwood Gale on date 3/6/2007
| LR_dev | 0.060 |
| LL_dev | 0.096 |
| FINAL COMMENT by Lockwood Gale | No assembly problems No wirebonding Problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/6/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/6/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/6/2007 by Ozhan Koybasi
P_2x4T_142_Aon 3/7/2007 10:50 AM
P_2x4T_142_Aon 3/7/2007 10:50 AM
PLAQUETTE TESTED on 2007-03-07 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 152 | 142 | 142 | 144 | 126 | 140 | 148 | 150 | |
| Vana | 151 | 127 | 135 | 138 | 121 | 126 | 140 | 137 | |
| Cal_Del | 72 | 79 | 83 | 90 | 68 | 74 | 79 | 82 | |
| Vthrs_Comp | 84 | 55 | 78 | 72 | 85 | 69 | 85 | 76 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

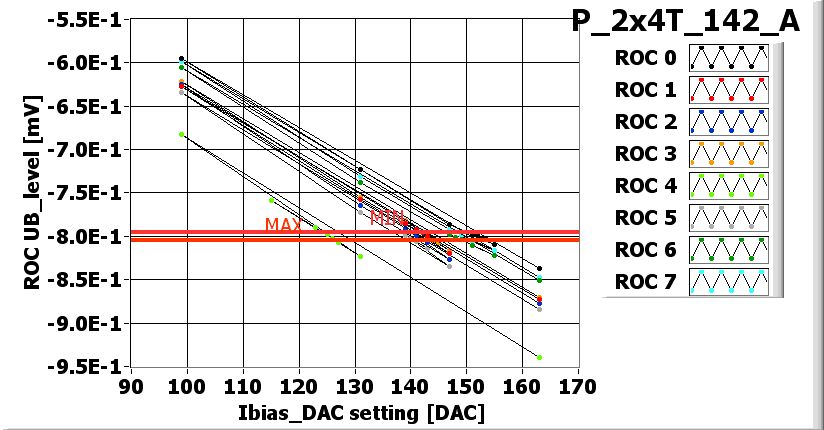

![[IMAGE] of](P_2x4T_142_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

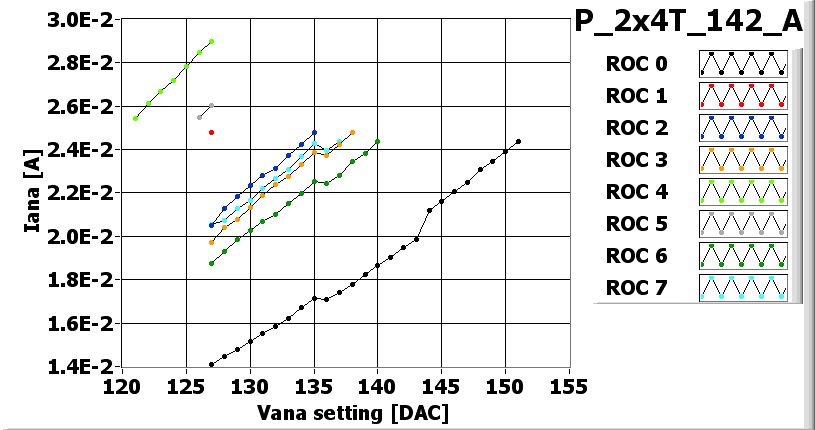

![[IMAGE] of](P_2x4T_142_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_142_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_142_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_142_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_142_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 125 | 130 | 100 | 150 | 110 | 95 | 120 |
| Vsf | 145 | 140 | 145 | 140 | 135 | 140 | 145 | 140 |
| VoffsetOp | 105 | 80 | 85 | 80 | 75 | 70 | 115 | 90 |
| VIbias_PH | 100 | 100 | 100 | 100 | 110 | 105 | 100 | 100 |

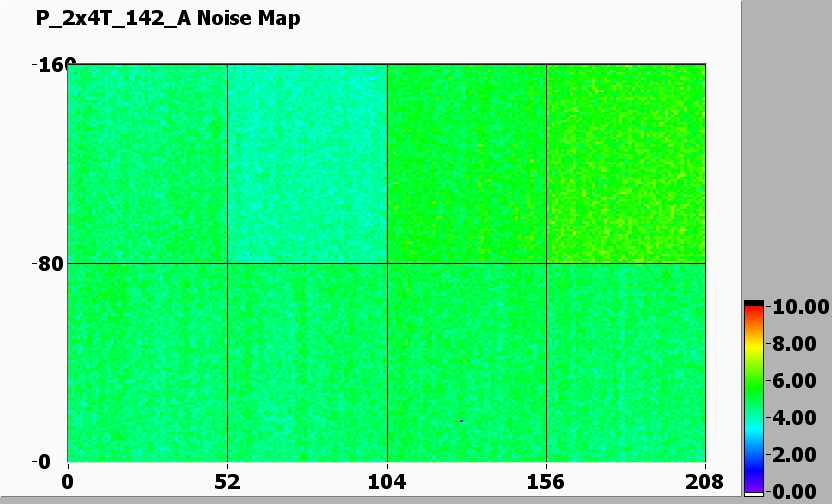

Noise MAP
![[IMAGE] of](P_2x4T_142_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_142_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
