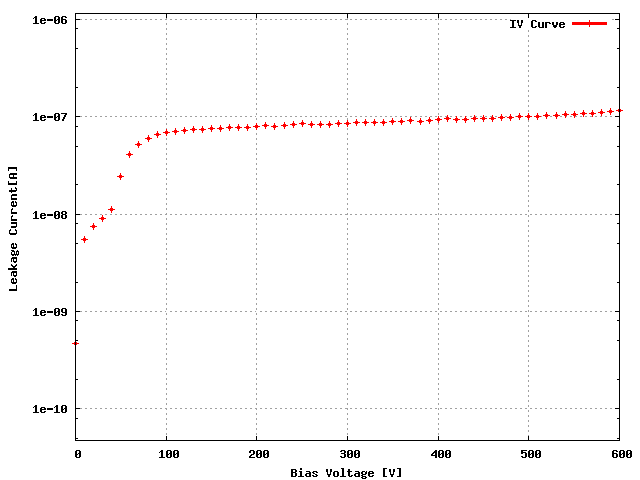

Sensor: S_2x4T_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W36_XD4K3LT | 42C |
ROC1 | W36_XD4K3LT | 42B |
ROC2 | W36_XD4K3LT | 42A |
ROC3 | W36_XD4K3LT | 41D |
ROC4 | W36_XD4K3LT | 68C |
ROC5 | W36_XD4K3LT | 61C |
ROC6 | W36_XD4K3LT | 62A |
ROC7 | W36_XD4K3LT | 62B |
Ibias_DAC, Ibias_DAC Data | 150 | 136 | 138 | 140 | 148 | 146 | 144 | 140 |
Vana, VanaData | 150 | 113 | 144 | 143 | 133 | 134 | 122 | 115 |
CalDelData and plots | 63 | 77 | 80 | 82 | 88 | 72 | 96 | 90 |
VthrCompData and plots | 86 | 69 | 79 | 83 | 84 | 87 | 66 | 59 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 |
LightData ,Light Plots | 0 | 1 | 0 | 3 | 0 | 0 | 0 | 1 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

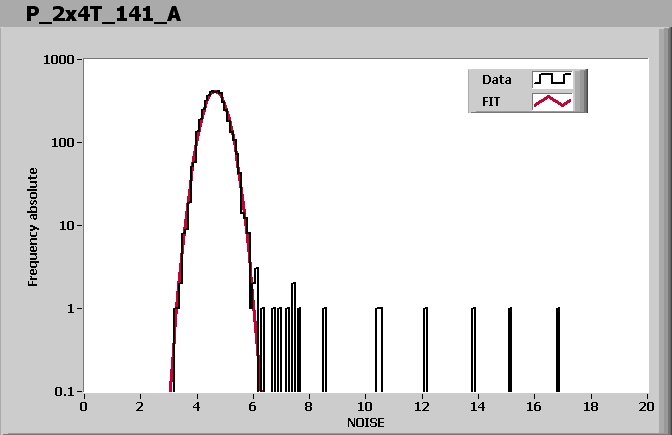

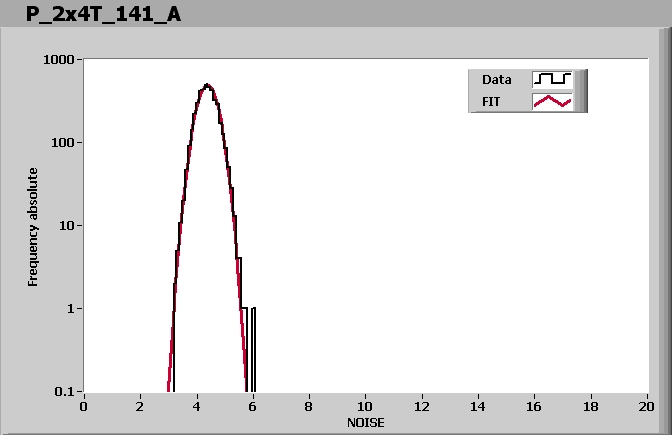

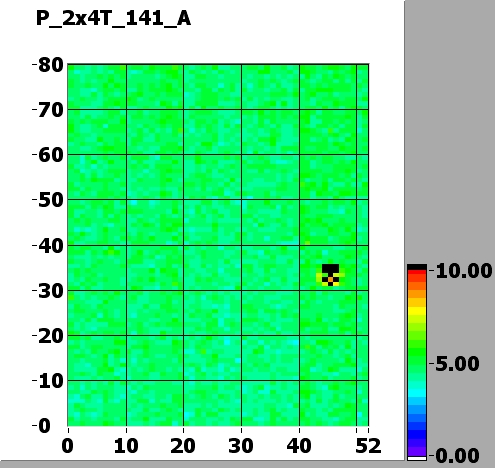

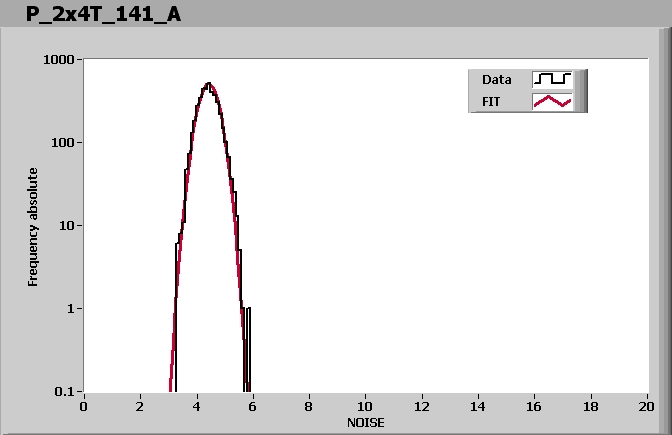

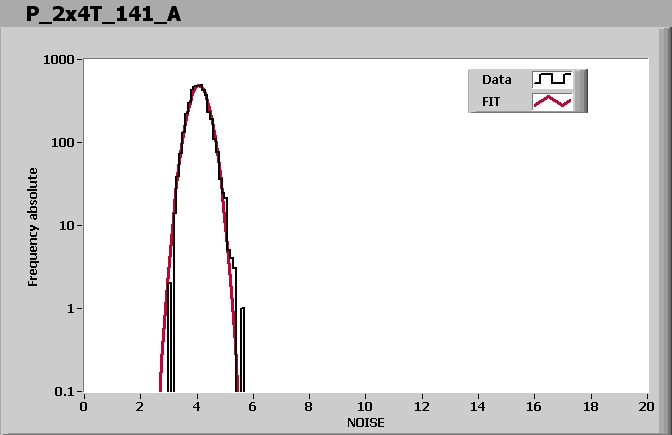

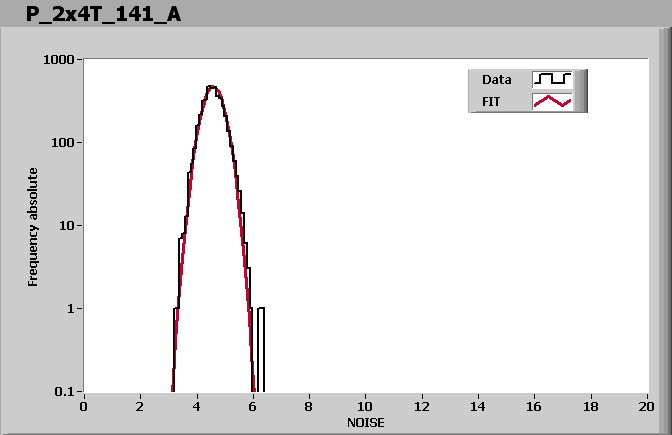

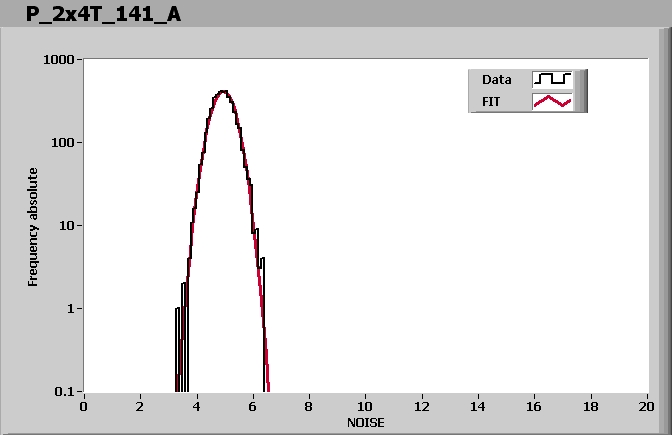

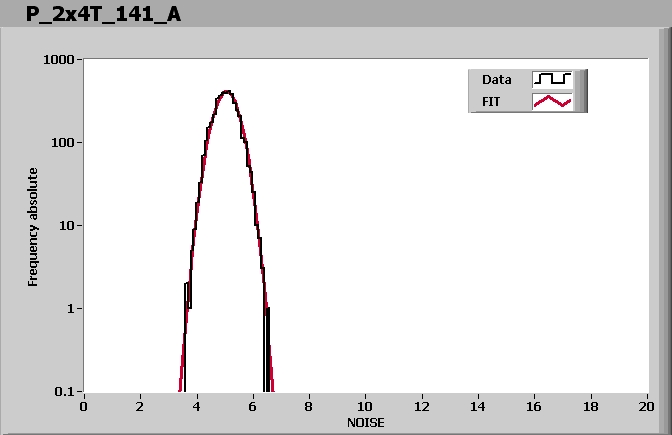

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 90 | 155 | 95 | 85 | 140 | 110 | 130 | 135 |
Vsf | 145 | 140 | 145 | 140 | 140 | 140 | 140 | 135 |
VoffsetOp | 95 | 75 | 85 | 90 | 90 | 75 | 75 | 55 |
VIbias_PH | 100 | 95 | 100 | 95 | 95 | 100 | 95 | 95 |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:54 PM
