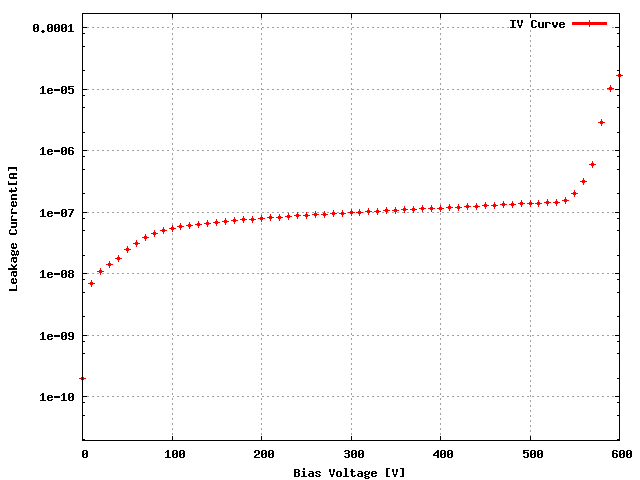

Sensor: S_2x4T_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	DULQEDT	65B
ROC1	DULQEDT	25B
ROC2	DULQEDT	15C
ROC3	DULQEDT	26A
ROC4	DULQEDT	44A
ROC5	DULQEDT	24C
ROC6	DULQEDT	24B
ROC7	DULQEDT	54C

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data	156	148	150	144	154	150	160	146
Vana, VanaData	137	134	143	140	149	129	140	130
CalDelData and plots	71	78	80	83	80	99	81	82
VthrCompData and plots	88	89	92	85	92	83	78	78
TestDdata ,TestD Plots	1	1	0	1	0	0	9	1
LightData ,Light Plots	3	1	0	4	6	0	1	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

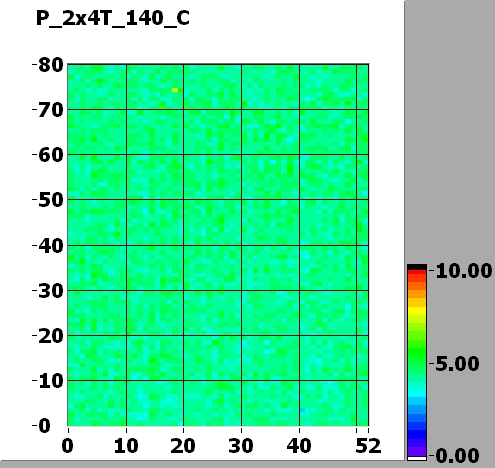

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

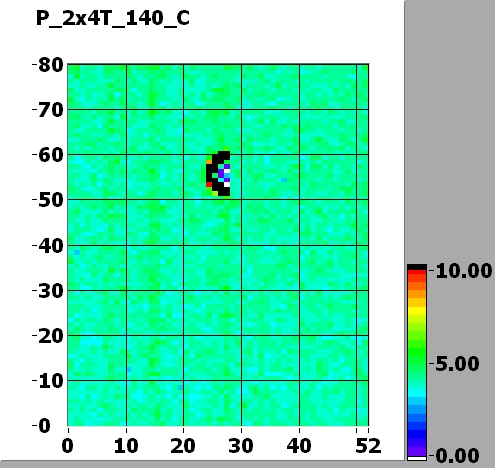

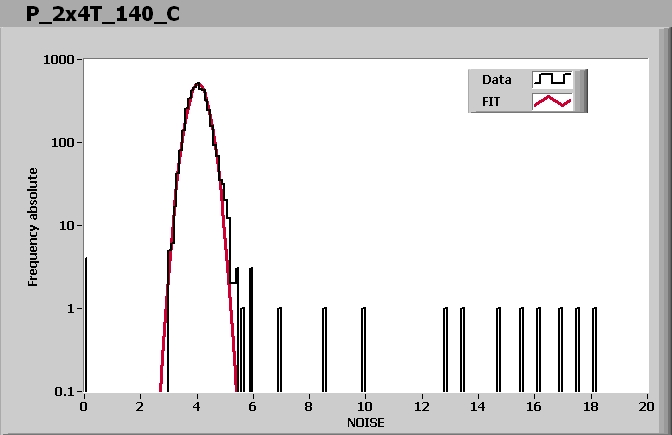

ROC0 NOISE			MEAN = 4.049698 SIGMA = 0.324987
ROC1 NOISE			MEAN = 3.842166 SIGMA = 0.310588
ROC2 NOISE			MEAN = 4.919891 SIGMA = 0.373639

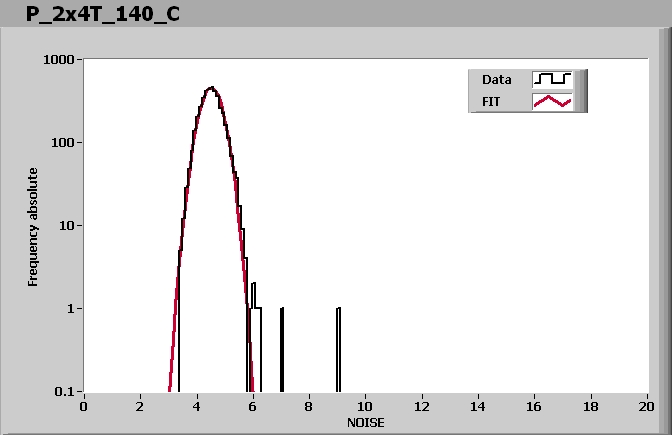

ROC3 NOISE			MEAN = 4.510777 SIGMA = 0.363201

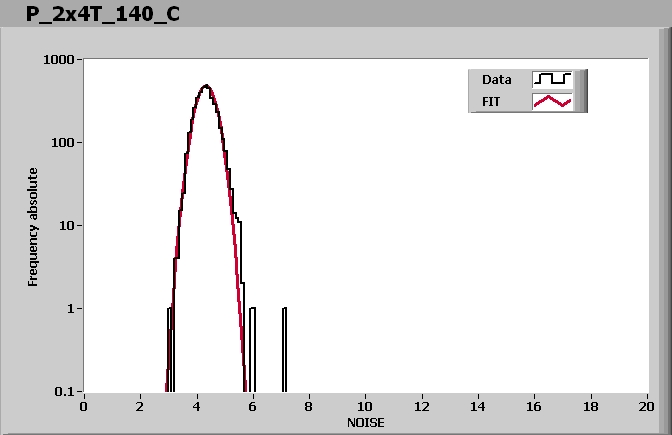

ROC4 NOISE			MEAN = 4.320634 SIGMA = 0.341126
ROC5 NOISE			MEAN = 4.255708 SIGMA = 0.349381

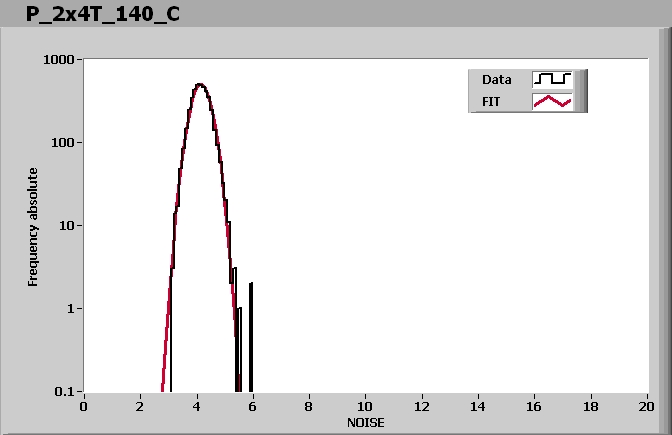

ROC6 NOISE			MEAN = 4.143831 SIGMA = 0.329844
ROC7 NOISE			MEAN = 4.558622 SIGMA = 0.369759

Comment (if any):

End testing time: 11:33 AM
