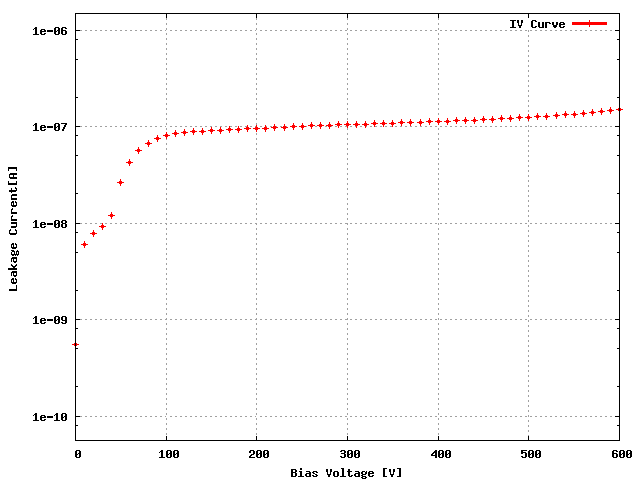

Sensor: S_2x4T_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W19_XN4K38T | 06A |
ROC1 | W19_XN4K38T | 05D |
ROC2 | W19_XN4K38T | 05C |
ROC3 | W19_XN4K38T | 32D |
ROC4 | W19_XN4K38T | 22B |
ROC5 | W19_XN4K38T | 22C |
ROC6 | W19_XN4K38T | 18C |
ROC7 | W19_XN4K38T | 23B |
Ibias_DAC, Ibias_DAC Data | 129 | 136 | 148 | 138 | 132 | 144 | 139 | 125 |
Vana, VanaData | 114 | 121 | 133 | 145 | 121 | 127 | 133 | 124 |
CalDelData and plots | 100 | 94 | 71 | 62 | 70 | 80 | 78 | 85 |
VthrCompData and plots | 73 | 72 | 79 | 90 | 72 | 76 | 72 | 72 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Okay
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:45 PM
