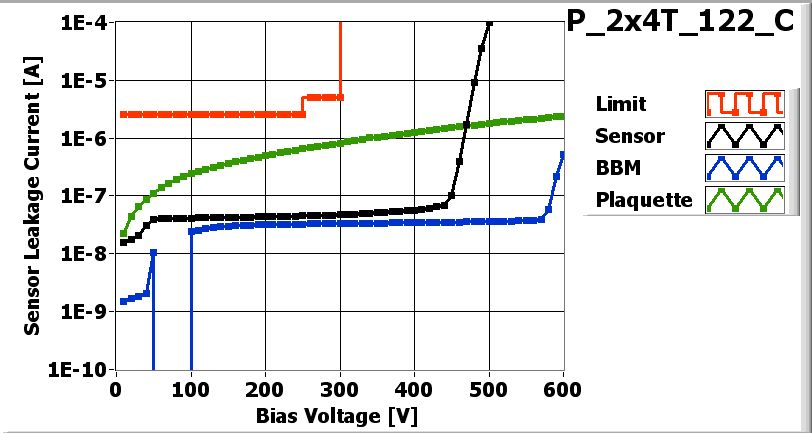

![[IMAGE] of](P_2x4T_122_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

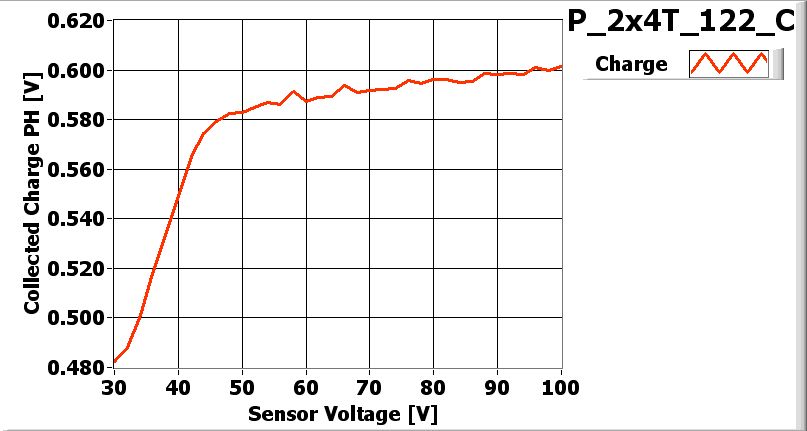

![[IMAGE] of](P_2x4T_122_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_122-2x4T |
| VHDI | 2x4_701 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 52D |
| ROC1 | KMNG2DT | 52B |
| ROC2 | KMNG2DT | 62C |
| ROC3 | KMNG2DT | 62B |
| ROC4 | KMNG2DT | 62D |
| ROC5 | KMNG2DT | 23D |
| ROC6 | KMNG2DT | 53B |
| ROC7 | KMNG2DT | 43B |
Inspected by Lockwood Gale on date 5/29/2007
| LR_dev | 0.056 |
| LL_dev | 0.029 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/29/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/29/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/29/2007 by Perera Rajiv
P_2x4T_122_Con 5/30/2007 9:26 AM
P_2x4T_122_Con 5/30/2007 9:26 AM
PLAQUETTE TESTED on 2007-05-30 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 160 | 160 | 170 | 150 | 158 | 170 | 156 | 170 | |
| Vana | 144 | 128 | 151 | 124 | 127 | 140 | 143 | 131 | |
| Cal_Del | 86 | 80 | 69 | 85 | 74 | 82 | 82 | 80 | |
| Vthrs_Comp | 85 | 83 | 85 | 76 | 79 | 80 | 85 | 82 | |
| Unbumped | 0 | 0 | 0 | 1 | 1 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 1 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

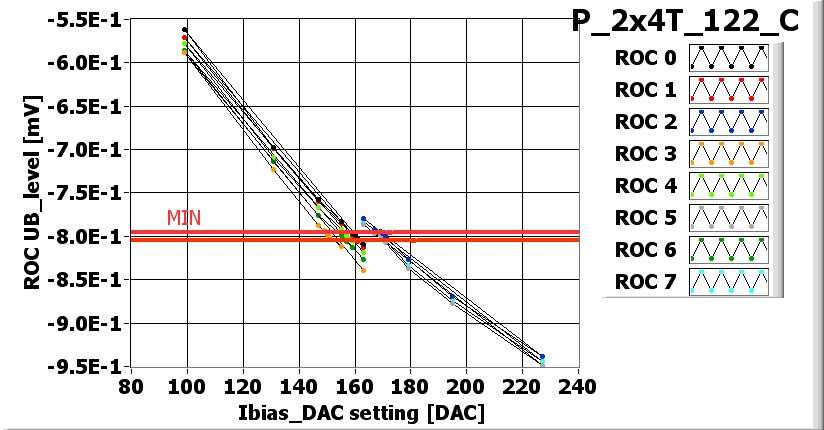

![[IMAGE] of](P_2x4T_122_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

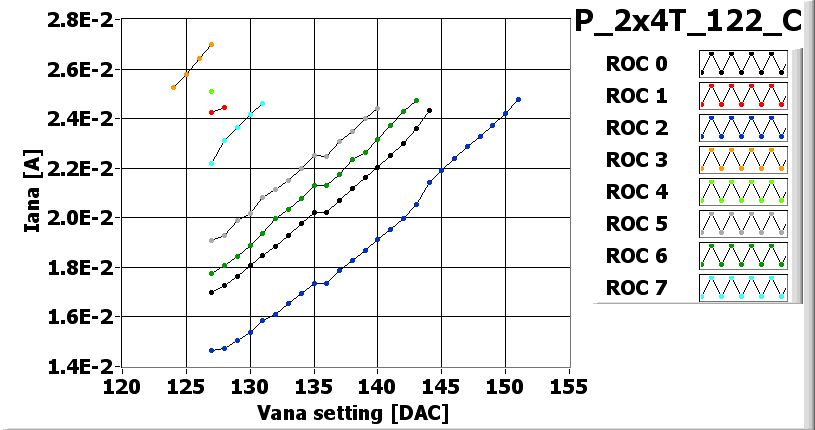

![[IMAGE] of](P_2x4T_122_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_122_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_122_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_122_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_122_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 130 | 95 | 125 | 130 | 105 | 90 | 110 |
| Vsf | 145 | 140 | 145 | 135 | 140 | 140 | 140 | 140 |
| VoffsetOp | 105 | 75 | 115 | 95 | 85 | 90 | 105 | 115 |
| VIbias_PH | 100 | 105 | 100 | 95 | 100 | 100 | 100 | 95 |

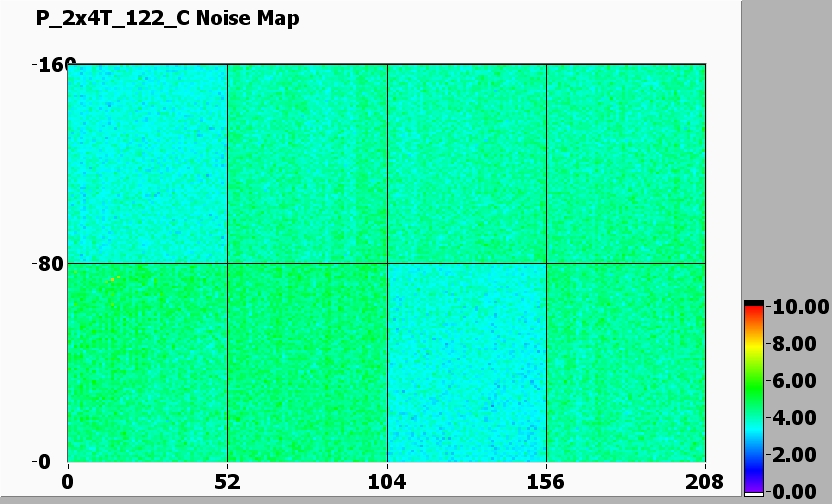

Noise MAP at VMAX
![[IMAGE] of](P_2x4T_122_C-580-noise.jpg)

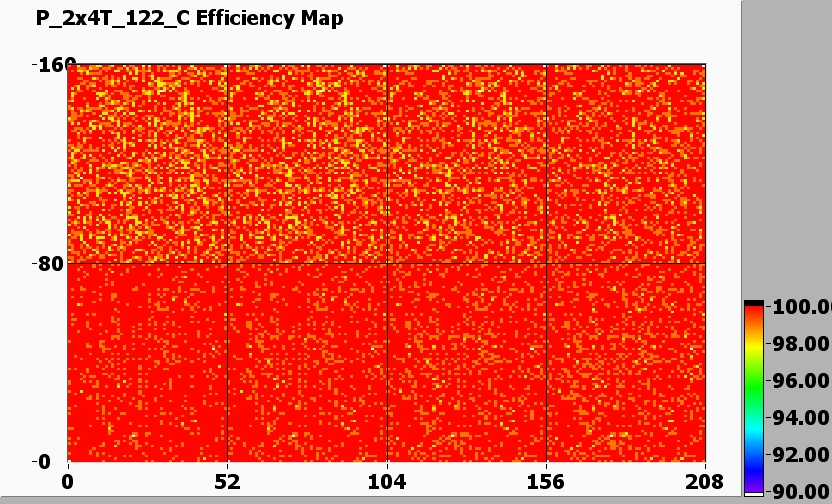

Efficiency MAP
![[IMAGE] of](P_2x4T_122_C-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x4T_122_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_122_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
