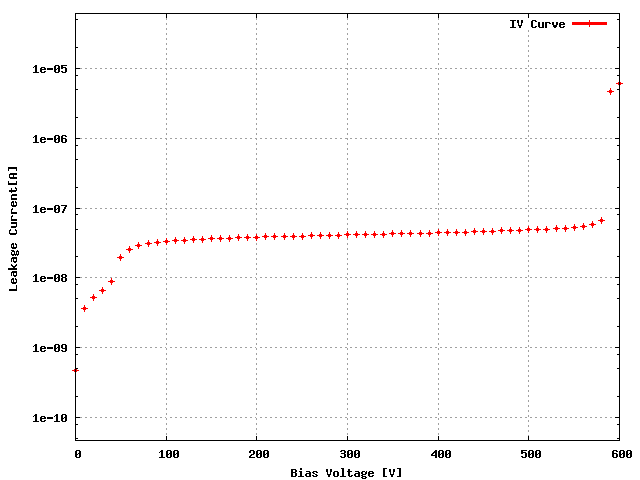

Sensor: S_2x4T_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | X94KFJT | 45C |
ROC1 | X94KFJT | 45D |
ROC2 | X94KFJT | 55B |
ROC3 | X94KFJT | 55A |
ROC4 | X94KFJT | 35C |
ROC5 | X94KFJT | 16A |
ROC6 | X94KFJT | 16C |
ROC7 | X94KFJT | 06A |
Ibias_DAC, Ibias_DAC Data | 138 | 130 | 140 | 146 | 132 | 132 | 132 | 140 |
Vana, VanaData | 142 | 129 | 146 | 125 | 127 | 132 | 123 | 132 |
CalDelData and plots | 68 | 76 | 74 | 82 | 84 | 79 | 82 | 93 |
VthrCompData and plots | 82 | 71 | 82 | 69 | 68 | 67 | 68 | 78 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 1 | 0 | 0 | 1 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

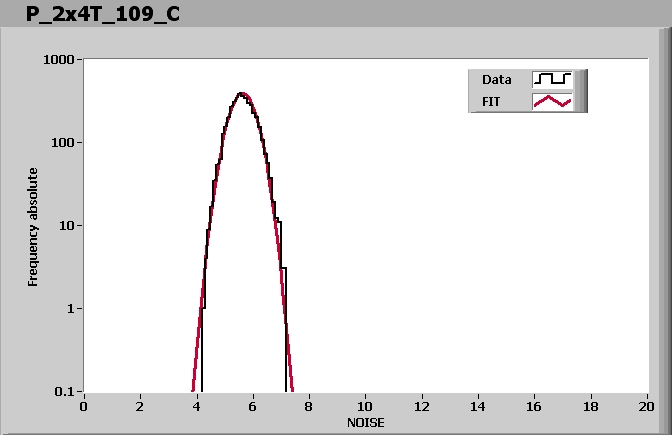

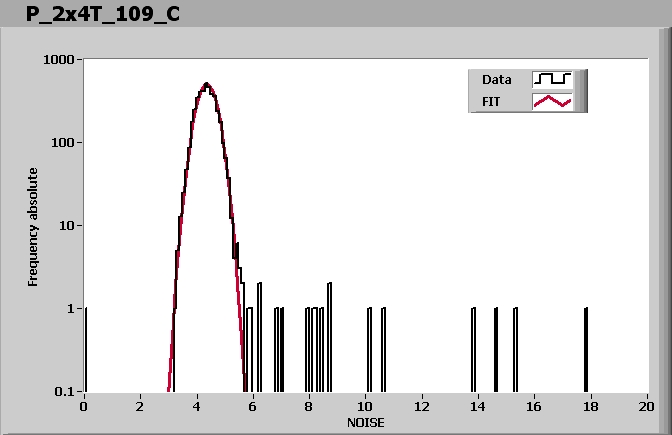

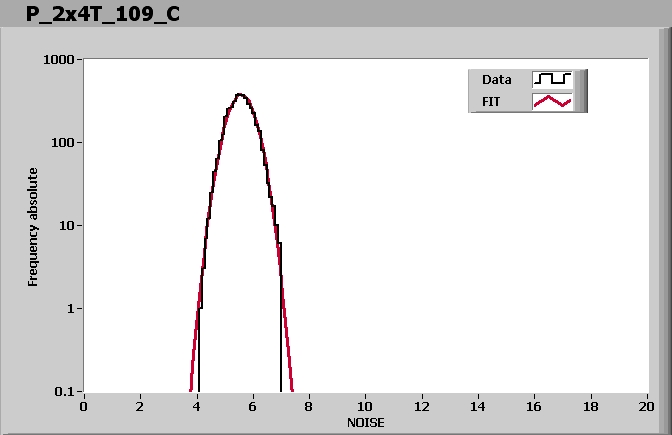

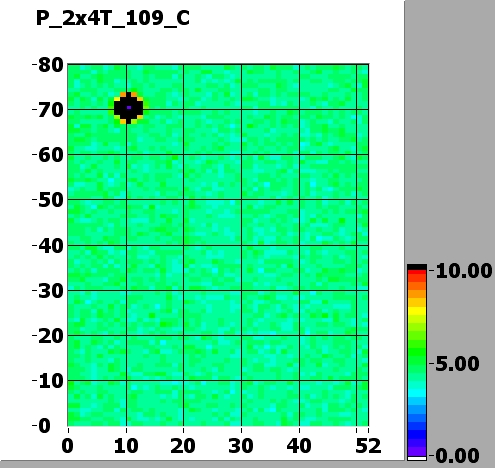

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 125 | 115 | 90 | 130 | 120 | 130 | 140 | 125 |
Vsf | 145 | 145 | 145 | 140 | 135 | 145 | 135 | 140 |
VoffsetOp | 75 | 60 | 100 | 90 | 75 | 65 | 60 | 105 |
VIbias_PH | 100 | 105 | 100 | 100 | 105 | 105 | 100 | 105 |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:21 AM
