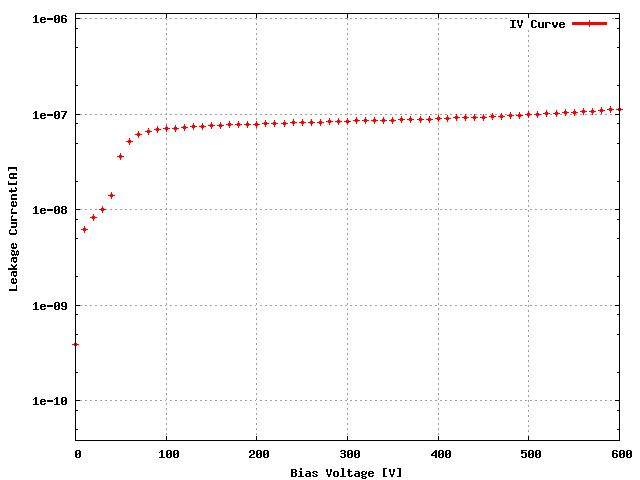

Sensor: S_2x4T_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W55_D3LQE4T	29C
ROC1	W55_D3LQE4T	29B
ROC2	W55_D3LQE4T	29A
ROC3	W55_D3LQE4T	28D
ROC4	W52_DOLQC8T	22C
ROC5	W52_DOLQC8T	22D
ROC6	W52_DOLQC8T	24A
ROC7	W52_DOLQC8T	24C

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data	152	142	142	162	138	148	146	144
Vana, VanaData	153	131	137	141	127	137	149	139
CalDelData and plots	86	90	86	86	102	95	75	81
VthrCompData and plots	84	88	89	81	73	80	90	83
TestDdata ,TestD Plots	1	0	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0	3	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

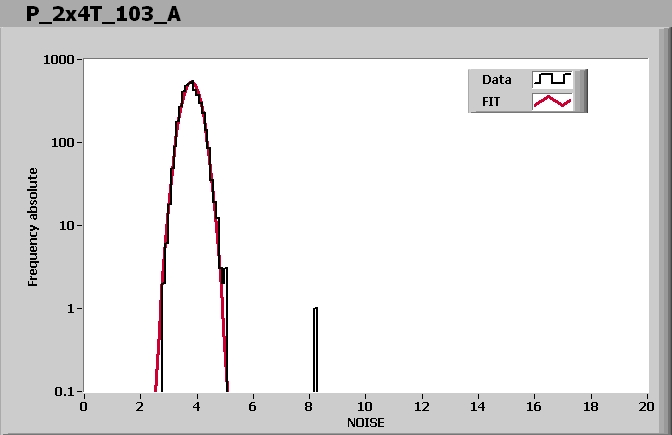

ROC0 NOISE			MEAN = 3.804625 SIGMA = 0.309416
ROC1 NOISE			MEAN = 4.117611 SIGMA = 0.341470
ROC2 NOISE			MEAN = 4.135592 SIGMA = 0.329385

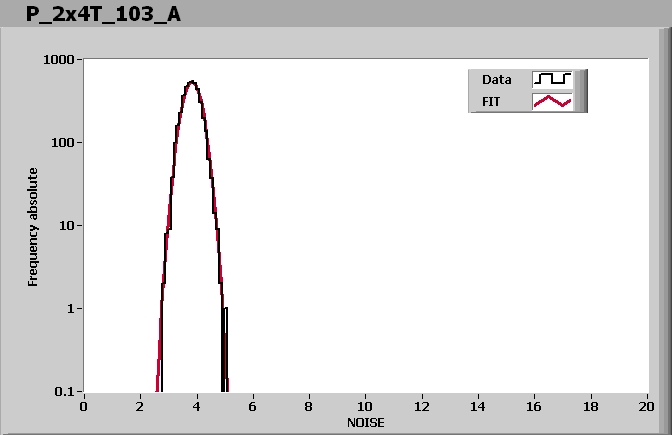

ROC3 NOISE			MEAN = 3.828953 SIGMA = 0.304715

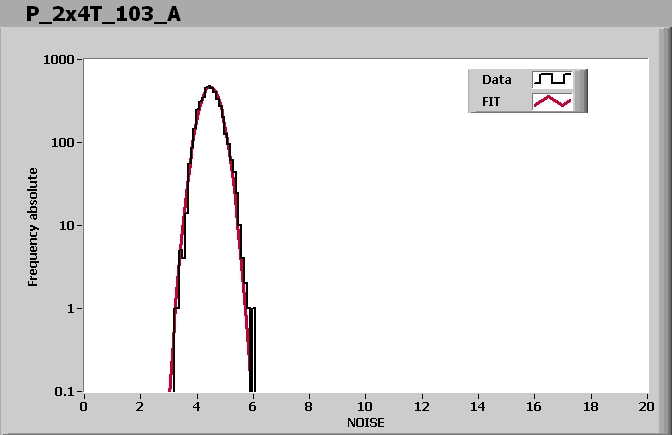

ROC4 NOISE			MEAN = 4.476409 SIGMA = 0.352412

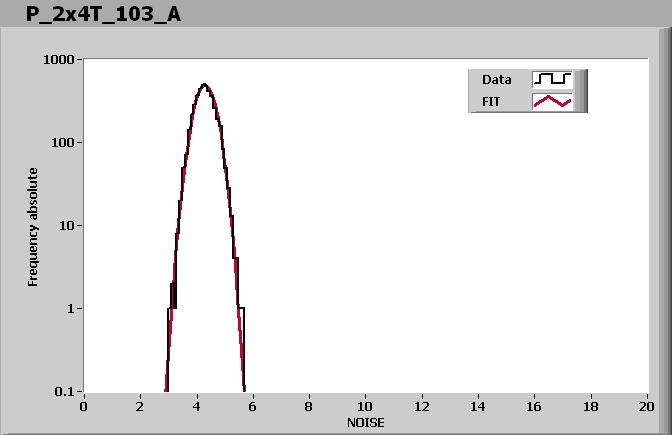

ROC5 NOISE			MEAN = 4.287787 SIGMA = 0.337811
ROC6 NOISE			MEAN = 4.450763 SIGMA = 0.345273
ROC7 NOISE			MEAN = 4.432256 SIGMA = 0.358905

Comment (if any):

End testing time: 1:30 PM
