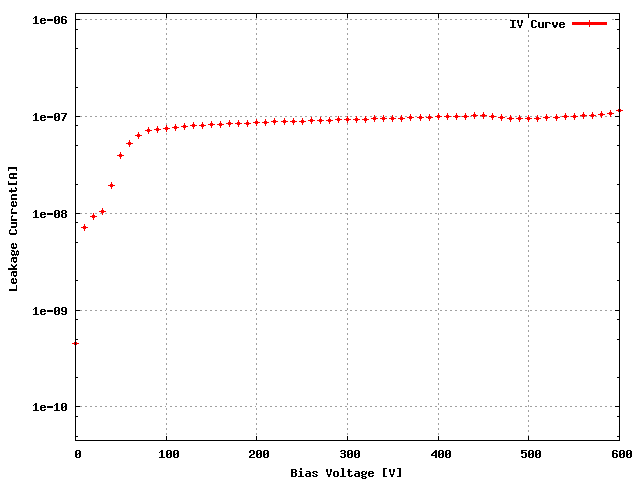

Sensor: S_2x4T_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W29_X64K5ST | 47A |
ROC1 | W29_X64K5ST | 46C |
ROC2 | W29_X64K5ST | 46A |
ROC3 | W29_X64K5ST | 44B |
ROC4 | W29_X64K5ST | 21C |
ROC5 | W29_X64K5ST | 22A |
ROC6 | W29_X64K5ST | 22B |
ROC7 | W29_X64K5ST | 22C |
Ibias_DAC, Ibias_DAC Data | 152 | 138 | 142 | 126 | 126 | 154 | 144 | 150 |
Vana, VanaData | 135 | 134 | 127 | 122 | 118 | 147 | 124 | 142 |
CalDelData and plots | 80 | 89 | 89 | 79 | 83 | 71 | 83 | 76 |
VthrCompData and plots | 82 | 72 | 82 | 67 | 75 | 79 | 75 | 77 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 3 | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

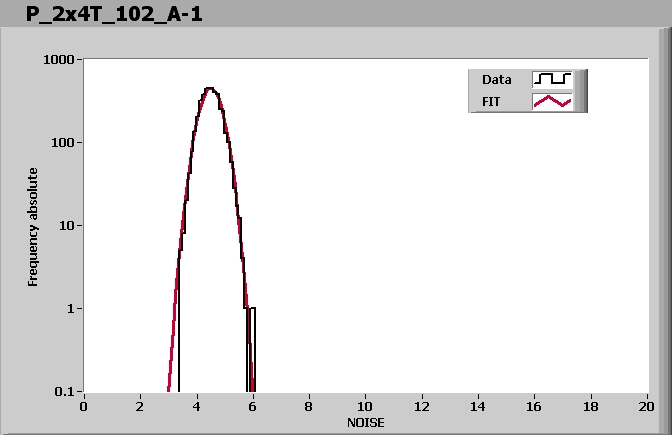

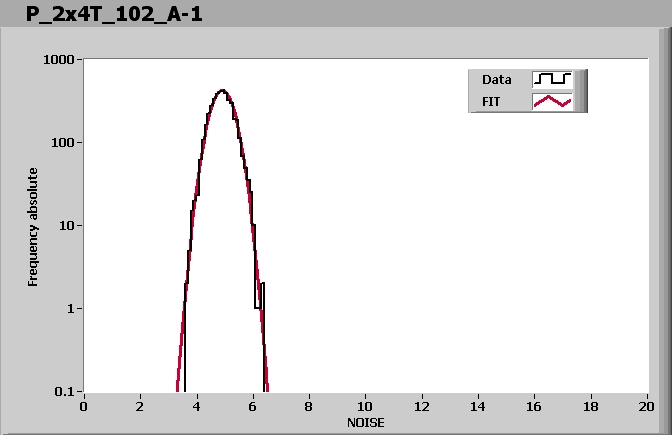

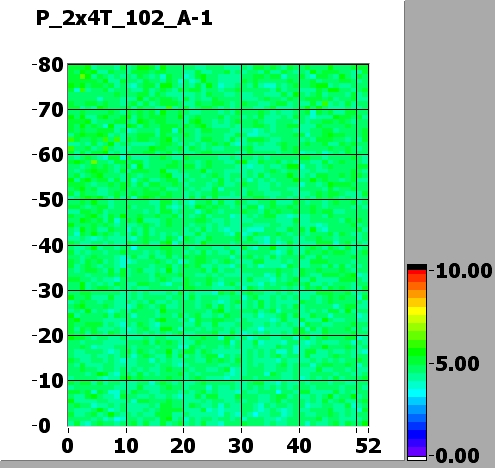

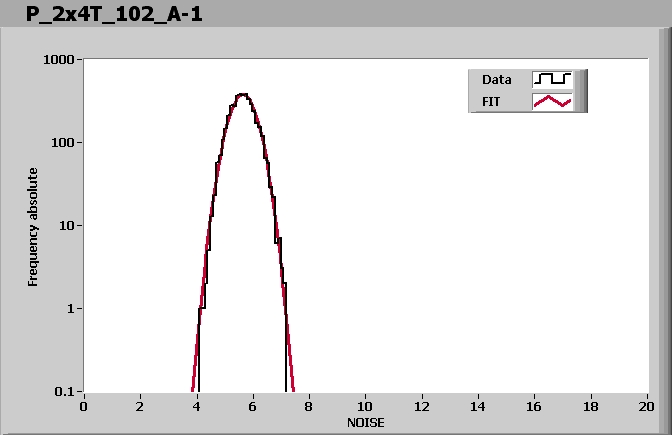

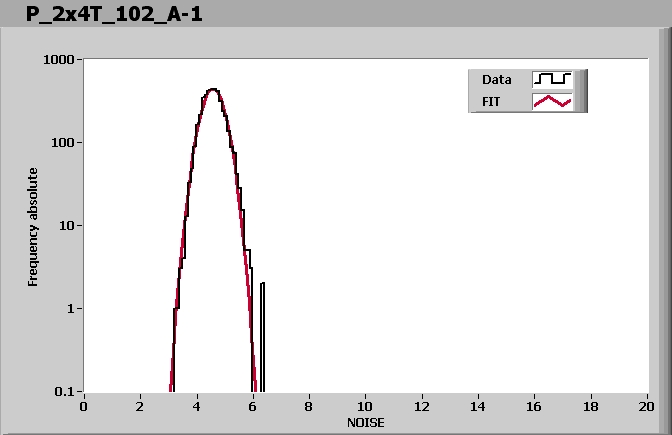

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 120 | 120 | 130 | 145 | 130 | 90 | 130 | 95 |
Vsf | 140 | 140 | 140 | 140 | 135 | 145 | 140 | 145 |
VoffsetOp | 95 | 90 | 85 | 65 | 75 | 105 | 75 | 85 |
VIbias_PH | 100 | 100 | 100 | 105 | 100 | 100 | 100 | 100 |
Comment (if any): Good.
This Device have been tested 1Times prior to this one and here are the links to the previous tests:End testing time: 2:59 PM
