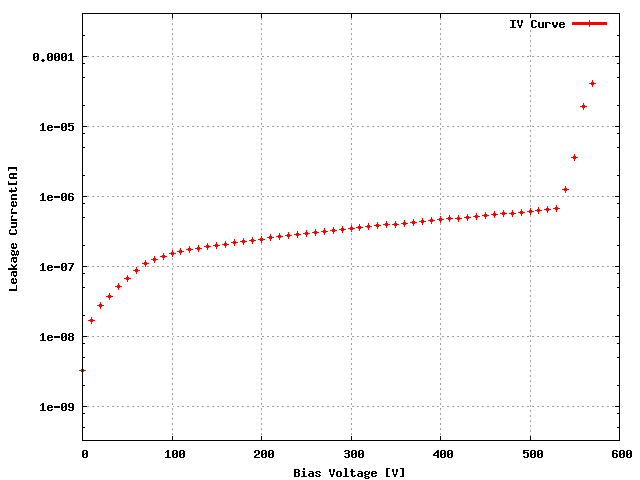

Sensor: S_2x4T_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W33_XC4K5LT | 46C |
ROC1 | W33_XC4K5LT | 46A |
ROC2 | W33_XC4K5LT | 45A |
ROC3 | W33_XC4K5LT | 44B |
ROC4 | W33_XC4K5LT | 20B |
ROC5 | W33_XC4K5LT | 20D |
ROC6 | W33_XC4K5LT | 21A |
ROC7 | W33_XC4K5LT | 21B |
Ibias_DAC, Ibias_DAC Data | 140 | 146 | 126 | 128 | 124 | 128 | 136 | 138 |
Vana, VanaData | 138 | 156 | 124 | 124 | 108 | 133 | 131 | 138 |
CalDelData and plots | 89 | 82 | 95 | 87 | 90 | 84 | 72 | 90 |
VthrCompData and plots | 78 | 91 | 63 | 63 | 64 | 69 | 88 | 74 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 2 | 3 | 12 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 4 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

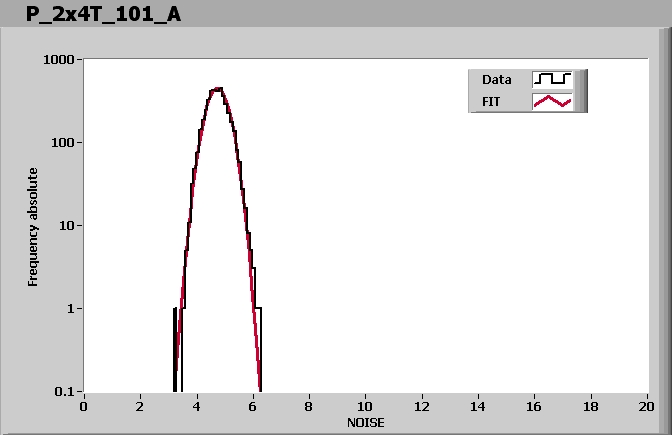

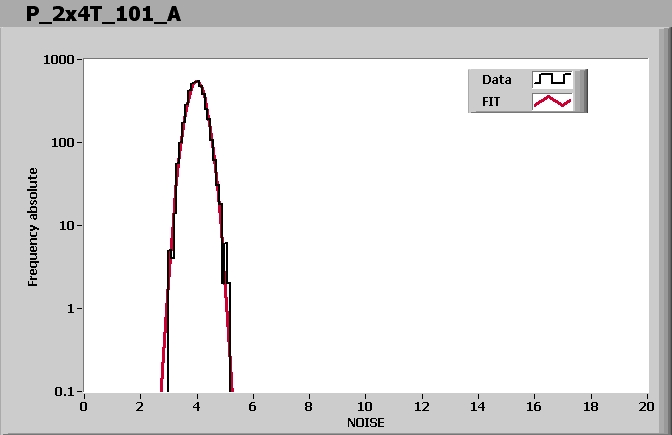

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 110 | 100 | 120 | 110 | 195 | 100 | 120 | 100 |
Vsf | 140 | 150 | 135 | 135 | 130 | 140 | 140 | 140 |
VoffsetOp | 100 | 125 | 80 | 70 | 50 | 65 | 100 | 110 |
VIbias_PH | 100 | 100 | 95 | 100 | 100 | 100 | 100 | 100 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:37 AM
