![[IMAGE] of](P_2x4T_099_A_IV.jpg)

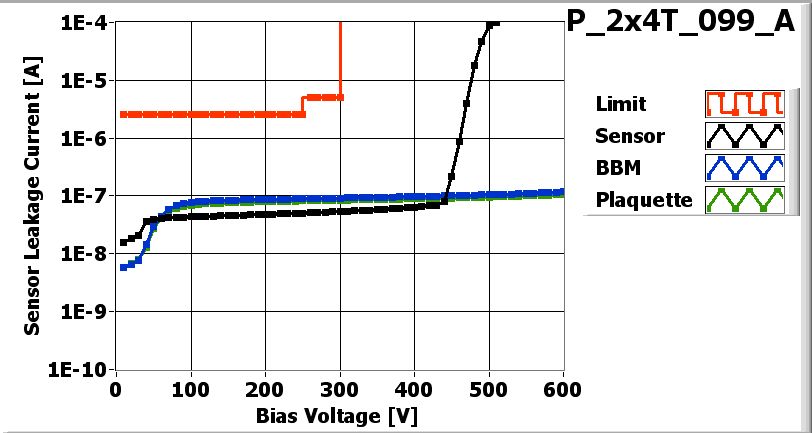

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4T_099_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 1/31/2007
| Part | ID |
|---|---|
| BBM | BBM_099-2x4T |
| VHDI | 2x4_427 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 37B |
| ROC1 | W28_X54K5TT | 37A |
| ROC2 | W28_X54K5TT | 36D |
| ROC3 | W28_X54K5TT | 36B |
| ROC4 | W28_X54K5TT | 17A |
| ROC5 | W28_X54K5TT | 17D |
| ROC6 | W28_X54K5TT | 18B |
| ROC7 | W28_X54K5TT | 18D |
Inspected by Lockwood Gale on date 2/2/2007
| LR_dev | 0.115 |
| LL_dev | 0.112 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 2/2/2007 by Lockwood Gale
P_2x4T_099_Aon 2/5/2007 11:15 AM
P_2x4T_099_Aon 2/5/2007 11:15 AM
PLAQUETTE TESTED on 2007-02-05 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 144 | 144 | 142 | 144 | 142 | 128 | 134 | 140 | |
| Vana | 146 | 142 | 145 | 140 | 151 | 135 | 131 | 127 | |
| Cal_Del | 85 | 81 | 89 | 96 | 83 | 85 | 84 | 66 | |
| Vthrs_Comp | 77 | 84 | 78 | 81 | 88 | 74 | 80 | 84 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_099_A_Ibias-dac.jpg) |

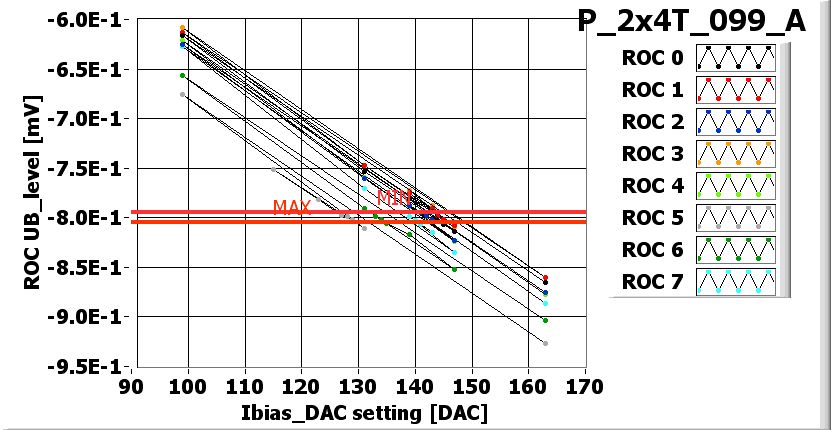

I_BIAS_DAC_XML-File |

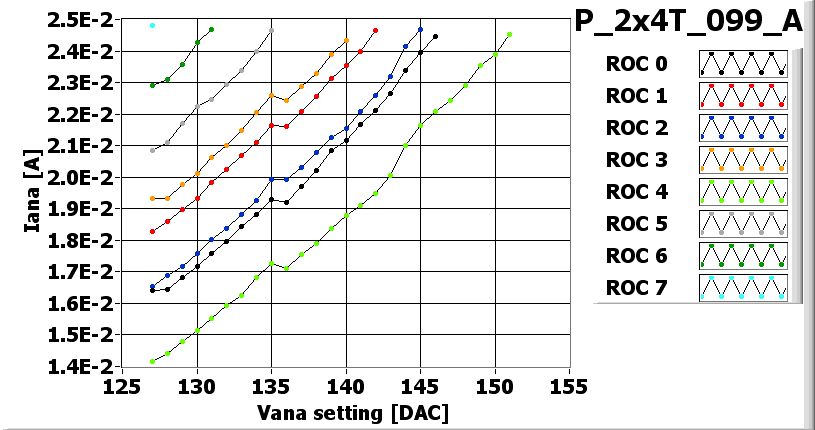

![[IMAGE] of](P_2x4T_099_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_099_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_099_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_099_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_099_Ano-bump-light.jpg) |
LIGHT_XML-File |

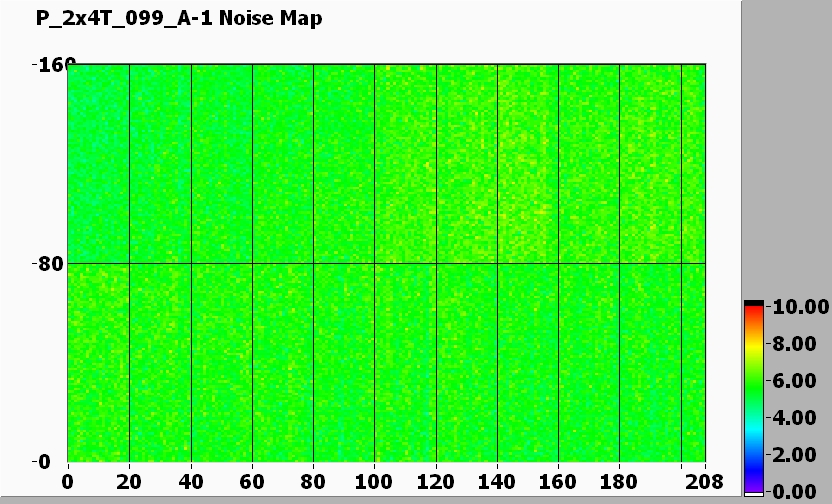

Noise MAP
![[IMAGE] of](P_2x4T_099_A-1-100-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_099_A-1-100-efficiency.jpg)

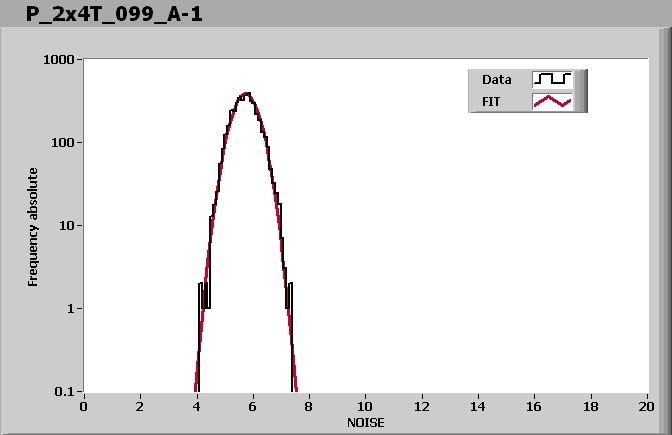

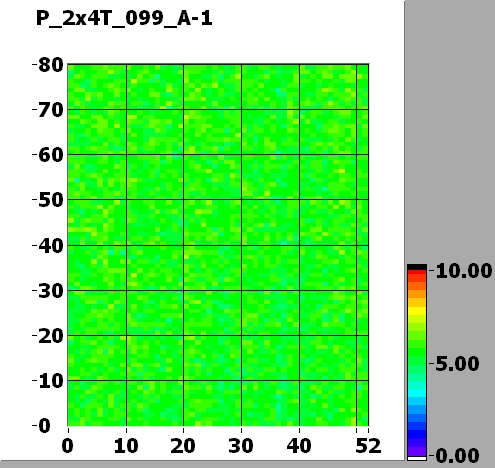

| ROC0 NOISE | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC0-HISTO.jpg) | MEAN = 5.727677SIGMA = 0.439425 |
| ROC1 NOISE | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC1-HISTO.jpg) | MEAN = 5.652180SIGMA = 0.435224 |

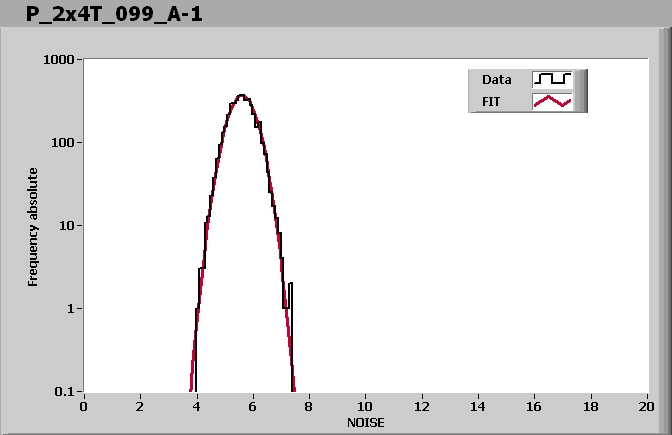

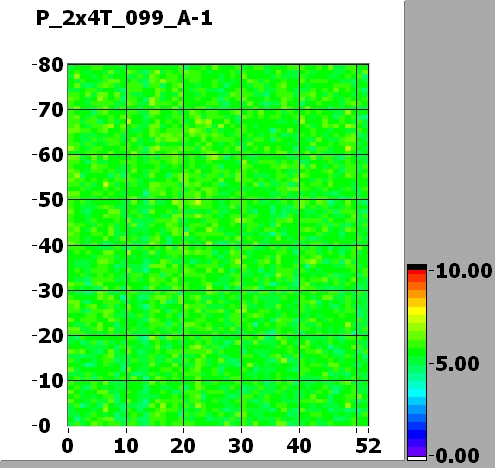

| ROC2 NOISE | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC2-HISTO.jpg) | MEAN = 5.607972SIGMA = 0.454072 |
| ROC3 NOISE | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC3-HISTO.jpg) | MEAN = 5.517657SIGMA = 0.423565 |

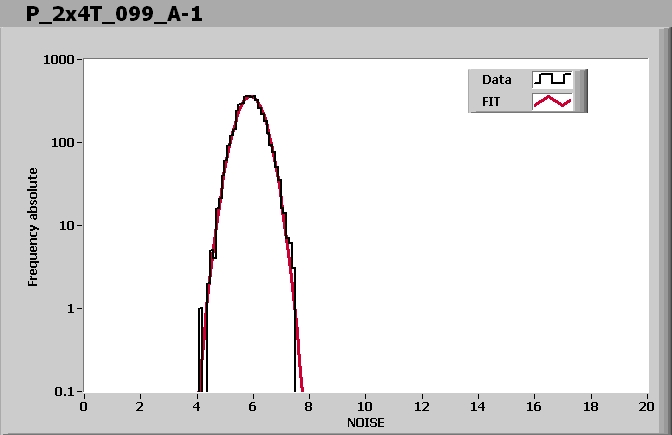

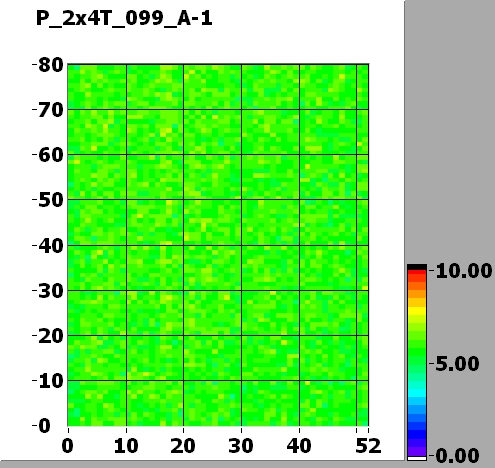

| ROC4 NOISE | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC4-HISTO.jpg) | MEAN = 5.905379SIGMA = 0.454810 |

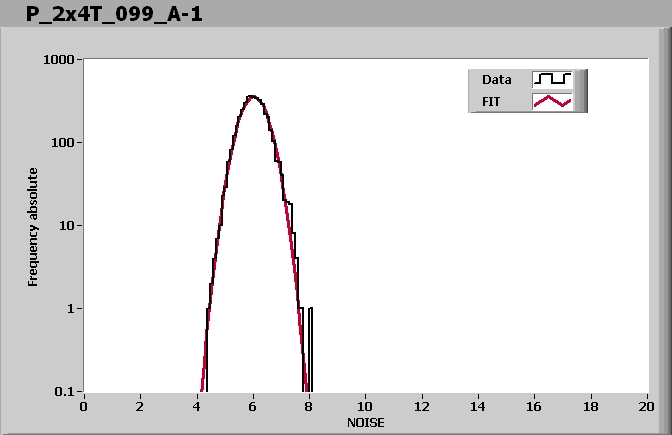

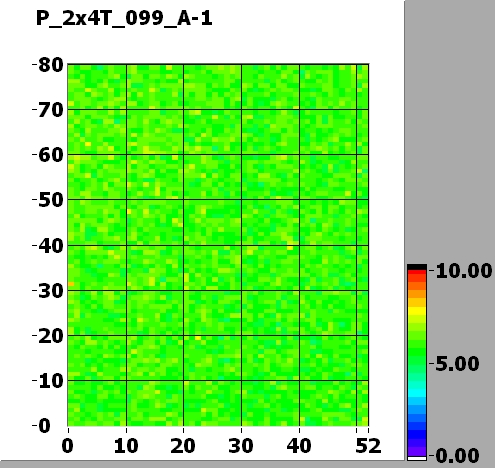

| ROC5 NOISE | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC5-MAP.jpg) | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC5-HISTO.jpg) | MEAN = 6.025322SIGMA = 0.461167 |

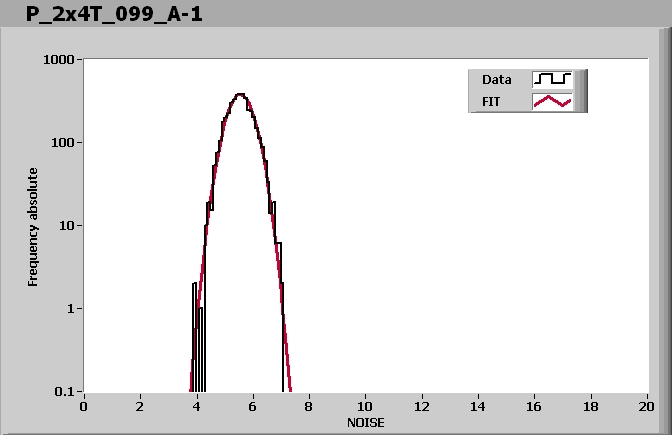

| ROC6 NOISE | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC6-MAP.jpg) | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC6-HISTO.jpg) | MEAN = 5.541260SIGMA = 0.436545 |

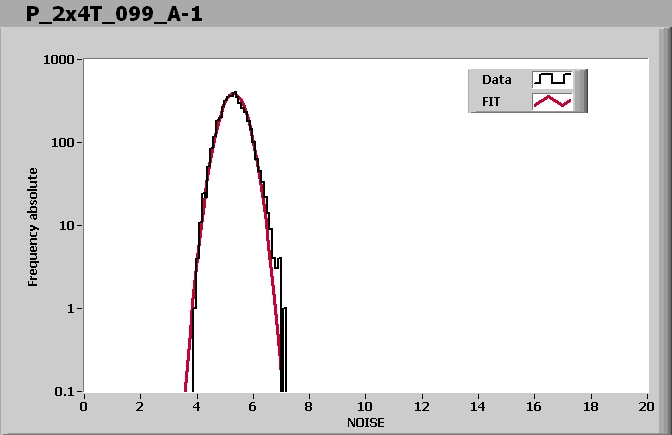

| ROC7 NOISE | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC7-MAP.jpg) | ![[IMAGE] of](P_2x4T_099_A-1-100-noise-ROC7-HISTO.jpg) | MEAN = 5.307171SIGMA = 0.426121 |

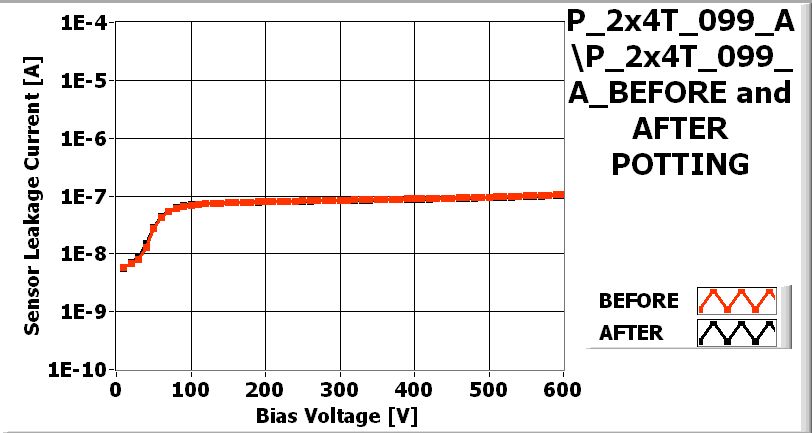

PLAQUETTE READY TO BE POTTED
