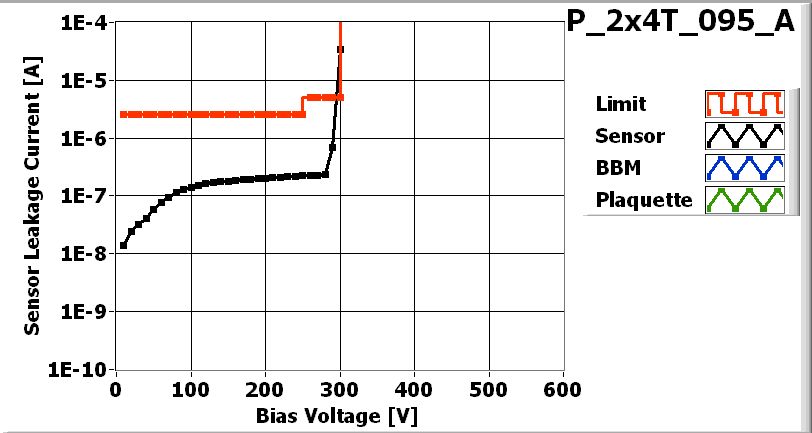

![[IMAGE] of](P_2x4T_095_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 300 V |

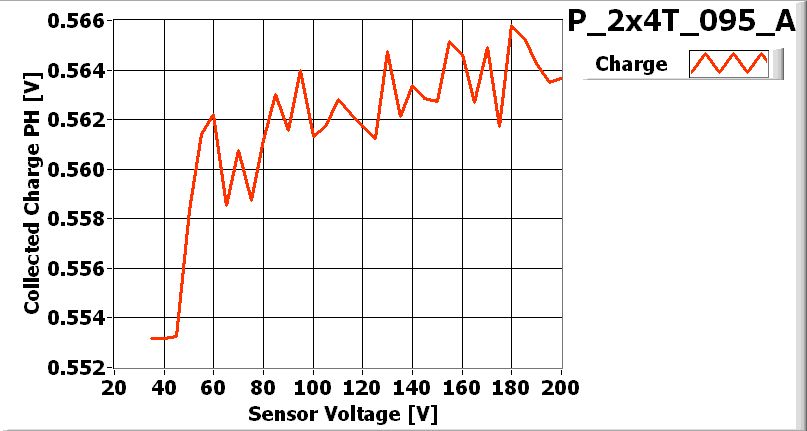

![[IMAGE] of](P_2x4T_095_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 75 V |
| Operational Voltage 115 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_095-2x4T |
| VHDI | 2x4_371 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X74JP0T | 26D |
| ROC1 | X74JP0T | 26C |
| ROC2 | X74JP0T | 26B |
| ROC3 | X74JP0T | 26A |
| ROC4 | X74JP0T | 35A |
| ROC5 | X74JP0T | 35C |
| ROC6 | X74JP0T | 35D |
| ROC7 | X74JP0T | 36A |
Inspected by Arndt Kirk on date 2006-07-11
| LR_dev | 0.078 |
| LL_dev | 0.093 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-11 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-18 by Bolla Gino
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 155 | 158 | 148 | 162 | 147 | 152 | 157 | 156 | |
| Vana | 133 | 132 | 124 | 130 | 128 | 124 | 138 | 254 | |
| Cal_Del | 84 | 81 | 79 | 91 | 79 | 72 | 84 | 0 | |
| Vthrs_Comp | 89 | 90 | 73 | 68 | 77 | 87 | 73 | 0 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

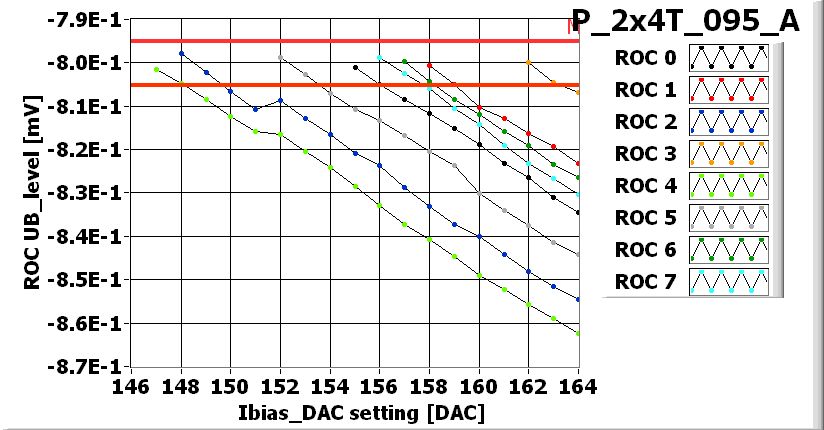

![[IMAGE] of](P_2x4T_095_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

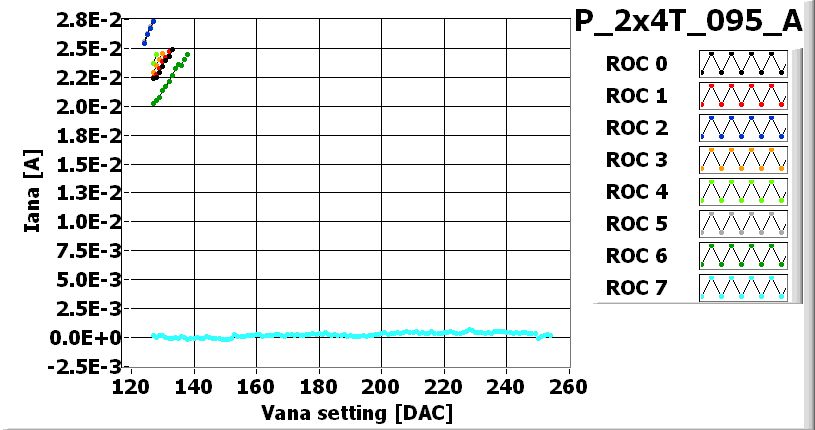

![[IMAGE] of](P_2x4T_095_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_095_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_095_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_095_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_095_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-18
