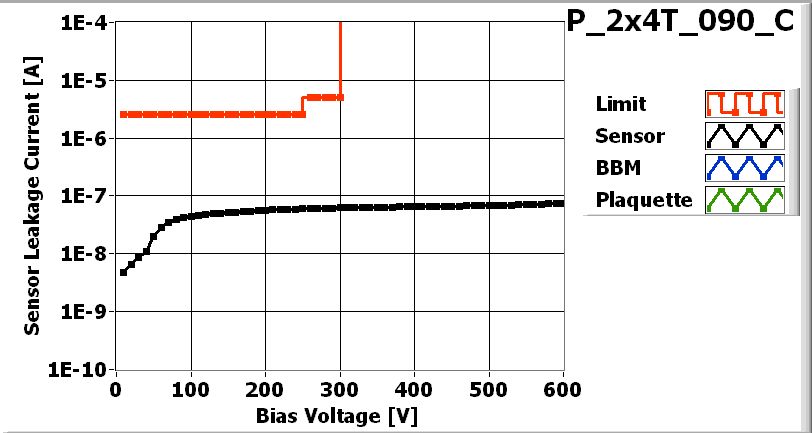

![[IMAGE] of](P_2x4T_090_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4T_090_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_090-2x4T |
| VHDI | 2x4_539 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XK4K3ET | 29B |
| ROC1 | XK4K3ET | 29A |
| ROC2 | XK4K3ET | 28A |
| ROC3 | XK4K3ET | 28B |
| ROC4 | XK4K3ET | 25B |
| ROC5 | XK4K3ET | 26A |
| ROC6 | XK4K3ET | 26B |
| ROC7 | XK4K3ET | 27A |
Inspected by Arndt Kirk on date 2006-08-17
| LR_dev | 0.036 |
| LL_dev | 0.021 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-17 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-18 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 148 | 163 | 167 | 161 | 156 | 161 | 148 | 170 | |
| Vana | 117 | 134 | 129 | 138 | 138 | 133 | 116 | 142 | |
| Cal_Del | 84 | 72 | 89 | 91 | 83 | 81 | 85 | 84 | |
| Vthrs_Comp | 80 | 87 | 82 | 85 | 76 | 84 | 70 | 75 | |
| Unbumped | 3 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 3 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_090_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

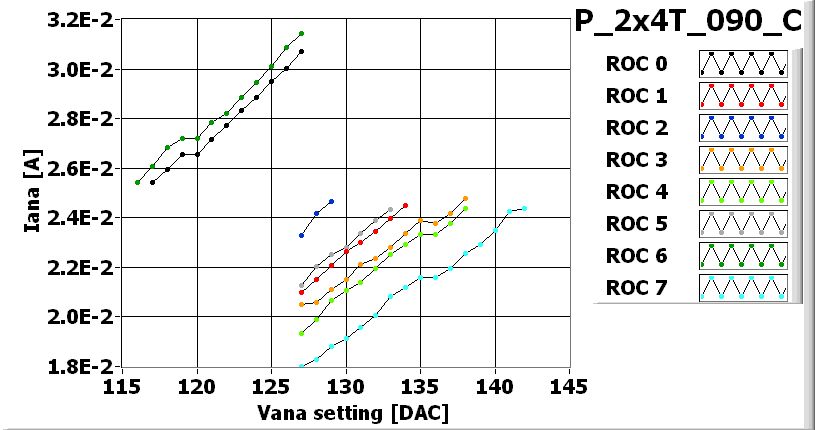

![[IMAGE] of](P_2x4T_090_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_090_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_090_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_090_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_090_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-23
