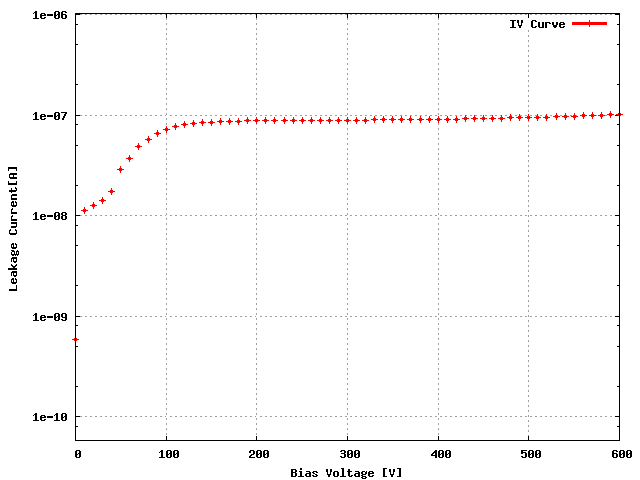

Sensor: S_2x4T_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W21_XA4KFIT | 05B |
ROC1 | W21_XA4KFIT | 61B |
ROC2 | W21_XA4KFIT | 76C |
ROC3 | W21_XA4KFIT | 76B |
ROC4 | W21_XA4KFIT | 41B |
ROC5 | W21_XA4KFIT | 41C |
ROC6 | W21_XA4KFIT | 41D |
ROC7 | W21_XA4KFIT | 42A |
Ibias_DAC, Ibias_DAC Data | 141 | 144 | 151 | 143 | 143 | 137 | 139 | 147 |
Vana, VanaData | 104 | 127 | 146 | 138 | 131 | 133 | 140 | 135 |
CalDelData and plots | 80 | 83 | 84 | 88 | 72 | 87 | 82 | 72 |
VthrCompData and plots | 75 | 78 | 85 | 71 | 80 | 71 | 80 | 73 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 4160 | 4076 | 4072 | 4083 | 4160 | 4076 | 4068 | 4085 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | BAD | BAD | BAD | BAD | BAD | BAD | BAD | BAD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Decoding bad everywhere except all first columns. TestD showed troubls too
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:29 PM
