P_2x4T_083

P_2x4T_083_A

Parts committed by Bolla Gino on date 11/3/2006

Part	ID
BBM	BBM_083-2x4T
VHDI	2x4_255

ROC ROC wafer Label

ROC0 W18_XJ4K3FT 34D

ROC1 W18_XJ4K3FT 04A

ROC2 W18_XJ4K3FT 34A

ROC3 W18_XJ4K3FT 33D

ROC4 W18_XJ4K3FT 12D

ROC5 W18_XJ4K3FT 13A

ROC6 W18_XJ4K3FT 13B

ROC7 W18_XJ4K3FT 13C

ROC	ROC wafer	Label
ROC0	W18_XJ4K3FT	34D
ROC1	W18_XJ4K3FT	04A
ROC2	W18_XJ4K3FT	34A
ROC3	W18_XJ4K3FT	33D
ROC4	W18_XJ4K3FT	12D
ROC5	W18_XJ4K3FT	13A
ROC6	W18_XJ4K3FT	13B
ROC7	W18_XJ4K3FT	13C

Inspected by Arndt Kirk on date 11/10/2006

LR_dev 0.030

LL_dev 0.035

FINAL COMMENT by Arndt Kirk No assembly problems. No wirebond problem.

PLAQUETTE made READY for testing on 11/10/2006 by Arndt Kirk

PLAQUETTE TESTED on 2006-11-13 by Isaac Childres

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7

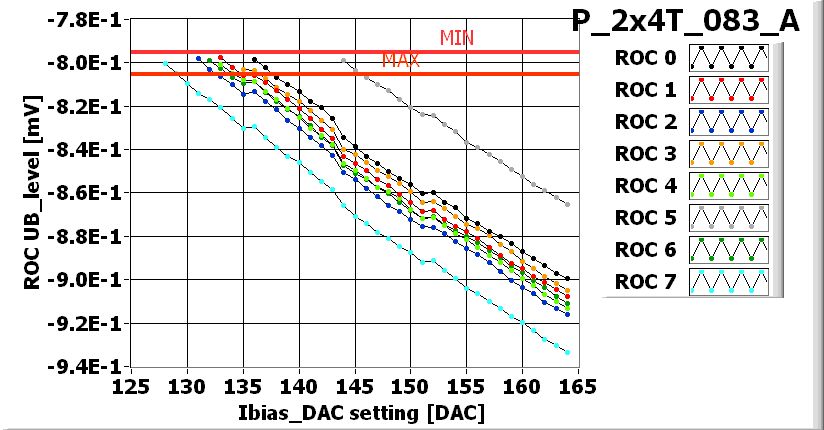

Ibias_DAC	136	133	131	135	133	144	132	128

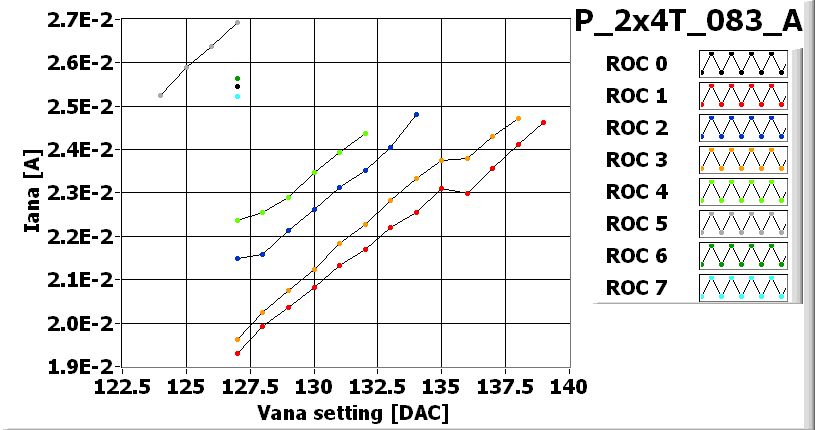

Vana	127	139	134	138	132	124	127	127
Cal_Del	79	82	87	94	98	73	78	100
Vthrs_Comp	67	92	66	71	73	73	64	75
Unbumped	0	1	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	1	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-11-14

Plaquette assigned to panel P4R_011
