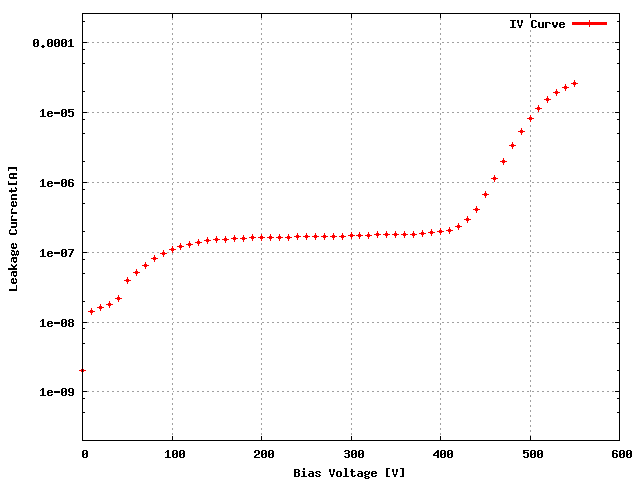

Sensor: S_2x4T_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W32_XA4K5NT | 76B |
ROC1 | W32_XA4K5NT | 41A |
ROC2 | W32_XA4K5NT | 75D |
ROC3 | W32_XA4K5NT | 75B |
ROC4 | W32_XA4K5NT | 45B |
ROC5 | W32_XA4K5NT | 45D |
ROC6 | W32_XA4K5NT | 46B |
ROC7 | W32_XA4K5NT | 46C |
Ibias_DAC, Ibias_DAC Data | 151 | 123 | 136 | 137 | 130 | 129 | 145 | 157 |
Vana, VanaData | 133 | 123 | 128 | 125 | 124 | 132 | 131 | 140 |
CalDelData and plots | 76 | 83 | 79 | 86 | 99 | 92 | 83 | 87 |
VthrCompData and plots | 82 | 80 | 71 | 77 | 62 | 73 | 80 | 79 | Depletion Voltage is -52 and suggested operational voltage is -92
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Perfect plaquette.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:42 PM
