![[IMAGE] of](P_2x4T_078_A_IV.jpg)

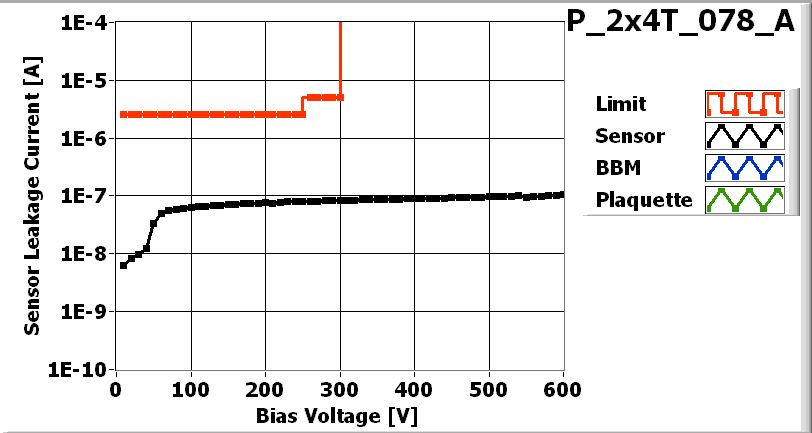

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4T_078_A_LASER.jpg)

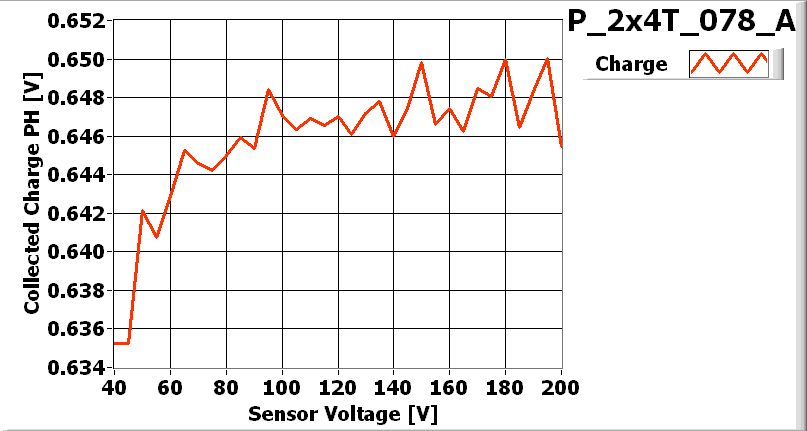

| LASER_XML-File |
| Depletion Voltage 65 V |
| Operational Voltage 105 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_078-2x4T |
| VHDI | 2x4_524 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XX4JPAT | 61A |
| ROC1 | XX4JPAT | 76D |
| ROC2 | XX4JPAT | 76A |
| ROC3 | XX4JPAT | 75D |
| ROC4 | XX4JPAT | 54D |
| ROC5 | XX4JPAT | 55B |
| ROC6 | XX4JPAT | 55C |
| ROC7 | XX4JPAT | 55D |
Inspected by Arndt Kirk on date 2006-07-17
| LR_dev | 0.056 |
| LL_dev | 0.049 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-17 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-17 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 152 | 165 | 171 | 159 | 151 | 177 | 149 | 181 | |
| Vana | 138 | 104 | 140 | 143 | 127 | 106 | 124 | 126 | |
| Cal_Del | 79 | 101 | 88 | 77 | 78 | 85 | 94 | 85 | |
| Vthrs_Comp | 98 | 64 | 81 | 80 | 88 | 80 | 78 | 85 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_078_A_Ibias-dac.jpg) |

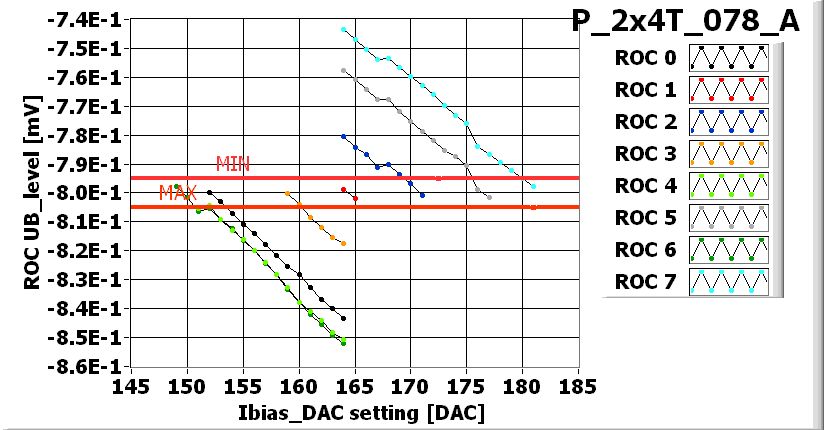

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4T_078_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_078_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_078_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_078_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_078_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-20
