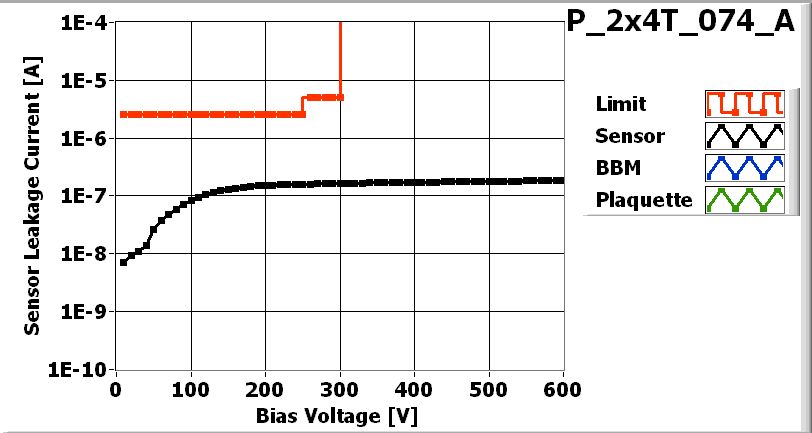

![[IMAGE] of](P_2x4T_074_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

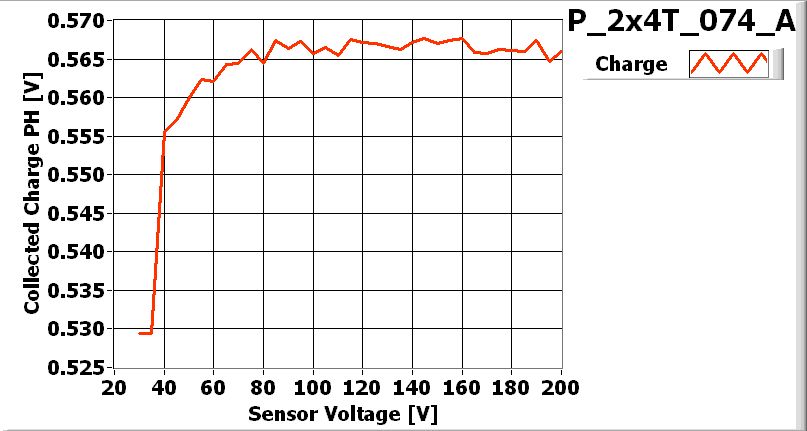

![[IMAGE] of](P_2x4T_074_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 45 V |
| Operational Voltage 85 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_074-2x4T |
| VHDI | 2x4_353 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X14JP6T | 44A |
| ROC1 | X14JP6T | 44B |
| ROC2 | X14JP6T | 43C |
| ROC3 | X14JP6T | 30C |
| ROC4 | X14JP6T | 17C |
| ROC5 | X14JP6T | 18A |
| ROC6 | X14JP6T | 18B |
| ROC7 | X14JP6T | 18C |
Inspected by Arndt Kirk on date 2006-07-07
| LR_dev | 0.022 |
| LL_dev | 0.022 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-07 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-07 by Stacy Kouba
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 182 | 178 | 157 | 155 | 147 | 176 | 172 | 164 | |
| Vana | 162 | 144 | 128 | 129 | 113 | 128 | 138 | 126 | |
| Cal_Del | 69 | 69 | 97 | 94 | 90 | 89 | 75 | 85 | |
| Vthrs_Comp | 97 | 88 | 85 | 81 | 63 | 80 | 77 | 74 | |
| Unbumped | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

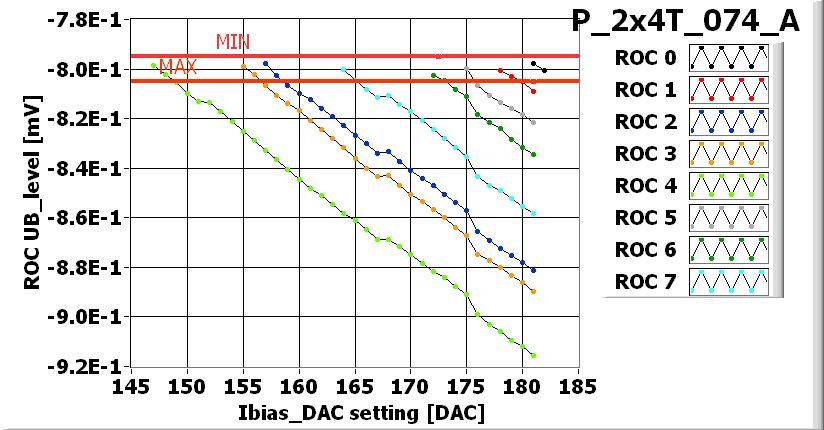

![[IMAGE] of](P_2x4T_074_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

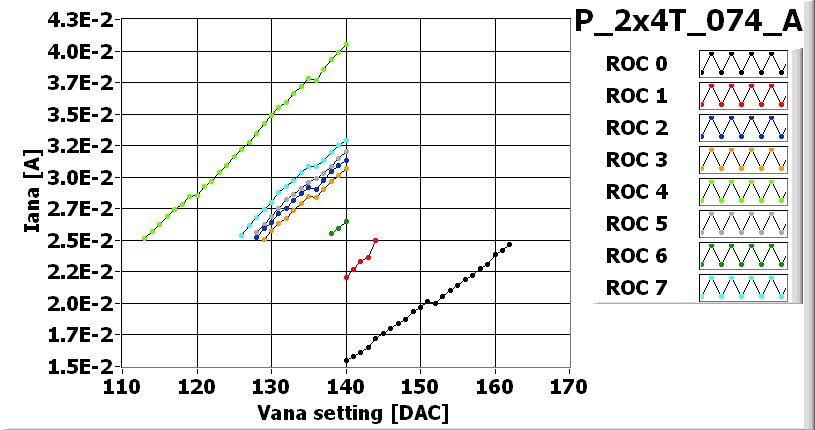

![[IMAGE] of](P_2x4T_074_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_074_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_074_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_074_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_074_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-11
