![[IMAGE] of](P_2x4T_063_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

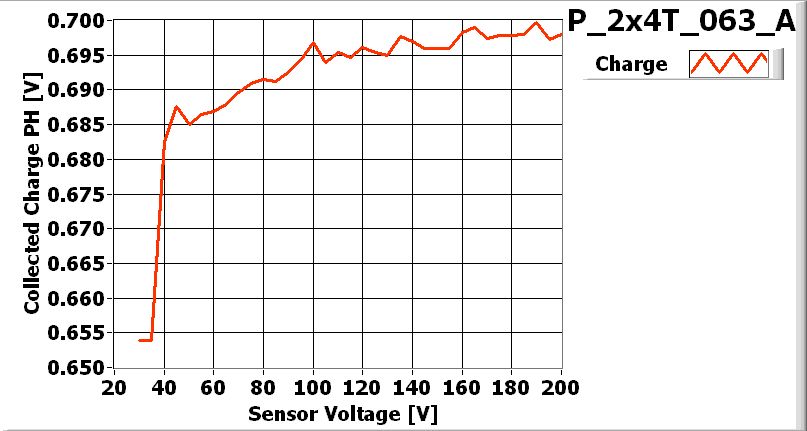

![[IMAGE] of](P_2x4T_063_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 90 V |
| Operational Voltage 140 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_063-2x4T |
| VHDI | 2x4_352 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X14JP6T | 24C |
| ROC1 | X14JP6T | 24B |
| ROC2 | X14JP6T | 24A |
| ROC3 | X14JP6T | 23D |
| ROC4 | X14JP6T | 12D |
| ROC5 | X14JP6T | 13A |
| ROC6 | X14JP6T | 13C |
| ROC7 | X14JP6T | 13D |
Inspected by Arndt Kirk on date 2006-06-16
| LR_dev | 0.012 |
| LL_dev | 0.037 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-06-16 by Arndt Kirk
PLAQUETTE TESTED on 2006-6-16 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 176 | 154 | 160 | 163 | 164 | 171 | 144 | 168 | |
| Vana | 125 | 117 | 123 | 129 | 133 | 124 | 122 | 129 | |
| Cal_Del | 85 | 89 | 74 | 99 | 100 | 90 | 108 | 82 | |
| Vthrs_Comp | 83 | 69 | 78 | 80 | 79 | 72 | 68 | 87 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_063_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4T_063_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_063_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_063_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_063_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_063_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-06-21
