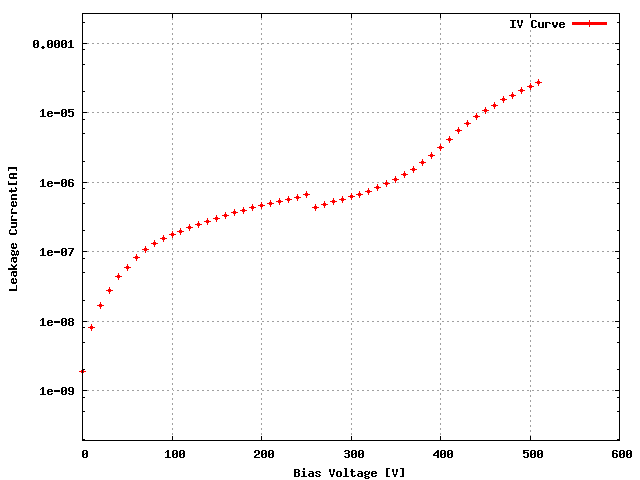

Sensor: S_2x4T_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XH4KFBT	23D
ROC1	XH4KFBT	14D
ROC2	XH4KFBT	17C
ROC3	XH4KFBT	29C
ROC4	XH4KFBT	14C
ROC5	XH4KFBT	18A
ROC6	XH4KFBT	38D
ROC7	XH4KFBT	15D

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	120	146	130	142	138	142	142	134
Vana, VanaData	114	133	132	131	126	128	116	126
CalDelData and plots	92	70	86	71	86	95	100	84
VthrCompData and plots	63	74	68	92	76	69	62	66
TestDdata ,TestD Plots	0	1	0	259	1	0	4	1
LightData ,Light Plots	0	1	0	376	1	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	BAD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	BAD	GOOD	GOOD	GOOD	GOOD

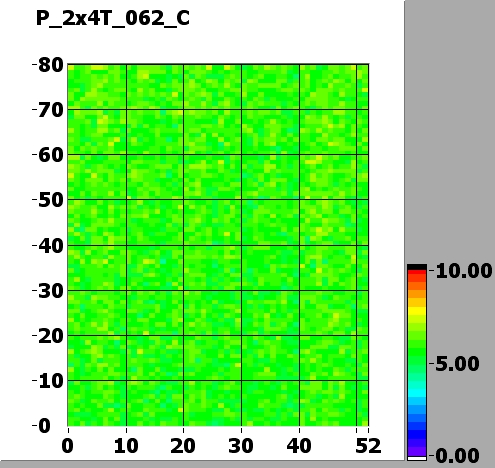

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

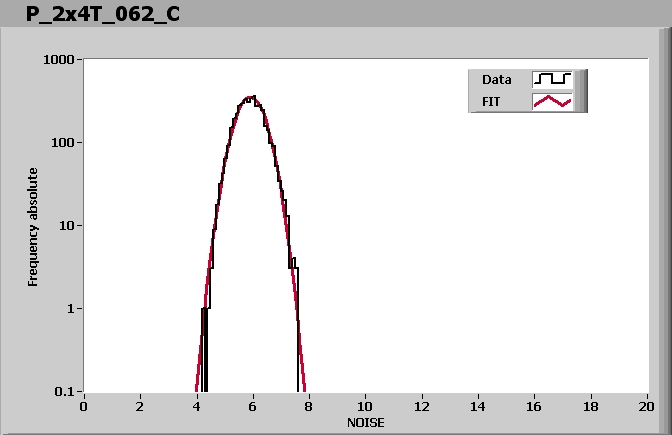

ROC0 NOISE			MEAN = 5.901148 SIGMA = 0.476186
ROC1 NOISE			MEAN = 4.989693 SIGMA = 0.381851
ROC2 NOISE			MEAN = 4.754904 SIGMA = 0.385446
ROC3 NOISE			MEAN = 4.252123 SIGMA = 0.332569

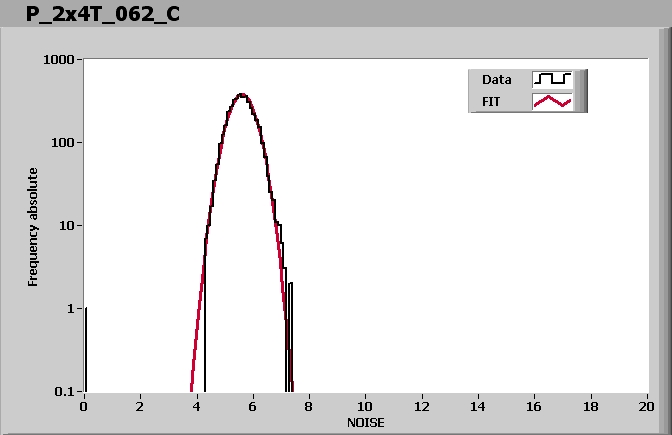

ROC4 NOISE			MEAN = 5.600362 SIGMA = 0.443272
ROC5 NOISE			MEAN = 4.844863 SIGMA = 0.391147

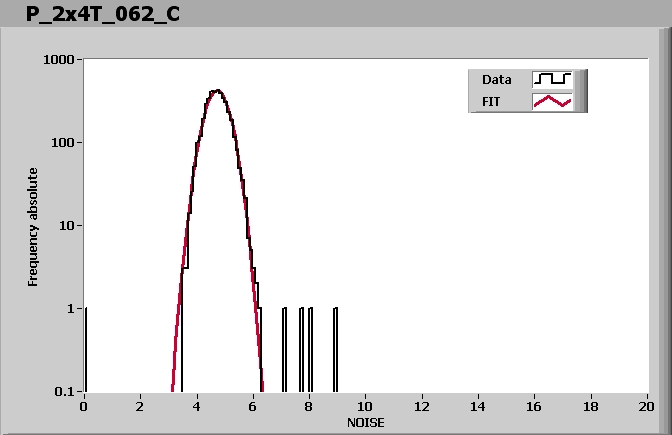

ROC6 NOISE			MEAN = 4.721208 SIGMA = 0.393488

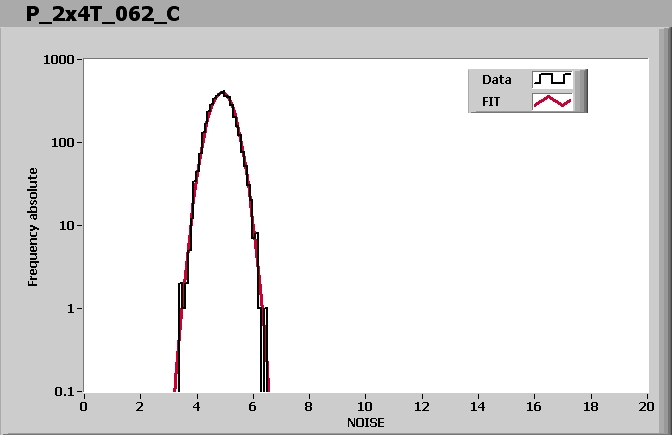

ROC7 NOISE			MEAN = 4.890153 SIGMA = 0.410309

Comment (if any): MANY-TOO-MANY BAD bumps

End testing time: 9:43 AM
